Description

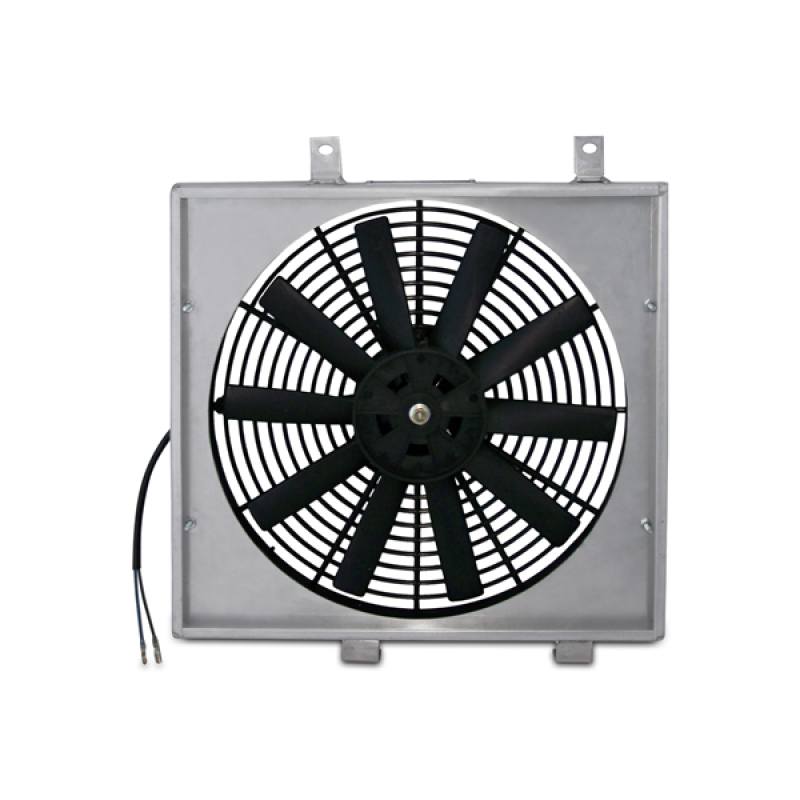

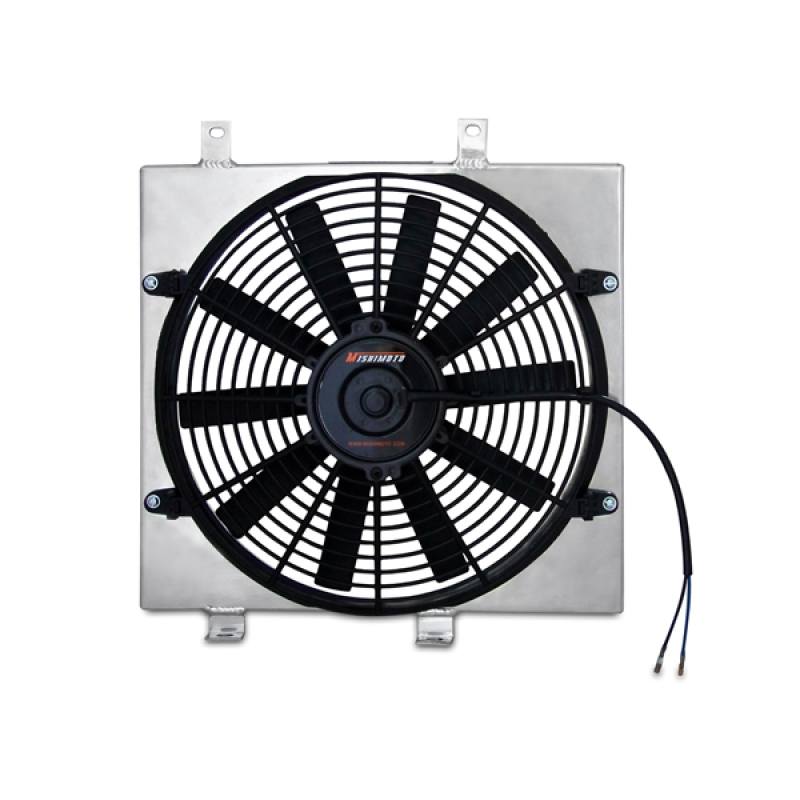

The Mishimoto MMFS-EVO-01 is a purpose-built aluminum fan shroud kit engineered specifically for the Mitsubishi Lancer Evolution 7, 8, and 9. Unlike a generic cooling accessory, this kit pairs a direct-fit aluminum shroud with a dedicated 14-inch slim electric fan rated for up to 1300 CFM of maximum airflow, giving Evo owners a genuine upgrade path away from the heavier factory shroud.
Mishimoto designed this Cooling system component to bolt in place of the restrictive OEM shroud while delivering significantly more airflow to the radiator and pulling excess heat away from the engine bay. Because the shroud itself is aluminum rather than the heavier factory plastic, the complete kit is lighter than the stock setup without sacrificing the shroud’s job of channeling air efficiently and shielding the fan blades from contact with other engine components. The included plug-in electric fan uses ten straight, black plastic blades and runs on an electrical (non-clutch) drive, making it a straightforward, self-contained replacement for enthusiasts building a more capable Mishimoto cooler setup around their Evo’s radiator.
Vehicle Applications
This fan shroud kit is built for the 2003-2006 Mitsubishi Lancer Evolution, and it also covers the 2005-2006 Evolution MR and 2005-2006 Evolution RS trims, plus the 2006 Evolution SE. These Evolution 7, 8, and 9 models share the CT9A chassis and 4G63T engine code that this shroud and fan combination is designed around. The kit is compatible with both OEM and Mishimoto radiators, though the fan may require additional wiring to complete installation, and vehicles equipped with a fan control module (PN 1355A408) will need that module custom-mounted for proper fan operation.
Features
- Direct-fit aluminum fan shroud designed for the Mitsubishi Lancer Evolution 7/8/9
- Includes one 14-inch slim electric fan with a plug-in electrical connection
- Fan features ten straight, black plastic blades for airflow
- Maximum airflow rating of 1300 CFM
- Lighter overall weight compared to the factory OEM fan shroud
- Shroud helps protect fan blades from contact with other engine components
- Includes all necessary mounting hardware
- Compatible with OEM and Mishimoto radiators (fan may require additional wiring)

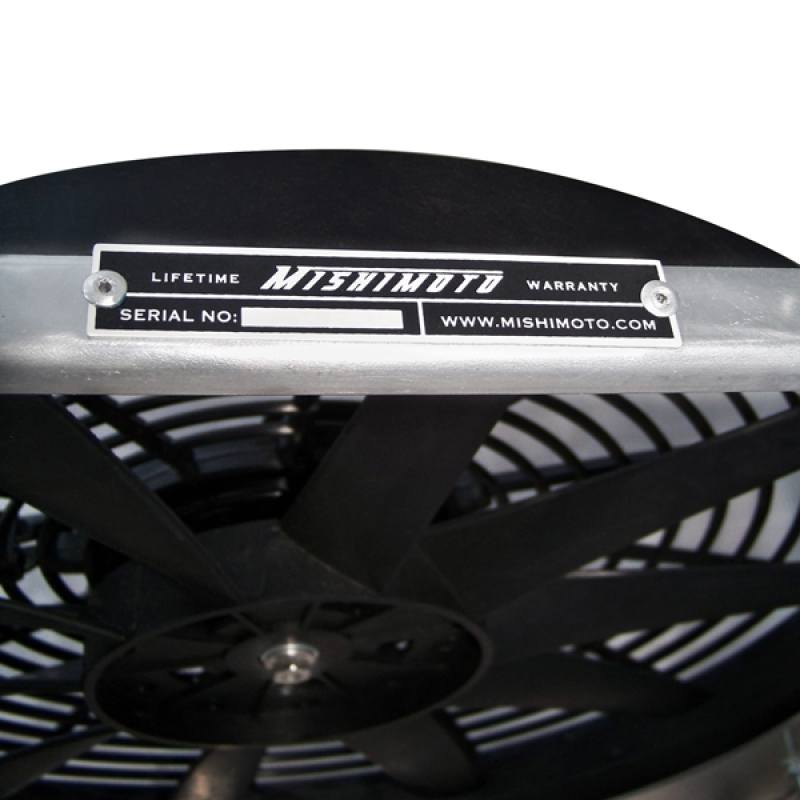

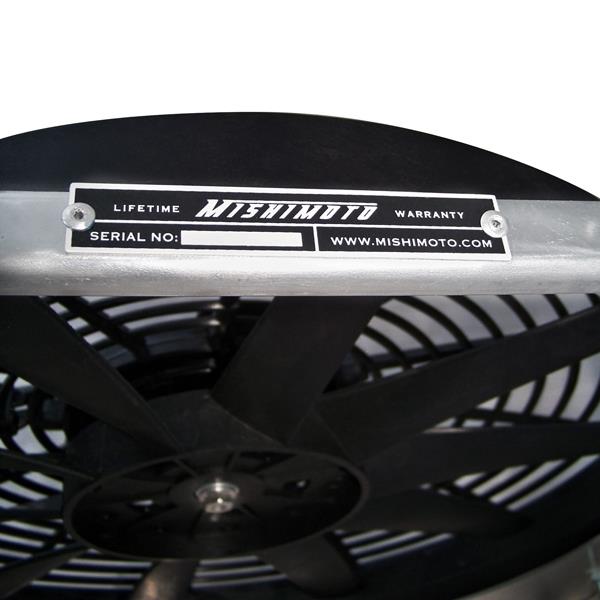

- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMFS-EVO-01
- Product Type: Cooling
- Shroud Material: Aluminum
- Housing Finish: Aluminum
- Grade Type: Performance
- Fan Diameter: 14 in
- Blade Quantity: 10
- Blade Material: Plastic
- Blade Type: Straight
- Blade Color: Black
- Maximum CFM: 1300
- Motor Included: Yes
- Electrical or Mechanical: Electrical
- Hardwired or Plug-In: Plug-In
- Mounting Hardware Included: Yes
- Width: 3.75 in
- Height: 17 in
- Length: 16 in
- Engine Code: 4G63T
- Chassis Code: CT9A
- Kit Includes: (1) Aluminum Fan Shroud, (1) 14-inch Slim Electric Fan, Mishimoto Lifetime Warranty
Frequently Asked Questions
Which vehicles does the Mishimoto MMFS-EVO-01 fan shroud kit fit?
This kit fits the 2003-2006 Mitsubishi Lancer Evolution, as well as the 2005-2006 Evolution MR, 2005-2006 Evolution RS, and 2006 Evolution SE trims.
Does the kit include a fan?
Yes, it includes one 14-inch slim electric fan with a plug-in electrical connection, ten straight black plastic blades, and a maximum airflow rating of 1300 CFM.
Is mounting hardware included?
Yes, all necessary mounting hardware is included with the kit.
Will this shroud work with my OEM radiator or does it require a Mishimoto radiator?
The kit is compatible with both OEM and Mishimoto radiators, though the fan may require additional wiring to install.
What is the shroud made of?
The shroud and housing are made of aluminum.
Is there a special note for vehicles with a fan control module?
Vehicles equipped with a fan control module (PN 1355A408) will require custom mounting of that module for proper fan operation.
