Description
The Mishimoto Baffled Oil Catch Can Kit (MMBCC-F80-15CBS) is purpose-built for the S55-powered BMW M3 and M4, tackling the turbocharged blow-by that came standard once BMW’s compact M cars went forced-induction in 2015. Built around Mishimoto’s patent-pending 2-Port Compact Baffled Oil Catch Can, this kit pairs a 50-micron bronze filter and internal baffle with a CNC-machined lid sized to match the factory CCV hose, so oil separation happens right where the crankcase vapors exit the engine.
As one of the more sought-after car engine parts among S55 owners, a baffled oil catch can addresses a problem inherent to many car engines that vent crankcase vapor back into the intake: oil droplets and contaminated fuel vapor riding along with that air. Mishimoto’s catch can is unheated, unlike many air-oil-separator systems, which allows low-octane oil vapor and contaminated fuel vapor to fully condense and stay trapped in the can rather than draining back into the oil pan. For anyone comparing components of an automobile engine that protect the intercooler, intake tract, and VANOS system, this catch can helps keep those parts of a car engine cleaner while helping maintain proper octane levels to reduce potential detonation.
Vehicle Applications
This kit is a direct fit for the S55-powered F80/F82/F83/F87 chassis: the 2015-2018 BMW M3, the 2015-2020 BMW M4 (including the 2016 M4 GTS and the 2018-2020 M4 CS), and the 2019-2020 BMW M2 Competition. The included direct-fit hoses and application-specific billet aluminum mounting bracket require no modification to the engine cover and locate the can in a serviceable position.
Features
- Direct fit for the 2015-2020 F8X BMW M3, M4, and M2 Competition
- Single 2-Port Compact Baffled Oil Catch Can separates oil particles using a 50-micron bronze filter
- Application-specific bracket mounts the can in a serviceable location
- Direct-fit hoses allow for installation with no modification to the engine cover
- Application-specific lid designed so fitting size matches CCV line size
- Billet 6061 aluminum sealed can
- Aluminum bracket available in 12 BMW-specific color-matching options or classic black
- Defends intercooler, intake system, and VANOS system from oil blow-by
- Helps maintain proper octane levels to reduce potential detonation
- Internal air diverter increases air turbulence to improve oil separation
- Filters and can are fully serviceable
- Backed by the Mishimoto Lifetime Warranty
Specifications

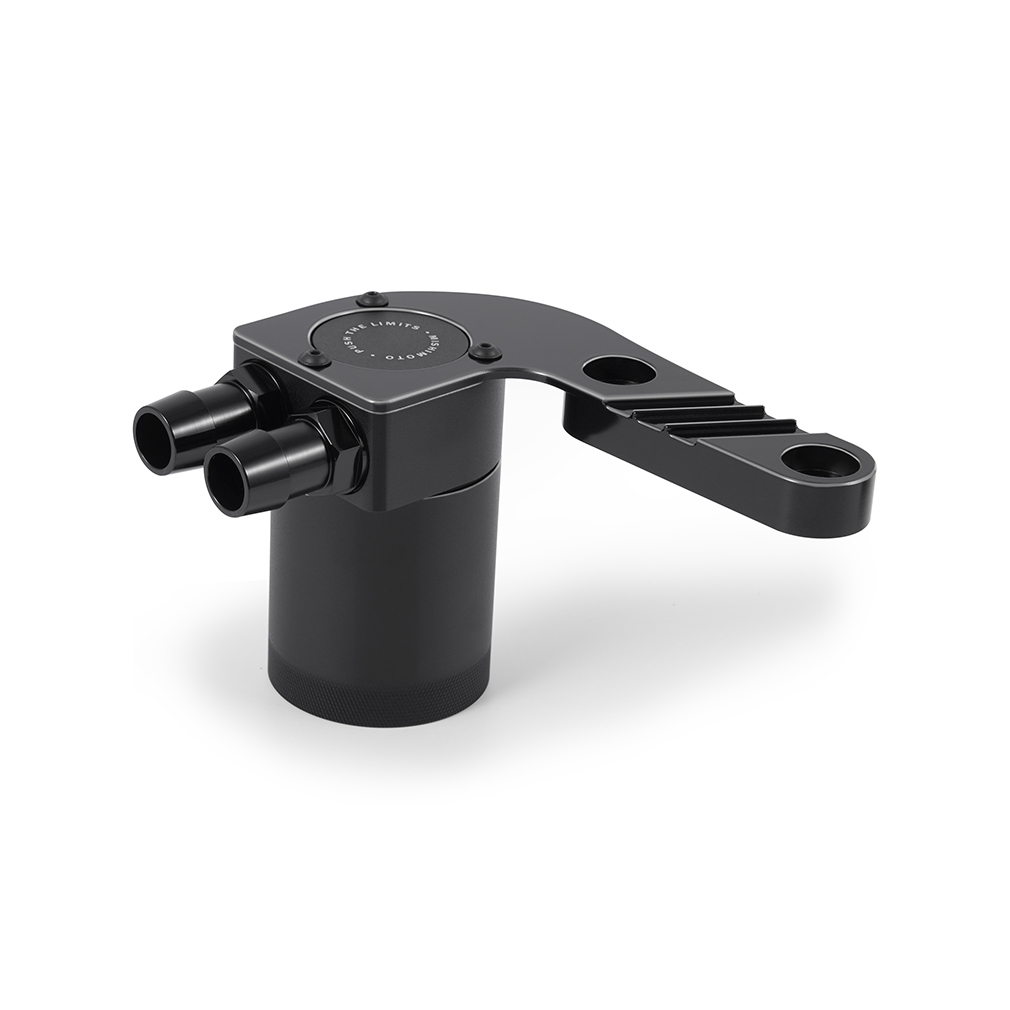

- Can Material: 6061-T6 Billet Aluminum
- Can Type: Twist Off
- Can Finish: Anodized
- Bracket Color: Black (12 BMW-specific color-matched options also available)
- Inlet Port Inside Diameter: 0.6 in
- Outlet Port Inside Diameter: 0.6 in
- Can Outside Diameter: 2.5 in
- Interior Baffle: Yes
- Drain Plug Included: Yes
- Hose Included: Yes
- Mounting Bracket Included: Yes

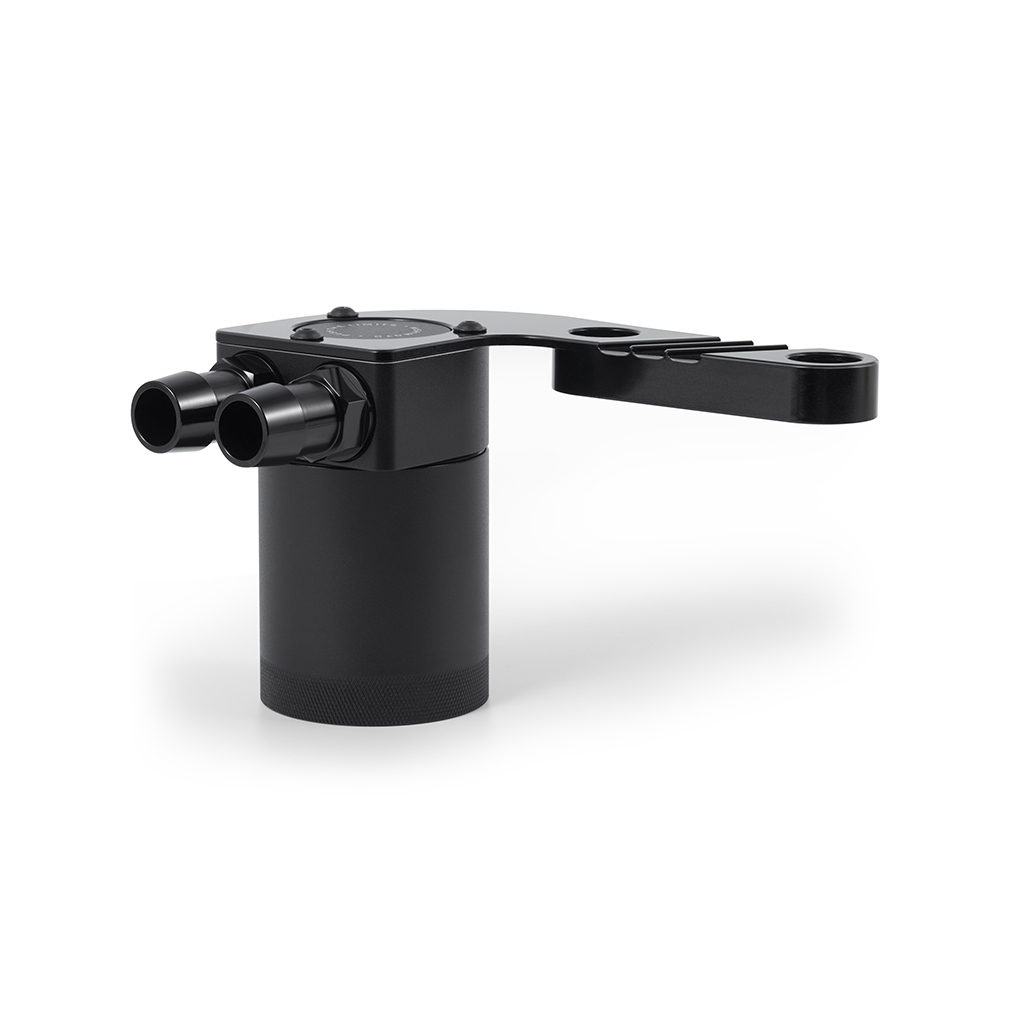

- Fittings: 3/4-in aluminum barbed fittings
- Engine Code: S55
- Chassis Codes: F80, F82, F83, F87

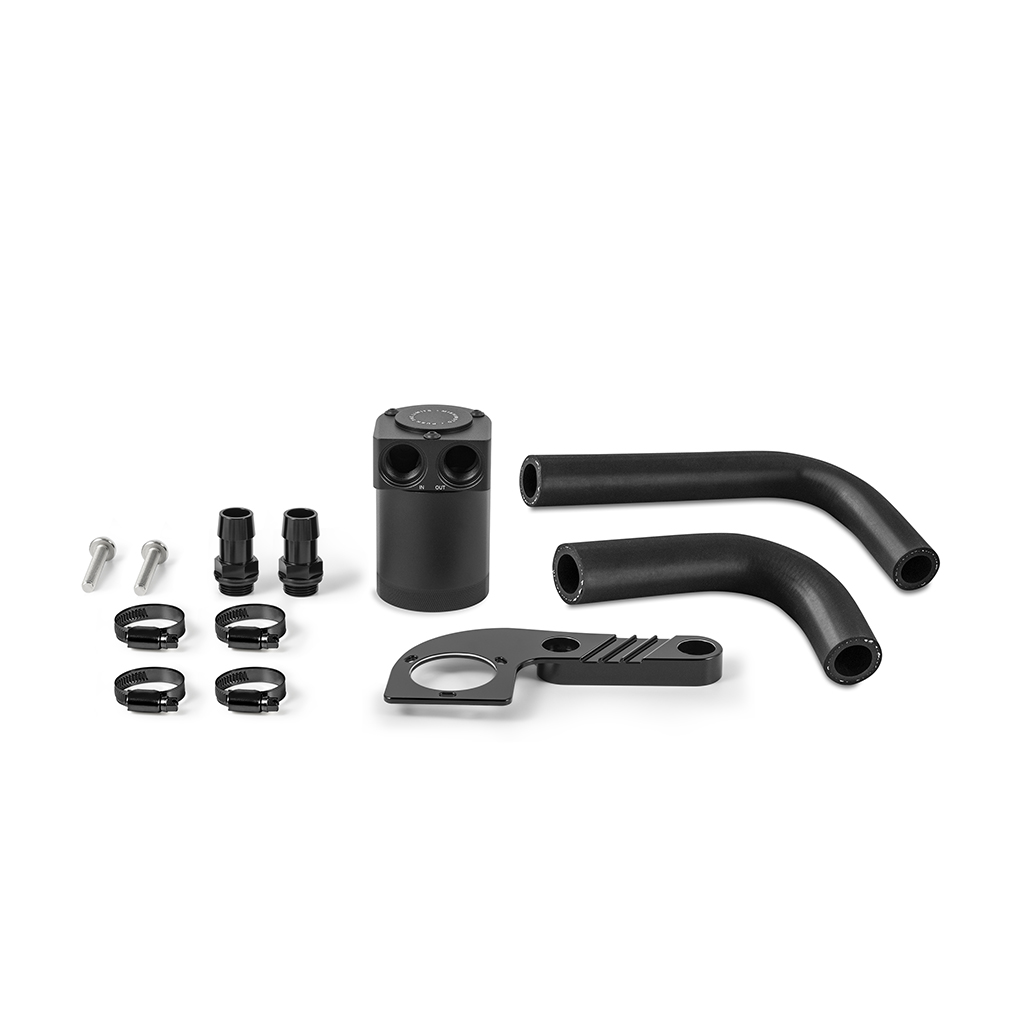

- Kit Includes: (1) Compact Baffled Oil Catch Can, (1) Application-Specific Mounting Bracket, (2) Direct-Fit Hoses, (2) 3/4-in Aluminum Barbed Fittings, (4) Worm Gear Clamps, Mounting Hardware, Mishimoto Lifetime Warranty
Frequently Asked Questions
Which BMW models does the Mishimoto MMBCC-F80-15CBS catch can kit fit?
It’s a direct fit for the 2015-2018 BMW M3, 2015-2020 BMW M4 (including the 2016 M4 GTS and 2018-2020 M4 CS), and the 2019-2020 BMW M2 Competition, all S55-powered F80/F82/F83/F87 chassis cars.
What does the catch can protect against?
It defends the intercooler, intake system, and VANOS system from oil blow-by and helps maintain proper octane levels to reduce potential detonation.
What filtration does the catch can use?
A single 2-Port Compact Baffled Oil Catch Can with a 50-micron bronze filter and internal baffle separates oil particles from crankcase vapors, and an internal air diverter increases air turbulence to improve oil separation.
Does installation require modifying the engine cover?
No. The kit’s direct-fit hoses and application-specific billet aluminum mounting bracket install with no modification to the engine cover.
What color options are available for the mounting bracket?
The aluminum bracket is available in 12 BMW-specific color-matching options or classic black.
What is included in the kit?
The kit includes (1) Compact Baffled Oil Catch Can, (1) Application-Specific Mounting Bracket, (2) Direct-Fit Hoses, (2) 3/4-in Aluminum Barbed Fittings, (4) Worm Gear Clamps, mounting hardware, and the Mishimoto Lifetime Warranty.
