Description
The Mishimoto Baffled Oil Catch Can Kit (MMBCC-F80-15CMG) is purpose-built for the S55-powered BMW M3, M4, and M2 Competition, giving these turbocharged compact M cars a dedicated line of defense against oil blow-by. Built around the Mishimoto 2-Port Compact Baffled Oil Catch Can (US Patent No. D966,372 S), this kit pairs a 50-micron bronze filter with an internal baffle to separate oil from crankcase vapors before they ever reach the intake tract.
As a longtime maker of car engine parts and other components of an automobile engine, Mishimoto engineered this catch can with a CNC-machined, twist-off lid featuring large inlet and outlet ports sized to match the inner diameter of the factory CCV hose, so crankcase vapors flow efficiently into the can. Because the can is not heated, oil vapor, low-octane fuel vapor, and contaminated fuel condense and stay trapped inside rather than draining back into the oil pan the way many air-oil-separator systems do. This helps defend the intercooler, intake system, and VANOS system from oil blow-by and helps maintain proper octane levels to reduce potential detonation. For anyone digging into the parts of a car engine that quietly protect automobile combustion, a baffled catch can like this is one of the more overlooked yet essential engine parts for car reliability.
Vehicle Applications
This catch can kit is a direct fit for the 2015-2018 BMW M3, the 2015-2020 BMW M4 Coupe and Convertible (including the 2016 BMW M4 GTS Coupe and the 2019-2020 BMW M4 CS Coupe), and the 2019-2020 BMW M2 Competition. Every one of these applications shares the turbocharged S55 engine across the F80, F82, F83, and F87 chassis codes, and the kit’s hoses and mounting bracket are application-specific so installation requires no modification to the factory engine cover.
Features
- 50-micron bronze filter with internal baffle for oil separation
- Internal air diverter increases air turbulence to improve oil separation
- CNC-machined lid with large inlet and outlet ports sized to match the CCV hose
- Two direct-fit hoses install with no modification to the engine cover
- Direct-fit billet aluminum mounting bracket mounts the can in a serviceable location
- Available in 12 BMW-specific color-matched bracket options (such as Mineral Gray Metallic) or classic black
- Two aluminum, 3/4-inch barb fittings connect the hoses to the can
- Filters and can are fully serviceable
- Defends the intercooler, intake system, and VANOS system from oil blow-by
- Helps maintain proper octane levels to reduce potential detonation
- Traps blow-by permanently instead of draining it back into the oil pan
- Backed by the Mishimoto Lifetime Warranty
- Patent No. US D966,372 S
Specifications
- Can Material: 6061-T6 Billet Aluminum
- Can Finish: Anodized
- Can Type: Twist Off
- Can Outside Diameter: 2.5 in
- Inlet Port Inside Diameter: 0.6 in
- Outlet Port Inside Diameter: 0.6 in
- Interior Baffle: Yes
- Mounting Bracket Included: Yes
- Hose Included: Yes
- Drain Plug Included: Yes
- Engine Code: S55
- Chassis Codes: F80, F82, F83, F87

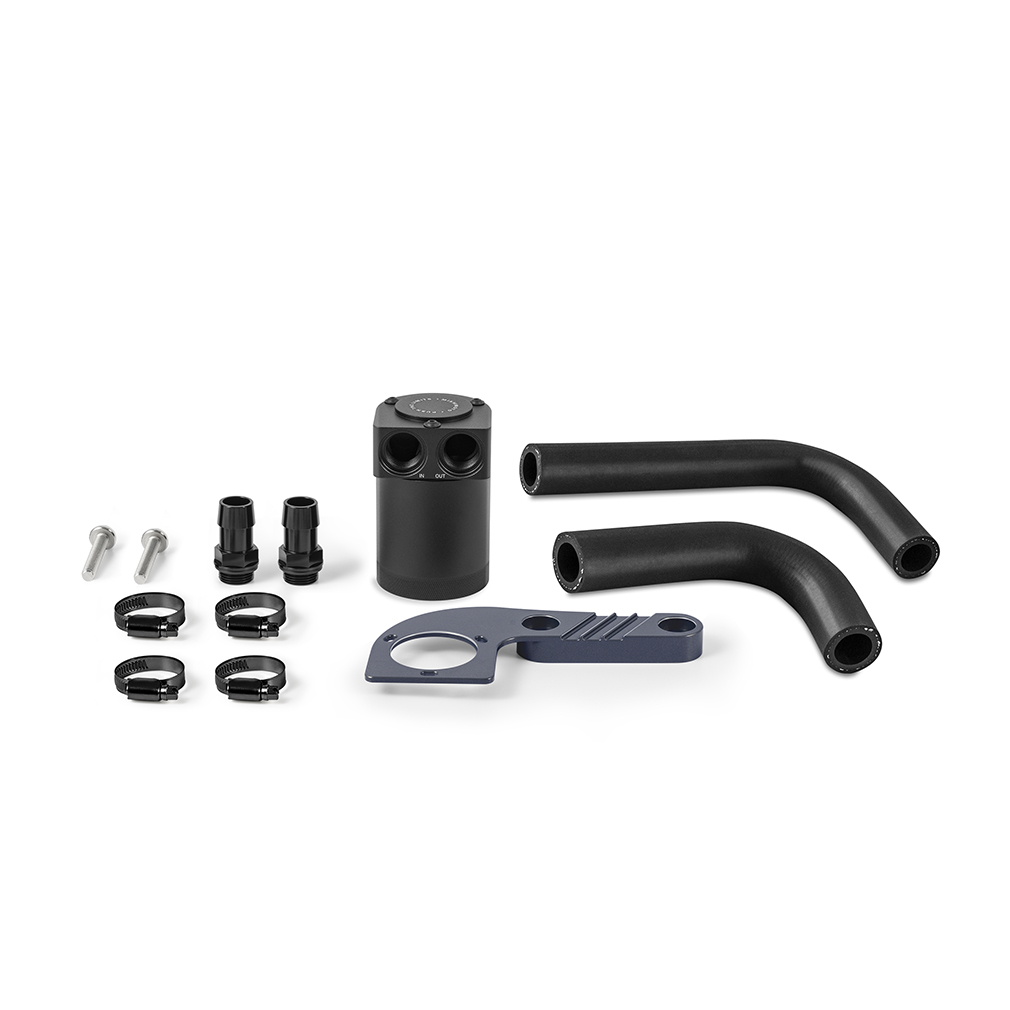

- Kit Includes: (1) Compact Baffled Oil Catch Can, (1) Application-Specific Mounting Bracket, (2) Direct-Fit Hoses, (2) 3/4-in Aluminum Barbed Fittings, (4) Worm Gear Clamps, Mounting Hardware, Mishimoto Lifetime Warranty
Frequently Asked Questions
Which BMW models does the Mishimoto MMBCC-F80-15CMG catch can kit fit?
It is a direct fit for the 2015-2018 BMW M3, the 2015-2020 BMW M4 Coupe/Convertible (including the 2016 M4 GTS Coupe and 2019-2020 M4 CS Coupe), and the 2019-2020 BMW M2 Competition, all built on the S55 engine and F80/F82/F83/F87 chassis codes.
What comes in the kit?
The kit includes one Compact Baffled Oil Catch Can, one application-specific mounting bracket, two direct-fit hoses, two 3/4-inch aluminum barbed fittings, four worm gear clamps, mounting hardware, and the Mishimoto Lifetime Warranty.
How does the catch can separate oil from crankcase vapor?
It uses a 50-micron bronze filter combined with an internal baffle and an internal air diverter that increases air turbulence to improve oil separation.
Do I need to modify my engine cover to install this kit?
No. The two hoses are direct-fit, so installation does not require any modification to the engine cover.
What color options are available?
The bracket is available in 12 BMW-specific color-matched options, such as Mineral Gray Metallic, or in classic black.
Is the catch can serviceable?
Yes, both the filter and the can itself are fully serviceable, and the can uses a twist-off design with an included drain plug.
