Description
The Mishimoto MMBCC-UNI-RD is the brand’s Universal Baffled Oil Catch Can in red, a 100-percent billet 6061 aluminum canister built after more than a year of research and development to separate oil particles from PCV air before it re-enters the intake. Rather than relying on a generic screen, this can uses custom-grooved inlet geometry to turbulate incoming air and an internal baffle to keep collected oil from sloshing under hard cornering. It’s a purpose-built component for anyone serious about protecting the intake side of a car engine from oil vapor.
As PCV gases move through the catch can, oil condenses out and drops to the bottom of the housing while only clean air continues on to the 40 micron bronze filter and back into the intake. Because the can accepts -AN fittings at the inlet, outlet, and drain, it can be configured well over 25 different ways, and the top cog mounting setup lets it be positioned at multiple angles to suit different engine bays. The drain plug can be pulled to run an -AN return line straight to the oil pan, and unlike catch cans that need a replacement filter element, this one is 100-percent washable, so maintaining the parts of a car engine’s ventilation system stays simple over the life of the vehicle.
Vehicle Applications
This is a universal-fit oil catch can rather than a model-specific part, so it is not tied to a single make, model, chassis code, or engine code in the source specifications. Its M20x1.5 push-on inlet and outlet fittings, -AN port options, and adjustable top cog mounting bracket are designed to give it broad placement flexibility across a wide range of automobile engine bays where a baffled catch can be plumbed into the PCV system.
Features
- 40-micron bronze filter blocks oil from depositing in the ventilation system
- Specially engineered inlet pattern turbulates air longer, allowing oil to condense
- Internal baffle ensures no oil escapes during high-speed cornering
- Replaceable single-unit filter is easy to maintain

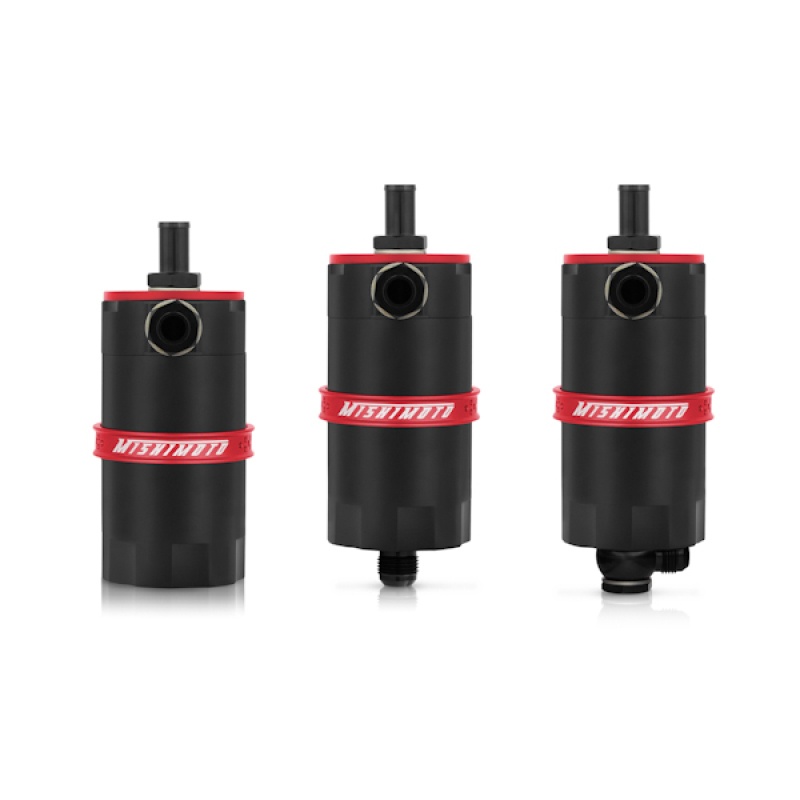

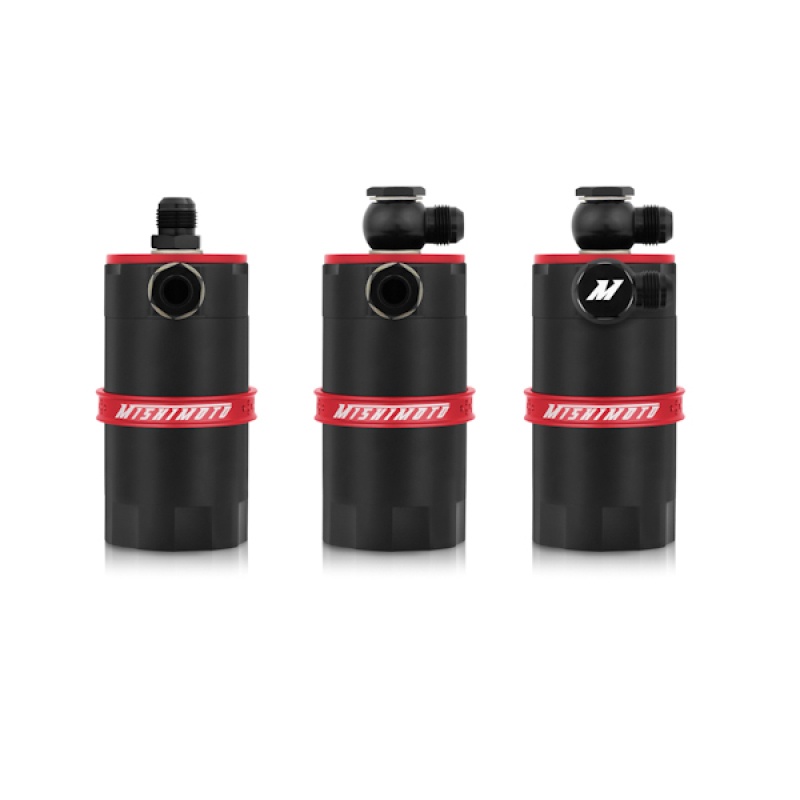

- Inlet and outlet accept -AN fittings for various configurations
- 100-percent billet anodized 6061 aluminum with a laser etched finish
- Safe to use in pressurized systems
- Drain plug can be removed to allow for an -AN return to the oil pan

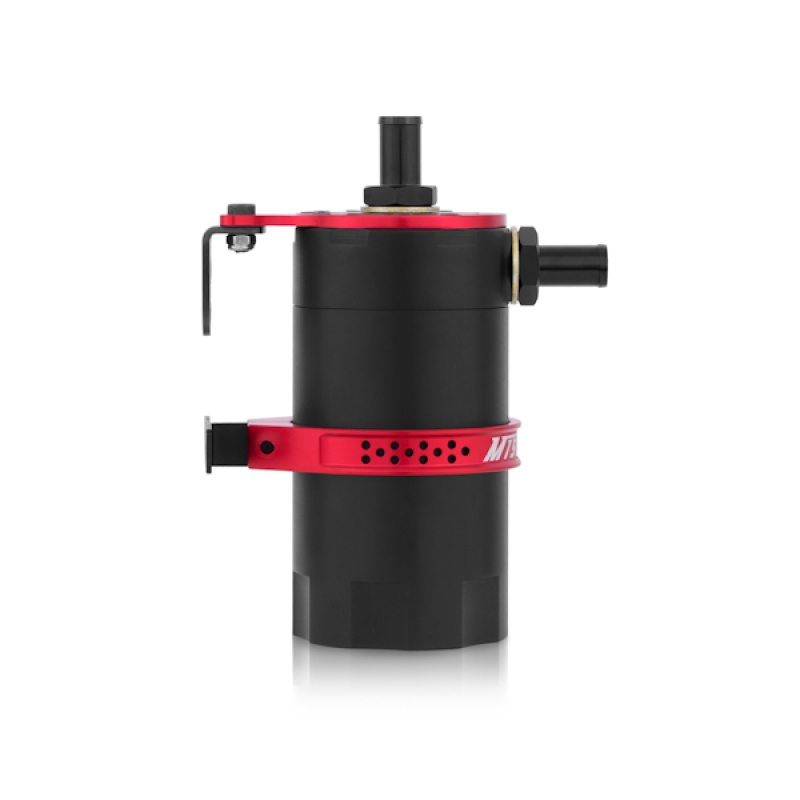

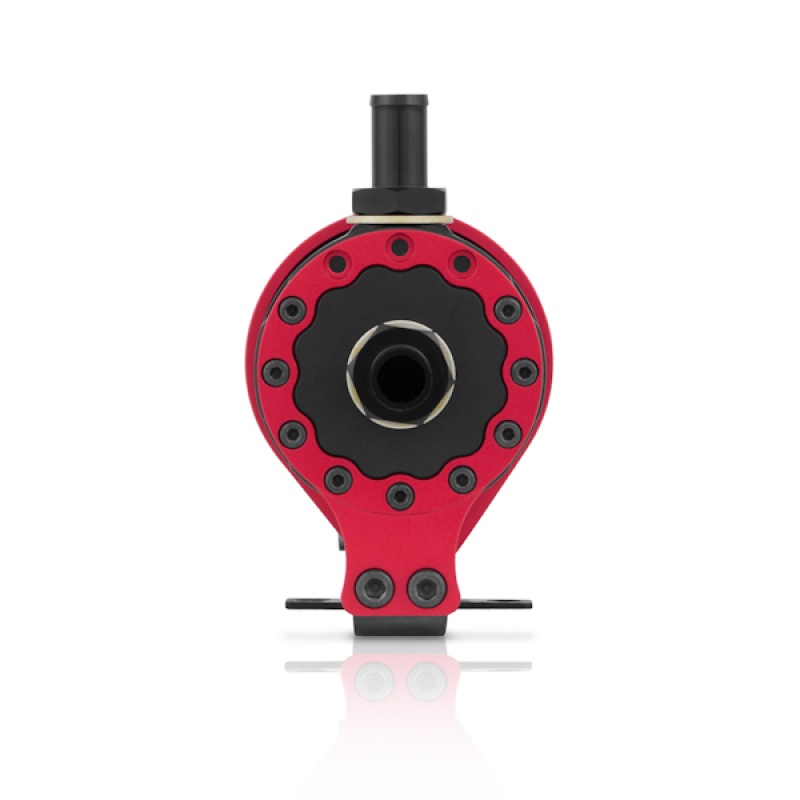

- Unique upper mounting bracket cogs provide versatile mounting options
- Includes push-on fittings for easy installation
- 100-percent washable rather than requiring filter replacement
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMBCC-UNI-RD
- Color: Red
- Grade Type: Performance
- Port Outside Diameter: 20 MM
- Material: 6061 Aluminum
- Inlet Thread: M20x1.5
- Outlet Thread: M20x1.5
- Drain Plug Thread Size: M20x1.5
- Inlet hose size: 5/8 in.

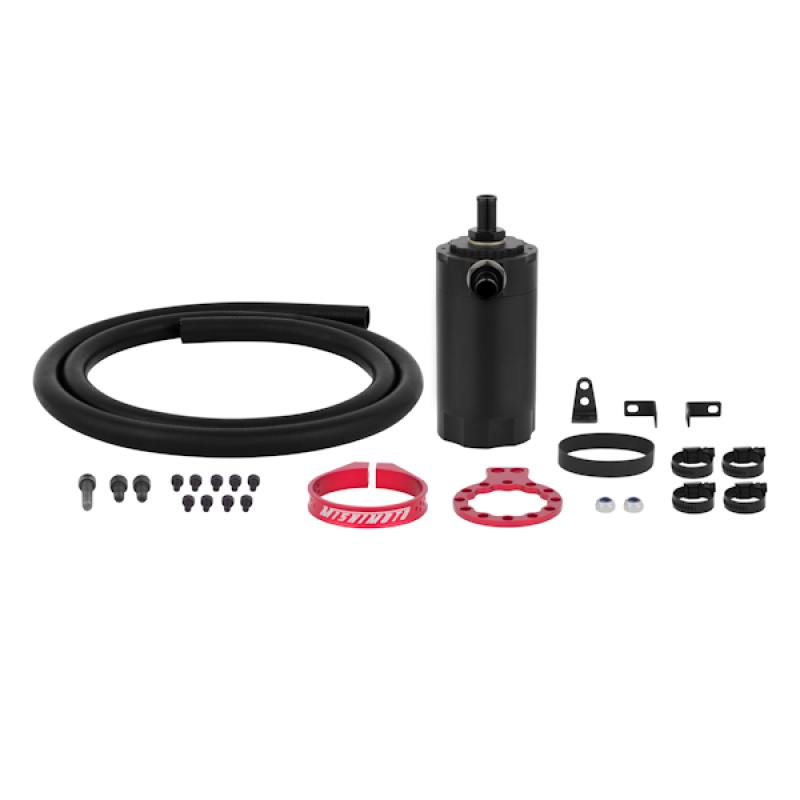

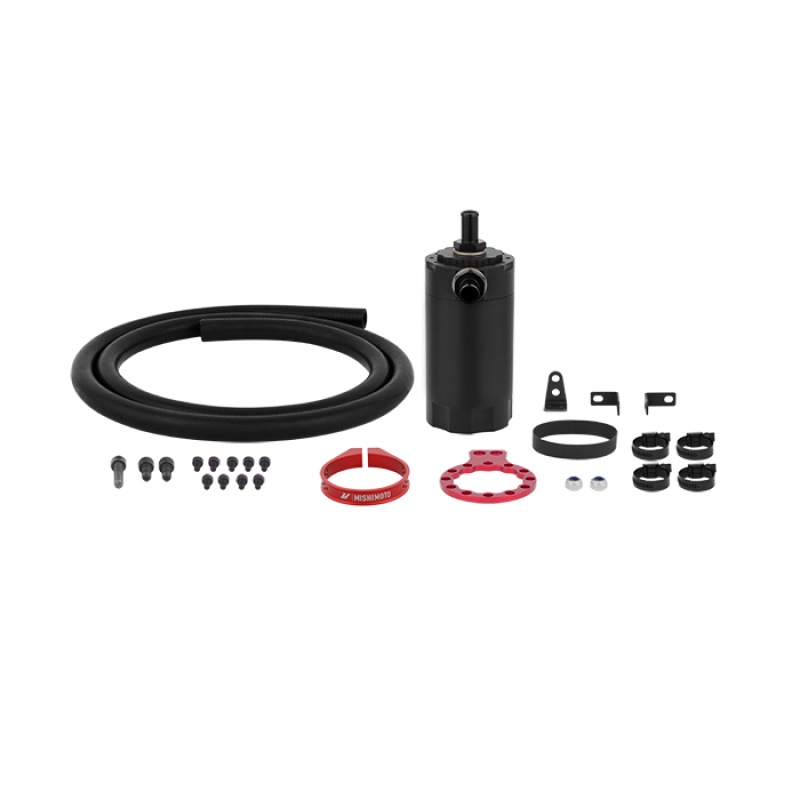

- Includes: (1) Black Anodized 6061 Aluminum Catch Can, (2) Aluminum Mounting Brackets, (1) Bronze Filter, (1) Internal Baffle, (3) Dowty Oil Seals, (2) M20x1.5 x 5/8″ Push-on Barbed Fittings, (1) Drain Plug, (6) Black Rubber Oil Line, (4) Worm Gear Clamps, (1) Black Rubber Band, Mounting Hardware and Brackets, Mishimoto Lifetime Warranty
- Warning: Cancer and Reproductive Harm – www.p65warnings.ca.gov
Frequently Asked Questions
What color is this Mishimoto catch can?

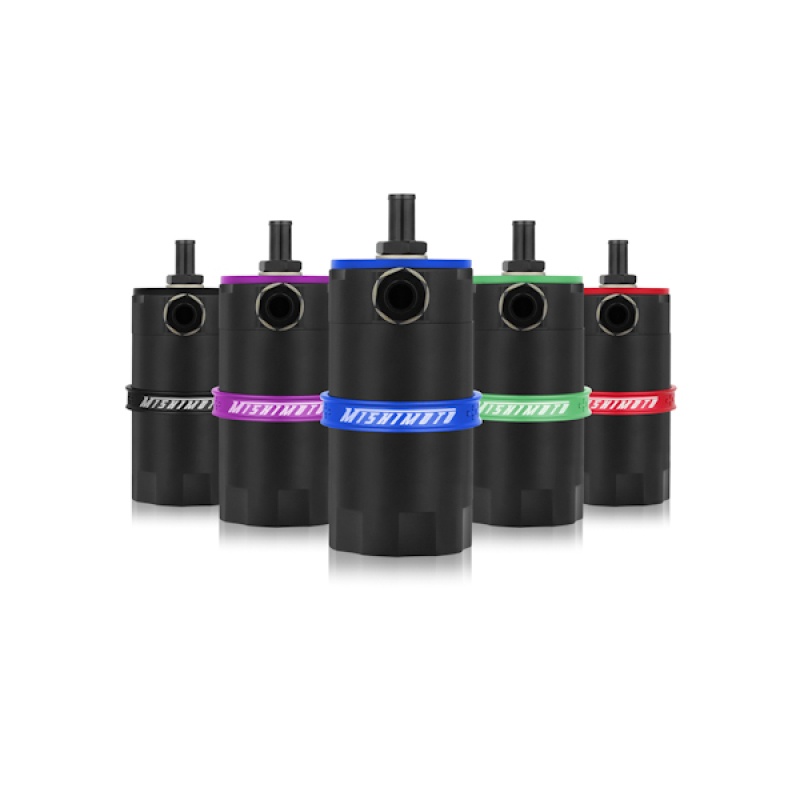

This listing is the red version, part number MMBCC-UNI-RD; the Baffled Oil Catch Can is also available in a variety of other colors.
How does the Mishimoto Baffled Oil Catch Can filter oil from PCV air?

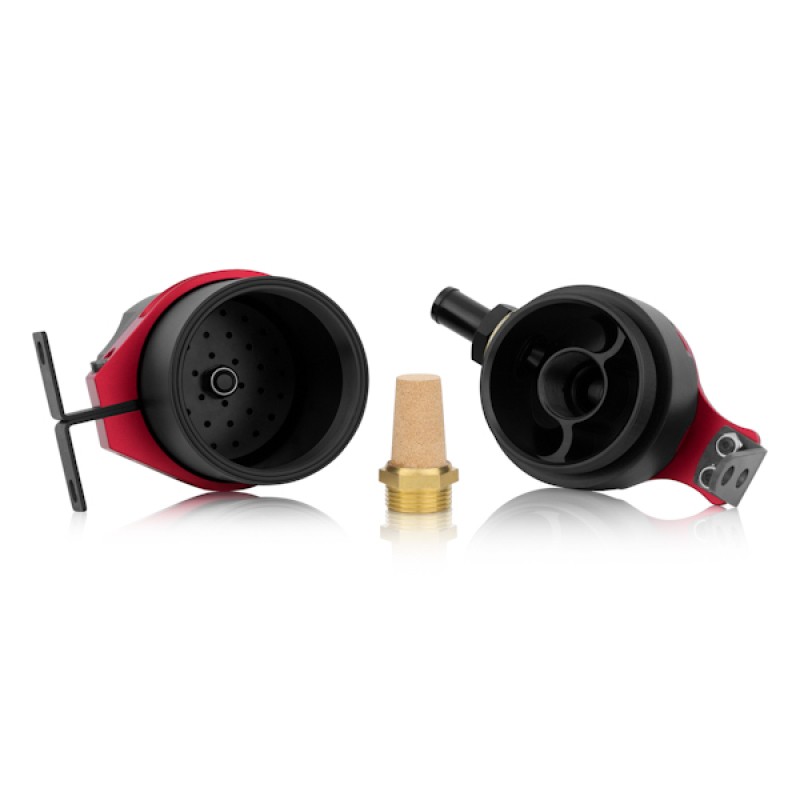

Custom grooves in the inlet turbulate the air so oil condenses and sinks to the bottom, an internal baffle keeps the oil from splashing, and the remaining air passes through a 40 micron bronze filter before heading to the intake.
Is the filter reusable or does it need replacing?
The can is 100-percent washable, unlike many catch cans that require replacing the filtration system.
What fittings and thread sizes does the can use?
The inlet, outlet, and drain area accept -AN fittings for over 25 possible configurations, and the push-on inlet/outlet fittings and drain plug use an M20x1.5 thread pitch.
Does this catch can fit a specific make or model?
It is a universal-fit product; the manufacturer specifications list vehicle applications, engine codes, and chassis codes as not applicable, and mounting is handled via an adjustable top cog bracket for flexible placement.
What is included with the catch can and what warranty does it carry?
It includes the black anodized 6061 aluminum can, two aluminum mounting brackets, a bronze filter, an internal baffle, three Dowty oil seals, two M20x1.5 x 5/8″ push-on barbed fittings, a drain plug, black rubber oil line, worm gear clamps, a rubber band, mounting hardware, and the Mishimoto Lifetime Warranty.
