Description
The Mishimoto MMICP-F80-15CFDG charge pipe kit swaps out the factory plastic-welded charge pipes on the BMW F8X chassis for a full aluminum, TIG-welded set finished in a color match to your exterior paint. Where the stock pipes carrying the S55’s boost are known to split at the plastic welds near the turbo or burst along the seam, Mishimoto engineered these replacements with a more uniform, mandrel-bent path from turbo to intercooler to close off that weak link without compromising fitment.
Listed under Mishimoto’s Forced Induction lineup, this charge pipe kit is built to keep the boost sealed and the induction system running as designed between the turbo and intercooler. The pipes use a unique cast midsection engineered for a precise fit between the engine and air intake, and they’re finished with automotive-grade, color-matched paint available in your choice of 12 OEM colors or classic black, so your engine bay stays as clean as the rest of your F80. A bung is built into the design for straightforward methanol injection integration, and every kit is backed by the Mishimoto Lifetime Warranty.
Vehicle Applications
This charge pipe kit is a direct fit for the BMW F8X chassis, covering the 2015-2018 BMW M3 Sedan, the 2015-2020 BMW M4 Coupe and Convertible, the 2016 BMW M4 GTS Coupe, the 2019-2020 BMW M4 CS Coupe, and the 2019-2020 BMW M2 Competition. It is engineered specifically around the F80, F82, F83, and F87 chassis codes.
Features
- Direct fit for the 2015-2020 BMW M3, M4, and M2 Competition
- Color matched to your choice of 12 OEM colors or classic black

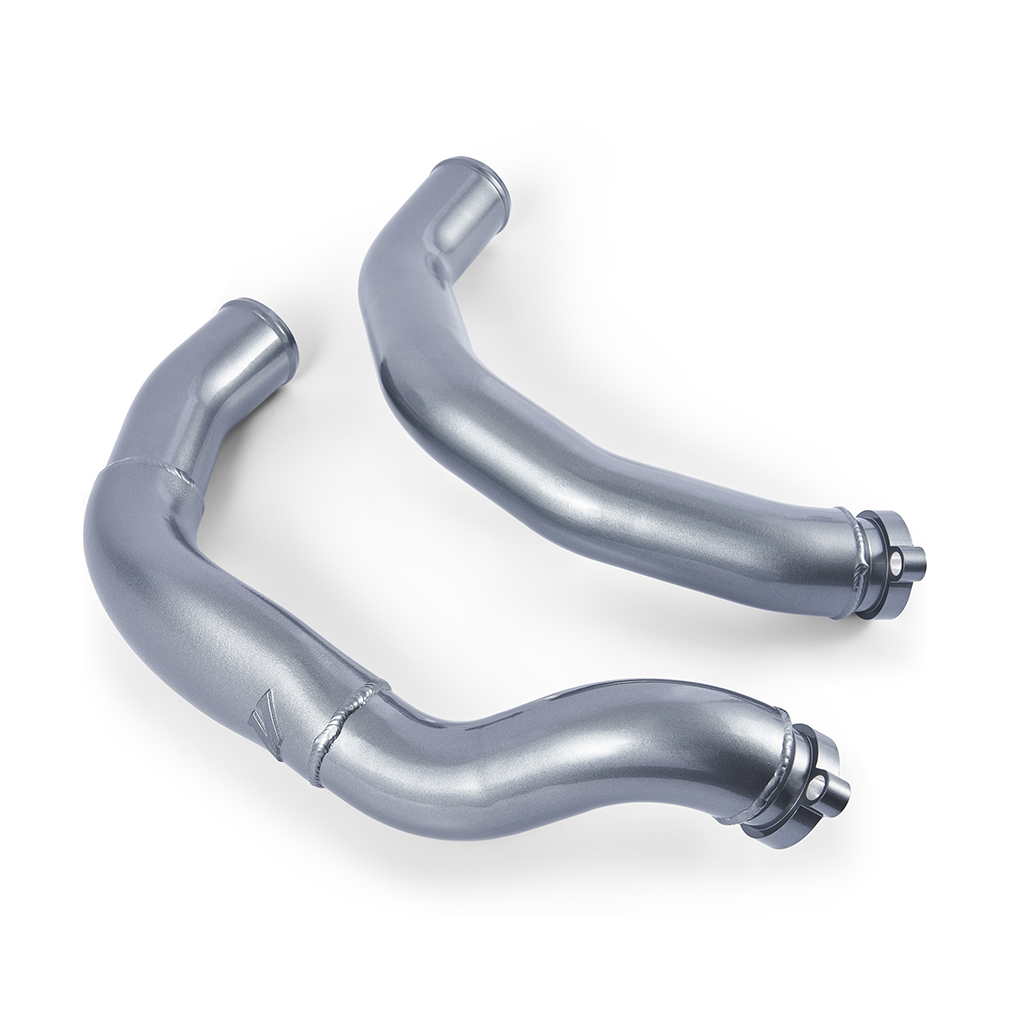

- Full aluminum, TIG-welded construction for durability
- Unique cast midsection for precise fitment between engine and air intake
- Includes a bung for simple integration of methanol injection
- Mandrel-bent pipe design engineered for optimal airflow
- Includes matte black silicone couplers for a secure, stock-style connection to the intercooler
- Worm gear clamps included for a secure seal
- Powder coated finish
- Backed by the Mishimoto Lifetime Warranty
- Patent No. US D971,261 S
Specifications
- Pipe Material: Aluminum
- Pipe Quantity: 2
- Pipe Bend Type: Mandrel
- Finish: Powder Coated
- Coupler Material: Silicone
- Coupler Color: Black
- Clamp Type: Worm Gear
- Clamps Included: Yes
- Chassis Codes: F80, F82, F83, F87
- CARB EO Number: D-759-13

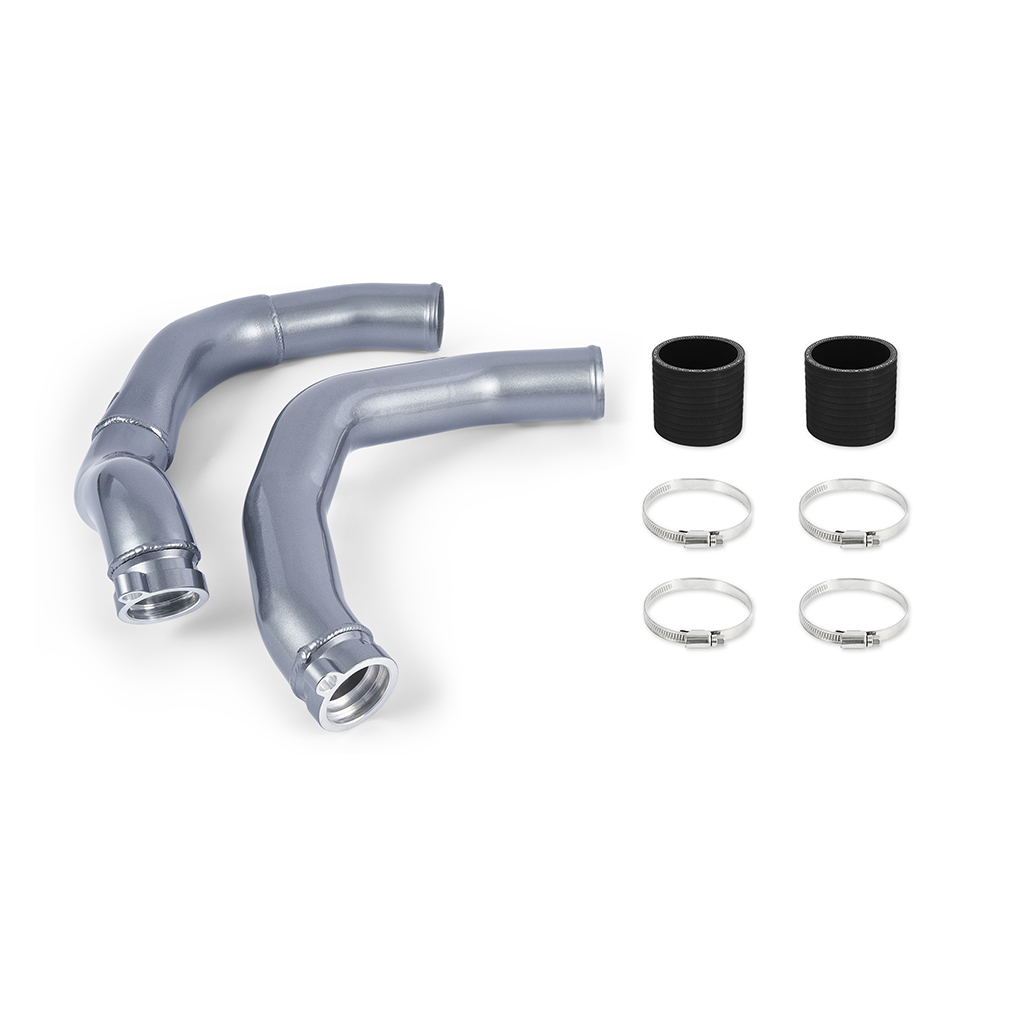

- Kit Includes: 2 Charge Pipes, 2 Silicone Couplers, 4 Worm Gear Clamps, 1 CARB EO Sticker, Mishimoto Lifetime Warranty
- Installation Note: 22 in-lbs (2.5NM) recommended torque for worm gear clamps; operating range 18-27 in-lbs (2-3NM); do not exceed 27 in-lbs (3NM)
Frequently Asked Questions
What vehicles does the Mishimoto MMICP-F80-15CFDG charge pipe kit fit?
It is a direct fit for the 2015-2018 BMW M3 Sedan, 2015-2020 BMW M4 Coupe and Convertible, 2016 BMW M4 GTS Coupe, 2019-2020 BMW M4 CS Coupe, and 2019-2020 BMW M2 Competition, covering the F80, F82, F83, and F87 chassis codes.
What material are these charge pipes made from?
The charge pipes are constructed from full aluminum with a TIG-welded, mandrel-bent design, and they carry a powder coated finish.

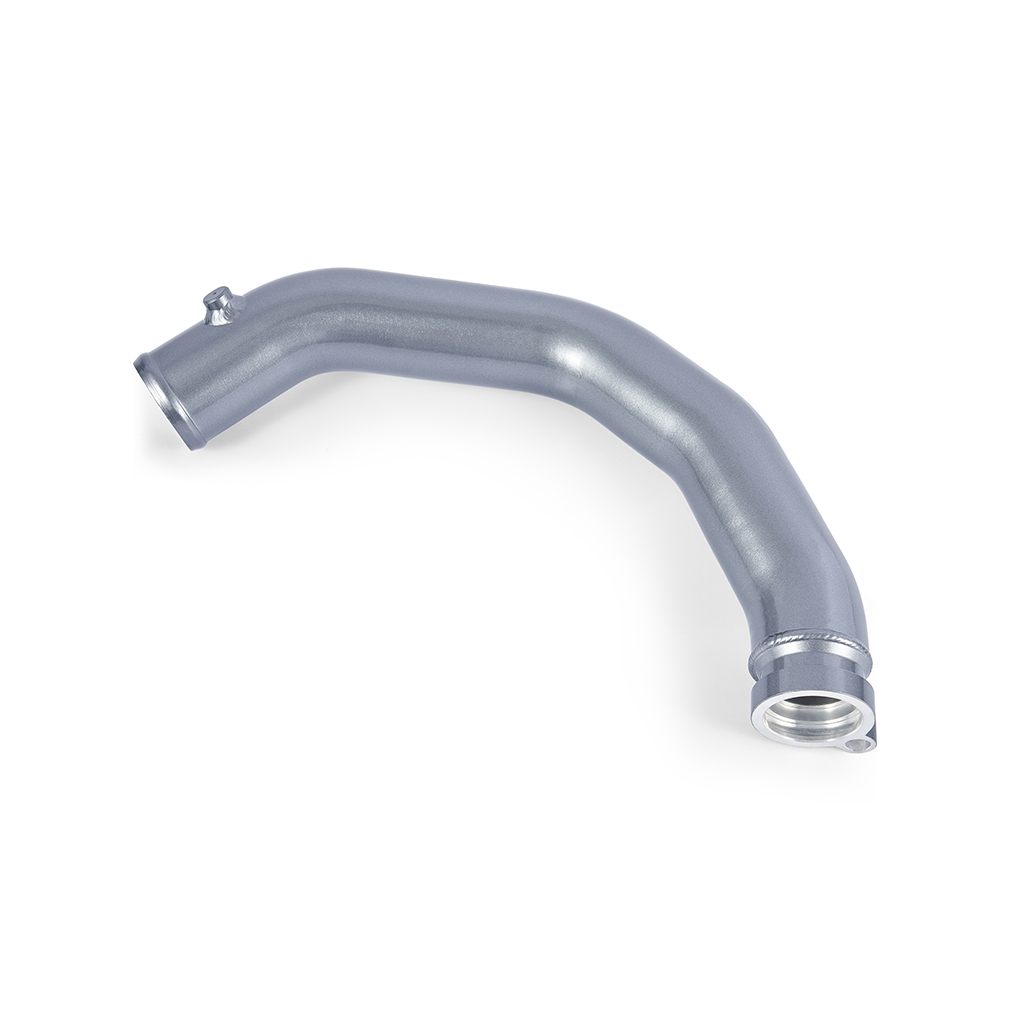

Can the charge pipes be color matched to my car?
Yes, the pipes can be color matched to your choice of 12 OEM colors or ordered in classic black to match your BMW’s exterior paint.
What is included in the Mishimoto charge pipe kit?
The kit includes 2 charge pipes, 2 silicone couplers, 4 worm gear clamps, 1 CARB EO sticker, and the Mishimoto Lifetime Warranty.
Does this kit support methanol injection?
Yes, the charge pipes include a bung for simple integration of methanol injection.
What torque should the worm gear clamps be set to during installation?
Mishimoto recommends 22 in-lbs (2.5NM) for the worm gear clamps, with an operating range of 18-27 in-lbs (2-3NM); do not exceed 27 in-lbs (3NM).
