Description

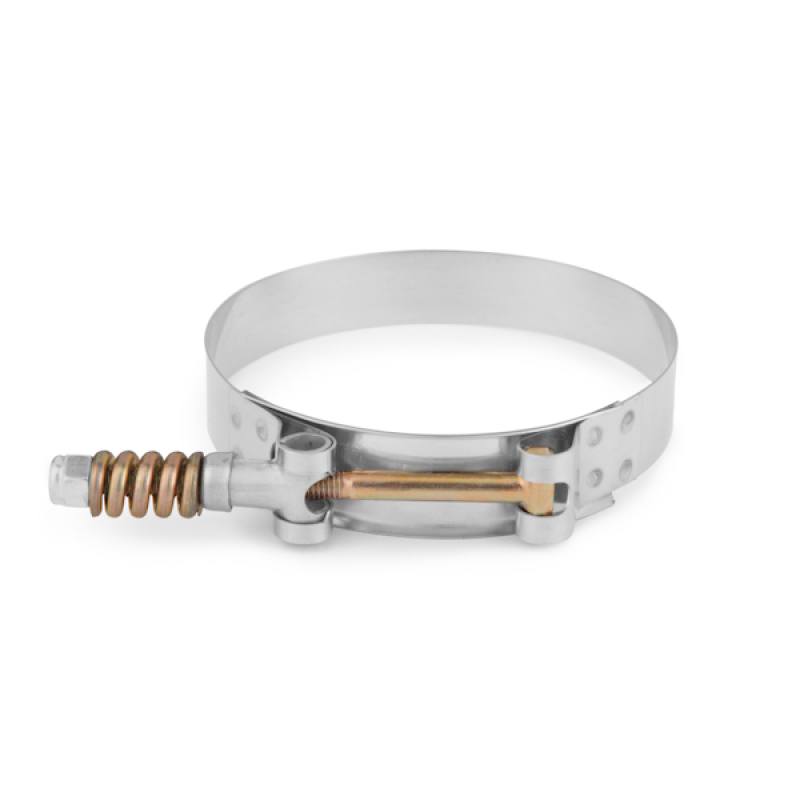

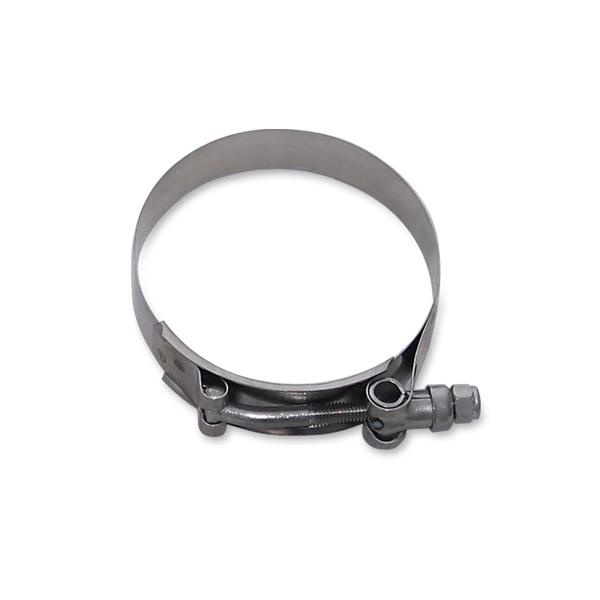

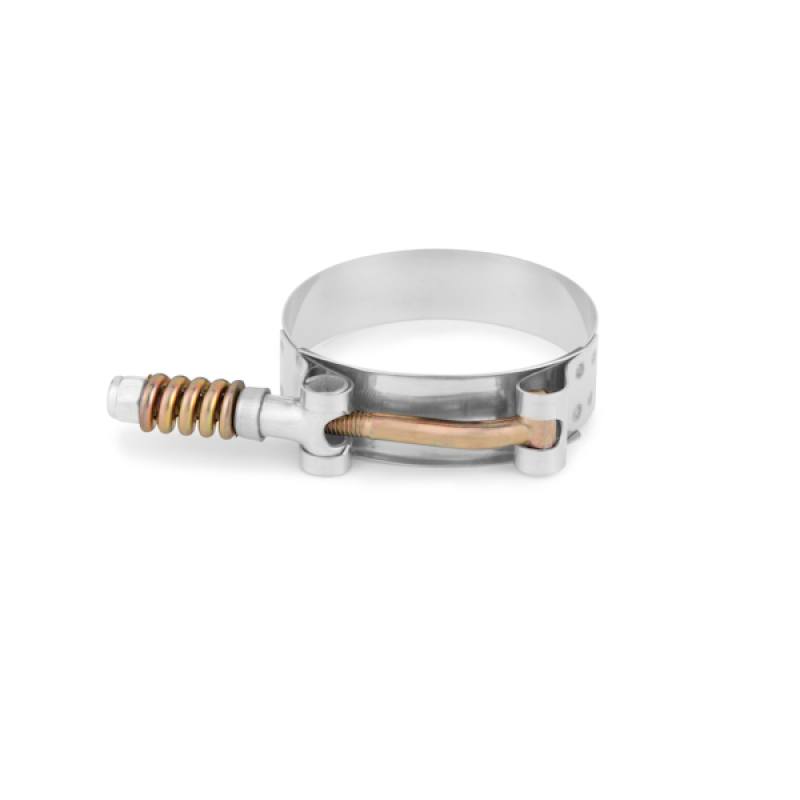

The Mishimoto MMCLAMP-25T is a stainless steel Constant Tension T-Bolt Clamp engineered to secure hoses, couplers, and pipes with an outer diameter between 2.48in and 2.76in (63mm-70mm). Unlike a standard clamp, this Fabrication component uses a spring on the adjustment bolt to keep constant pressure on the joint as temperatures swing, while an included self-locking nut keeps everything tight under vibration.
Mishimoto built this constant tension T-bolt clamp for anyone who needs a dependable, high-clamping-force seal on hoses and couplers that experience repeated heat cycling. The stainless steel band resists corrosion longer than a typical zinc-plated clamp, and the spring-loaded design compensates for the expansion and contraction that loosens ordinary clamps over time. It’s a reusable, premium-grade clamp designed to hold its setting through the temperature swings common in engine bay and piping applications, and it’s backed by the Mishimoto Lifetime Warranty.
Vehicle Applications
This constant tension T-bolt clamp is not tied to a specific make or model; instead, it is sized to fit any hose, coupler, or pipe joint with an outer diameter of 2.48in to 2.76in (63mm-70mm). This makes it a versatile fabrication piece for intercooler piping, silicone couplers, and other clamped connections that fall within that diameter range, whatever the vehicle.
Features
- Securely clamps pipes, couplers, and hoses with an outer diameter from 2.48in-2.76in (63mm-70mm)
- Constant tension spring maintains clamping pressure through a wide range of temperatures
- Included self-locking nut prevents loosening with movement and vibration
- Stainless steel construction resists corrosion longer than zinc-plated clamps
- Optional wear-resistant titanium nitride gold coating provides unique engine bay styling
- Clamps sold individually
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMCLAMP-25T
- Product Type: Fabrication
- Clamp Style: Constant Tension T-Bolt Clamp
- Material: Stainless Steel
- Spring Material: Steel
- Color: Silver
- Finish: Plain
- Grade Type: Premium
- Size: 2.5
- Minimum Diameter: 2.48in
- Maximum Diameter: 2.76in
- Band Width: 0.75in
- Recommended Tightening Torque: 27 in-lbs (3 NM)
- SAE Size: 46
- Reusable: Yes
- Includes: (1) Mishimoto Stainless Steel Constant Tension T-Bolt Clamp, Mishimoto Lifetime Warranty
Frequently Asked Questions
What diameter range does this Mishimoto T-bolt clamp fit?
This constant tension T-bolt clamp fits hoses, couplers, and pipes with an outer diameter between 2.48in and 2.76in (63mm-70mm).
What material is the MMCLAMP-25T clamp made from?
The clamp is made from stainless steel with a plain silver finish, and the internal spring is made from steel.
How does the constant tension feature work?
A spring on the adjustment bolt allows the clamp to expand and contract with temperature swings while maintaining constant clamping pressure on the joined parts.
Does this clamp include a locking nut?
Yes, the clamp includes a self-locking nut that prevents loosening from movement and vibration.
What is the recommended tightening torque for this clamp?
The recommended tightening torque is 27 in-lbs (3 NM).
Is this clamp reusable and how is it sold?
Yes, this clamp is reusable, and it is sold individually. It is backed by the Mishimoto Lifetime Warranty.
