Description

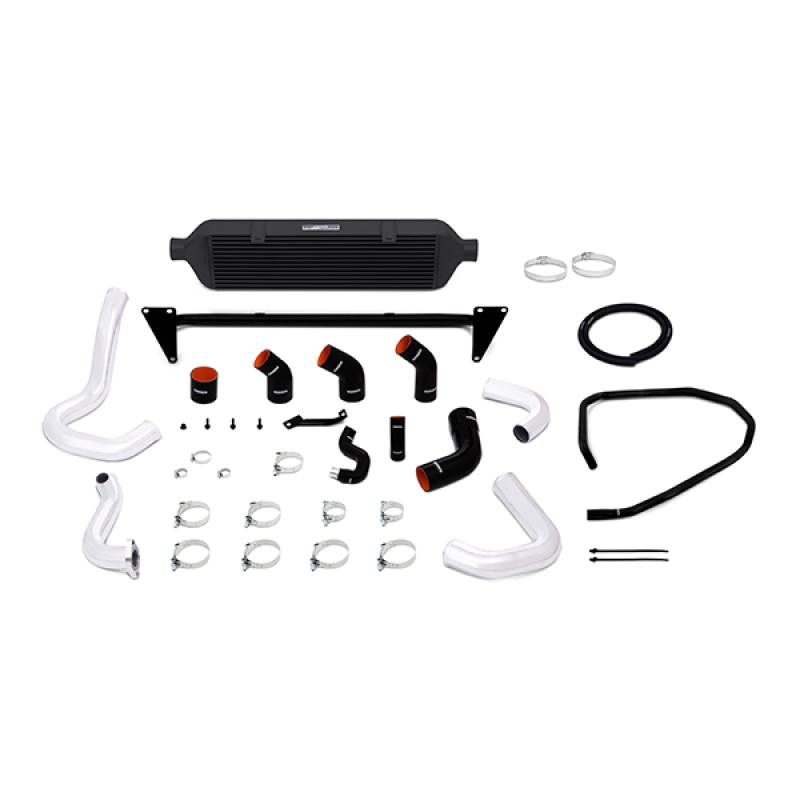

The Mishimoto MMINT-WRX-15BK is a purpose-built front-mount intercooler kit engineered specifically for the 2015-2021 Subaru WRX, centered on a large 28in bar-and-plate aluminum core rated for approximately 600 whp during normal operation and up to 700 whp maximum. Every component, from the CFD-tested cast end tanks to the mandrel-bent piping, is designed to push more cooled air through your WRX’s forced induction system without the throttle lag or pressure drop that plague lesser front-mount designs.
As a dedicated Forced Induction upgrade, this intercooler kit is built for drivers who push their induction system hard, whether on time-attack laps or quarter-mile passes. The smooth, CFD-tested cast end tanks eliminate the sharp internal walls and bends that disrupt airflow in a typical forced induction turbo setup, while the 3.5in-thick core is optimized for maximum cooling efficiency with minimal pressure drop. Four mandrel-bent aluminum pipes, including 2.25in hot-side tubing with a CNC-machined flange for a leak-free turbo connection and 2.5in-2.75in cold-side tubing sized to match the throttle body, round out a complete, application-specific forced induction system upgrade over the factory intercooler and piping.
Vehicle Applications
This Mishimoto intercooler kit is a specific fit for the 2015-2021 Subaru WRX. Coverage includes the WRX Base, Limited, and Premium trims across 2015-2021, the Sport and Sport-tech trims from 2017-2021, the Sport-tech RS from 2019-2020, the 6 Man and CVT trims from 2018-2021, the 2021 WRX EyeSight, and the 2019 WRX Raui Edition. All applications use the FA20DIT engine on the VA chassis. Per Mishimoto’s technical notes, this kit does not fit fog-light-equipped vehicles and is not compatible with the Mishimoto 2015+ WRX oil cooler kit or with some air-oil separator kits.
Features
- Direct-fit forced induction upgrade for the 2015-2021 Subaru WRX

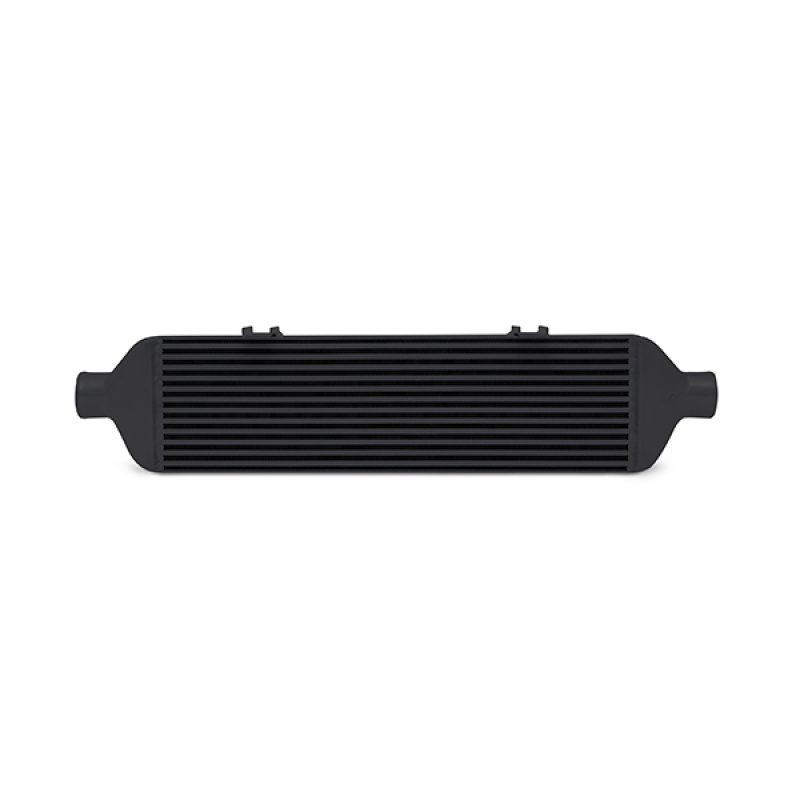

- 28in, 3.5in-thick bar-and-plate aluminum core optimized for maximum flow with minimal pressure drop
- Smooth cast aluminum end tanks, CFD tested for maximum airflow with no sharp walls or bends

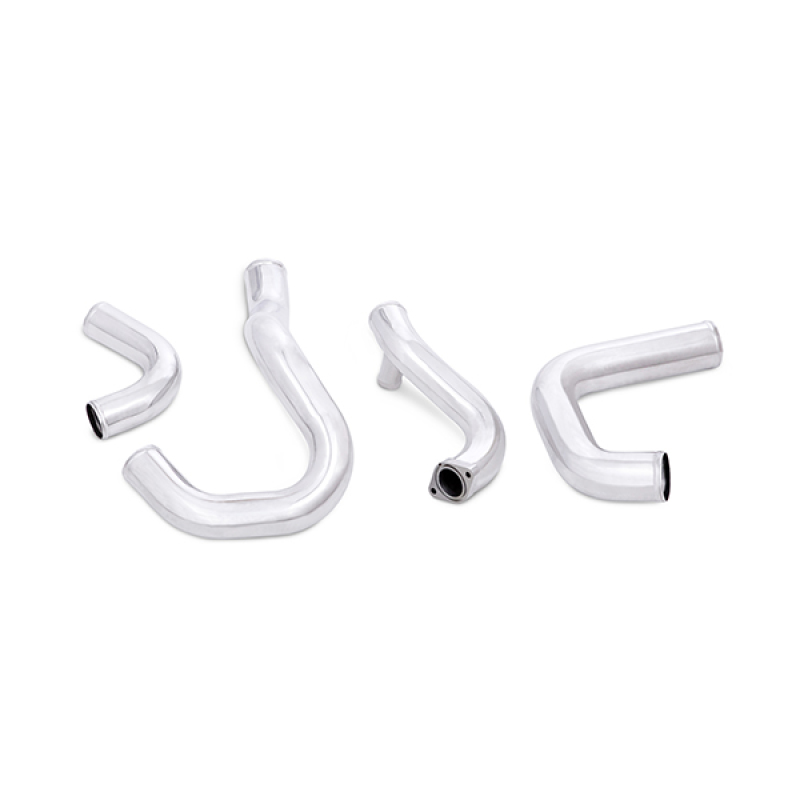

- Four mandrel-bent aluminum pipes: 2.25in hot-side and 2.5in-2.75in cold-side tubing
- CNC-machined flange on the hot-side pipe for a leak-free turbo connection

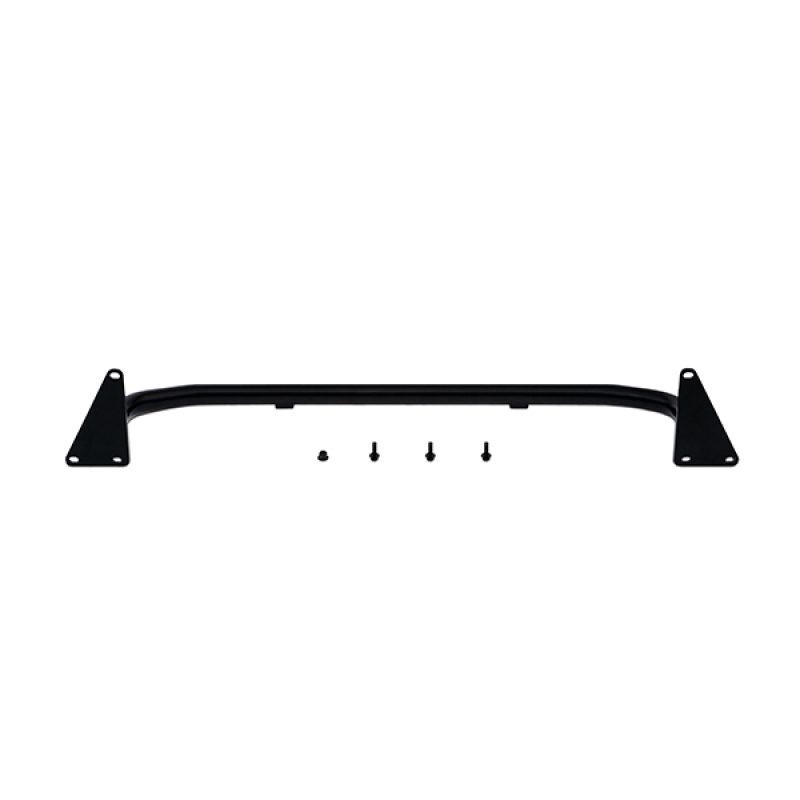

- Includes a black powder-coated steel tubular crash bar that mounts to existing points with no cutting or drilling required
- Designed to work with the Mishimoto Performance Air Intake or the stock intake, including a new air intake bracket
- Includes all necessary couplers, brackets, clamps, and hardware for installation
- Backed by the Mishimoto Lifetime Warranty
- CARB EO Number: D-759
Specifications
- Core Material: Aluminum
- Core Construction: Bar-and-Plate
- Core Height: 8.05in
- Core Thickness: 3.5in
- Core Length: 28in
- End Tank Material: Aluminum
- End Tank Construction: Cast
- Intercooler Type: Air-to-Air
- Hot Side Pipe Inside Diameter: 2.45in
- Cold Side Pipe Inside Diameter: 2.75in
- Inlet Diameter: 2.45in
- Outlet Diameter: 2.75in
- Pipe Material: Aluminum
- Pipe Color: Black
- Pipe Finish: Powder Coated
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Maximum Boost Pressure: 30 PSI
- Maximum Horsepower: 600 whp
- Overall Width: 5.4in
- Overall Height: 8.6in
- Overall Length: 37.7in
- Engine Code: FA20DIT
- Chassis Code: VA
- CARB EO Number: D-759
Frequently Asked Questions
What vehicles does this Mishimoto intercooler kit fit?
This kit is a specific fit for the 2015-2021 Subaru WRX, covering the Base, Limited, and Premium trims (2015-2021), Sport and Sport-tech (2017-2021), Sport-tech RS (2019-2020), 6 Man and CVT (2018-2021), the 2021 EyeSight trim, and the 2019 Raui Edition, all on the FA20DIT/VA platform.
What is the maximum horsepower rating for this intercooler kit?
The kit is rated for approximately 600 whp during normal operating conditions, with a maximum horsepower potential near 700 whp. Exceeding these limits could require a custom-size front-mount intercooler.
Does this intercooler fit WRX models equipped with fog lights?
No. According to Mishimoto’s technical notes, this kit does not fit fog-light-equipped vehicles.
Is this intercooler kit compatible with the Mishimoto WRX oil cooler kit?
No, this front-mount intercooler kit will not fit with the Mishimoto 2015+ WRX oil cooler kit, and it is also not compatible with some air-oil separator kits.
Does installing this intercooler require an ECU retune?
Mishimoto recommends that the vehicle’s ECU be retuned after installing this intercooler kit, as it is not recommended for use with stock ECU programming. Power gains will vary depending on turbo size, exhaust system, fuel system, and the type of ECU tune applied.
What warranty covers this Mishimoto intercooler kit?
This intercooler kit is backed by the Mishimoto Lifetime Warranty.
