Description

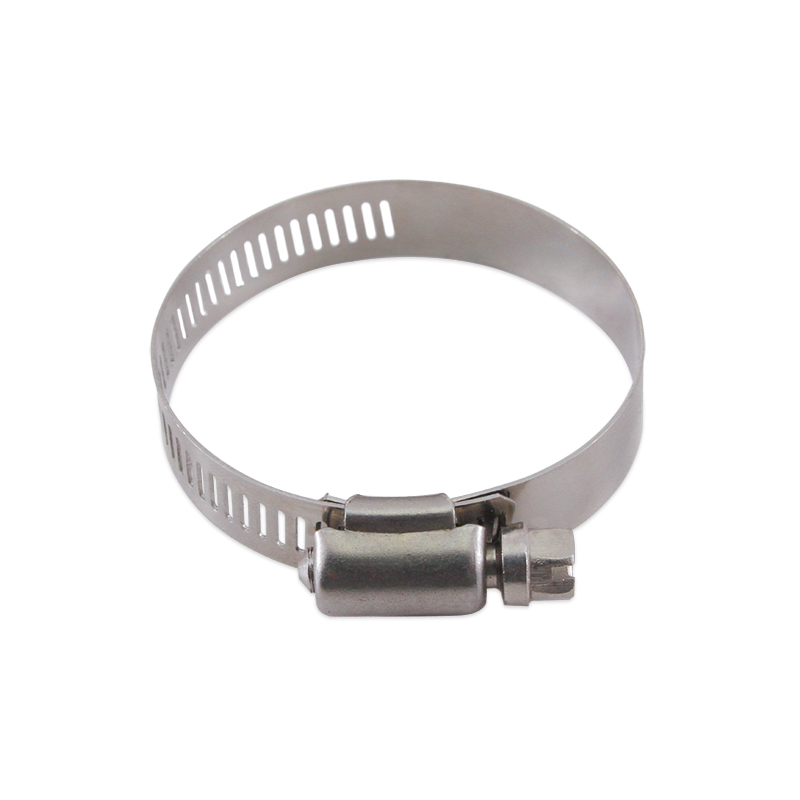

The Mishimoto MMCLAMP-WG-32HT is a High-Torque Worm Gear Clamp built from stainless steel to secure hoses, couplers, and pipes with an outer diameter of 0.71in to 1.26in (18mm to 32mm). As part of the Mishimoto Fabrication lineup, this clamp is engineered for a dependable, long-lasting seal wherever a worm gear clamp is needed.
Every fabrication project depends on components that hold up over time, and this Mishimoto worm gear clamp delivers exactly that. Its stainless steel construction resists corrosion longer than typical zinc-plated clamps, so the clamp keeps its clamping force and appearance even in demanding environments. The worm gear design allows for quick, easy tightening and precise adjustment, and because the clamp is reusable, it can be removed and reinstalled as needed during service or troubleshooting. Sold in packs of 10, it’s a practical solution for shops, fabricators, and enthusiasts who need reliable clamps on hand for a variety of hose and coupler diameters, from vacuum lines up to larger intake pipes.
Vehicle Applications
This High-Torque Worm Gear Clamp is a universal fabrication component rather than a vehicle-specific part, designed to clamp any hose, coupler, or pipe with an outer diameter between 0.71in and 1.26in (18mm-32mm). Because Mishimoto offers this worm gear clamp in a wide range of additional sizes, it can be matched to fit everything from small vacuum lines to larger intake pipes across many vehicle platforms and fabrication builds.
Features
- Securely clamps pipes, couplers, and hoses with an outer diameter from 0.71-1.26in (18mm-32mm)
- Worm gear design for quick and easy tightening
- Stainless steel construction resists corrosion longer than zinc-plated clamps
- Reusable clamp design
- Sold in packs of 10
- Available in natural, black, or gold finish
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMCLAMP-WG-32HT
- Product Type: Fabrication
- Clamp Style: High-Torque Worm Gear Clamp
- Material: Stainless Steel
- Spring Material: Steel
- Color: Silver
- Finish: Plain
- Grade Type: Premium
- Reusable: Yes
- Band Width: 0.5in
- Minimum Diameter: 0.71in (18mm)
- Maximum Diameter: 1.26in (32mm)
- Recommended Tightening Torque: 35 in-lbs (4 Nm)
- SAE Size: 22
- Includes: (10) Mishimoto High-Torque Worm Gear Clamps, Mishimoto Lifetime Warranty
Frequently Asked Questions
What size hoses or pipes does the Mishimoto MMCLAMP-WG-32HT fit?
This High-Torque Worm Gear Clamp secures hoses, couplers, and pipes with an outer diameter from 0.71in to 1.26in (18mm to 32mm).
What material is this Mishimoto worm gear clamp made from?
It is made from stainless steel, which resists corrosion longer than zinc-plated clamps, and uses a steel spring.
Is this clamp reusable?
Yes, the Mishimoto High-Torque Worm Gear Clamp is designed to be reusable.
How many clamps come in a pack?
The clamps are sold in packs of 10, and this package includes (10) Mishimoto High-Torque Worm Gear Clamps.
What is the recommended tightening torque for this clamp?
The recommended tightening torque is 35 in-lbs (4 Nm).
Does this clamp come with a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
