Description

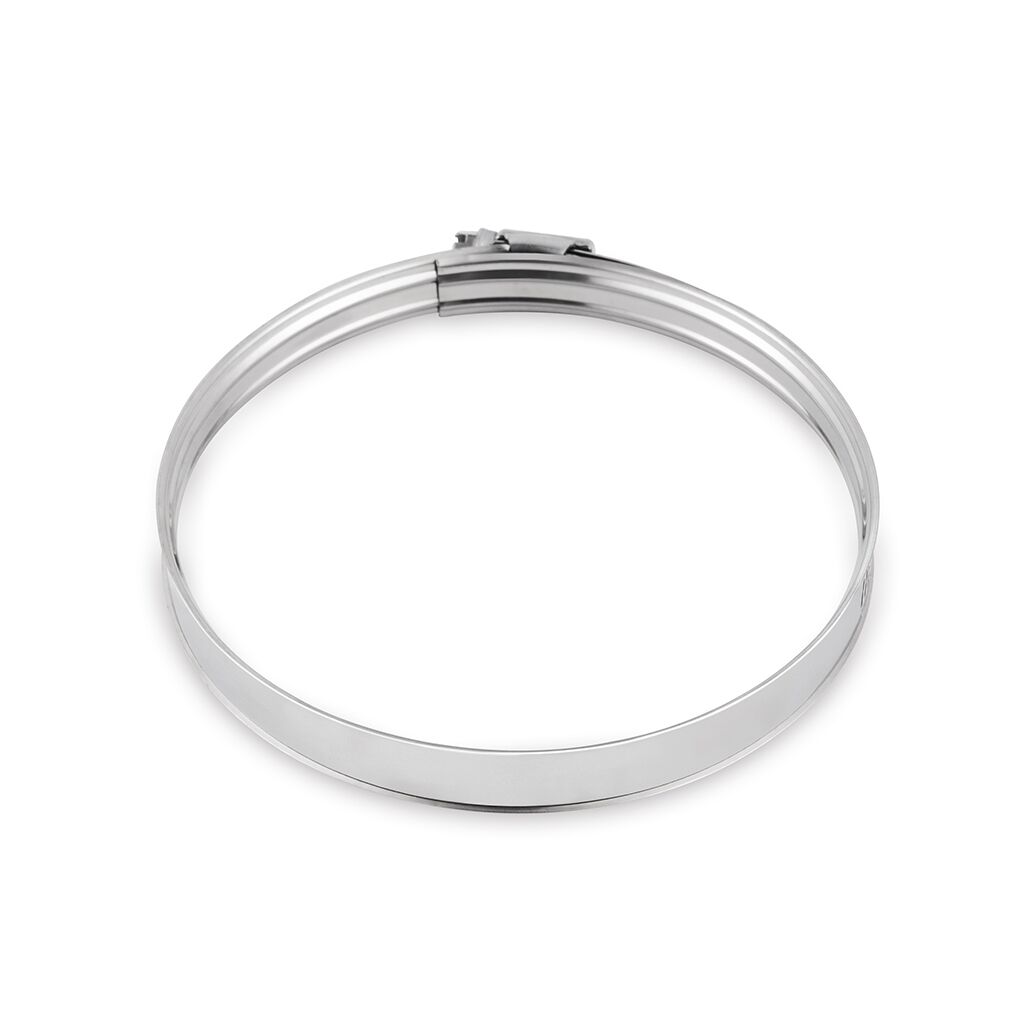

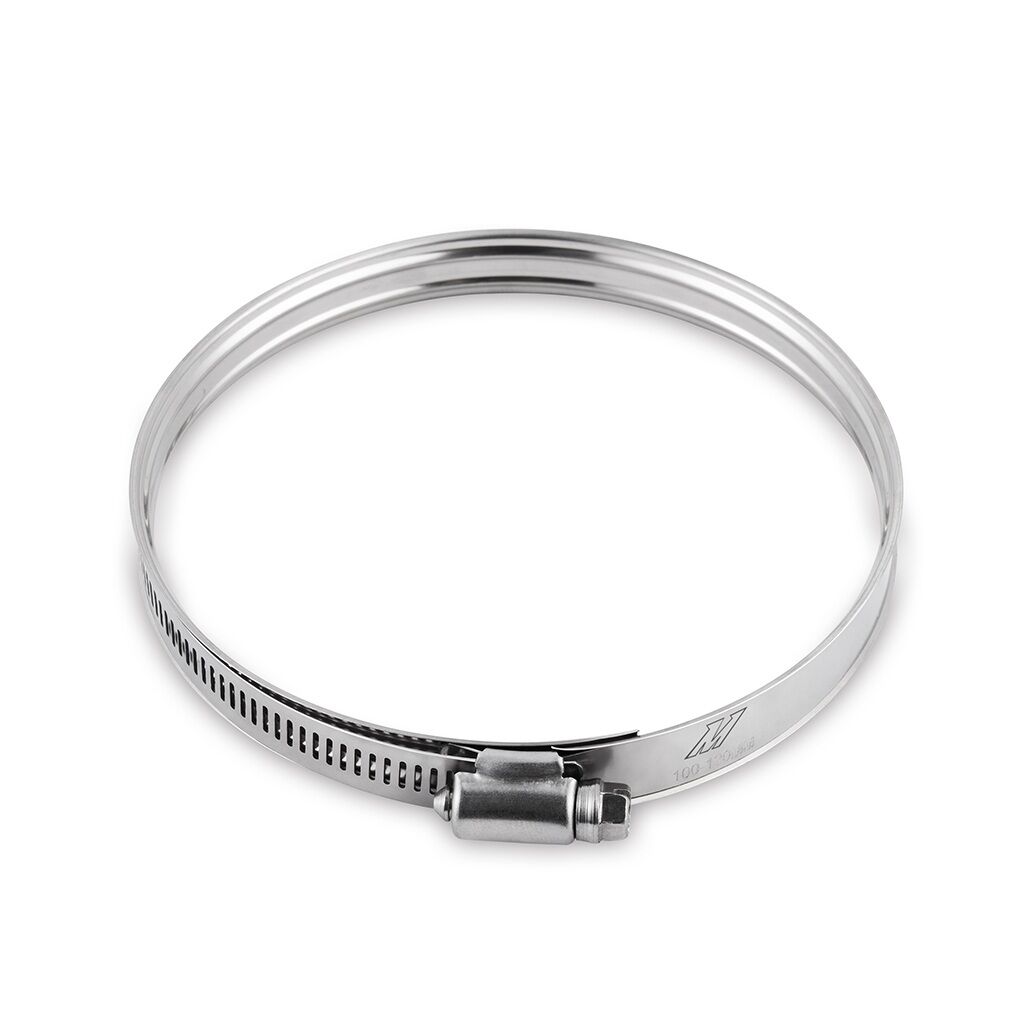

The Mishimoto High Torque Protective Worm Gear Clamp (MMCLAMP-WGP-95) is a Fabrication-category clamp built around an innovative double-ridge inner shield that both protects clamped material and locks in a secure seal. Sized to fit hoses, couplers, and pipes with an outer diameter of 3.07 to 3.74 inches (78mm to 95mm), this clamp is engineered for anything from vacuum lines to intake tubes. Each order includes two clamps, backed by the Mishimoto Lifetime Warranty.
As part of the Mishimoto Fabrication lineup, this worm gear clamp goes beyond a standard band clamp. Its double-ridge design concentrates compression force evenly around the circumference of the hose or tube, delivering equal 360-degree clamping pressure and a leak-free connection instead of the uneven pinch points common with basic clamps. The protective inner shield keeps soft or delicate materials safe from cuts and abrasions during and after installation, while the high torque worm gear mechanism allows for quick, controlled tightening. Constructed from 304 stainless steel, the clamp resists rust and corrosion, making it a durable choice for builders and technicians who want a dependable, reusable clamping solution in their fabrication toolkit.
Vehicle Applications
This is a universal-fit clamp rather than one designed for a specific make or model. It is intended to secure any hose, coupler, or pipe connection with an outer diameter between 3.07 and 3.74 inches (78mm to 95mm), covering everything from small vacuum lines up to larger intake tubes on a wide range of engine bay and fabrication projects.
Features
- Securely clamps hoses, couplers, and pipes with an outer diameter from 3.07 in to 3.74 in (78mm to 95mm)
- High torque worm gear design allows for quick and easy tightening
- Protective inner shield ensures safe, damage-free clamping of soft materials
- Innovative double-ridge design provides uniform 360-degree clamping force
- Double-ridge inner shield design provides concentrated compression force to ensure leak-free connections
- 304 Stainless Steel construction resists corrosion
- Sold in packs of 2
- Includes Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMCLAMP-WGP-95
- Product Type: Fabrication
- Material: Stainless Steel
- Color: Silver
- Finish: Plain
- Type: Worm Gear
- Clamp Style: Protective Worm Gear
- Grade Type: Premium
- Spring Material: Steel
- Minimum Diameter: 3.07 in
- Maximum Diameter: 3.74 in
- Band Width: 0.5 in
- Recommended Tightening Torque: 35 in-lbs (4 NM)
- SAE Size: 60
- Reusable: Yes
- Includes: (2) Mishimoto High Torque Protective Worm Gear Clamps, 3.07-in to 3.74-in (78mm-95mm), Mishimoto Lifetime Warranty
Frequently Asked Questions
What size hoses or tubes does the Mishimoto MMCLAMP-WGP-95 clamp fit?
It fits hoses, couplers, and pipes with an outer diameter ranging from 3.07 in to 3.74 in (78mm to 95mm).
What material is this clamp made from?
The clamp is constructed from 304 stainless steel, which resists rust and corrosion.
How many clamps are included in this package?
The package includes two Mishimoto High Torque Protective Worm Gear Clamps sized 3.07-in to 3.74-in (78mm-95mm).
What makes the double-ridge design different from a standard hose clamp?
The double-ridge inner shield design concentrates compression force to provide equal 360-degree clamping pressure and leak-free connections, while also protecting the clamped material from cuts and abrasions.
What is the recommended tightening torque for this clamp?
The recommended tightening torque is 35 in-lbs (4 NM).
Is this clamp reusable, and what warranty does it include?
Yes, the clamp is reusable, and it is backed by the Mishimoto Lifetime Warranty.
