Description

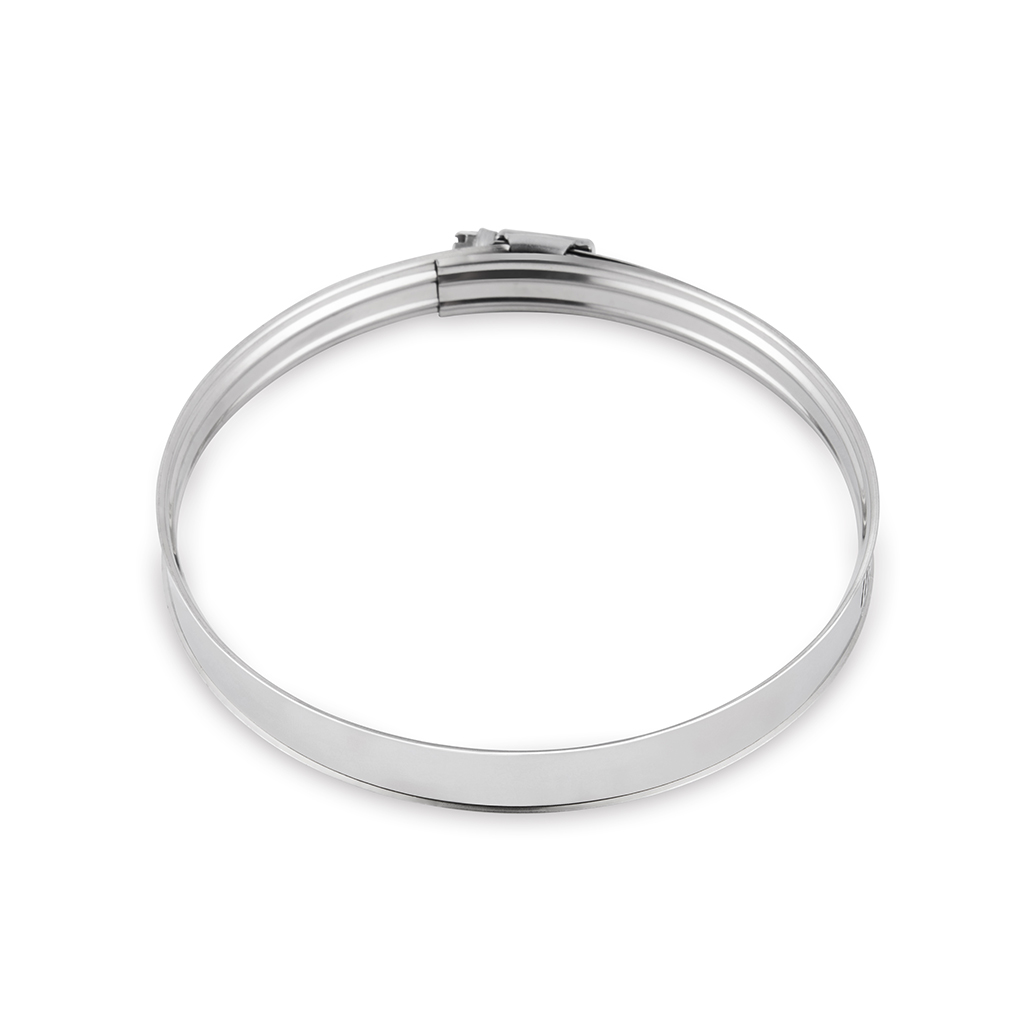

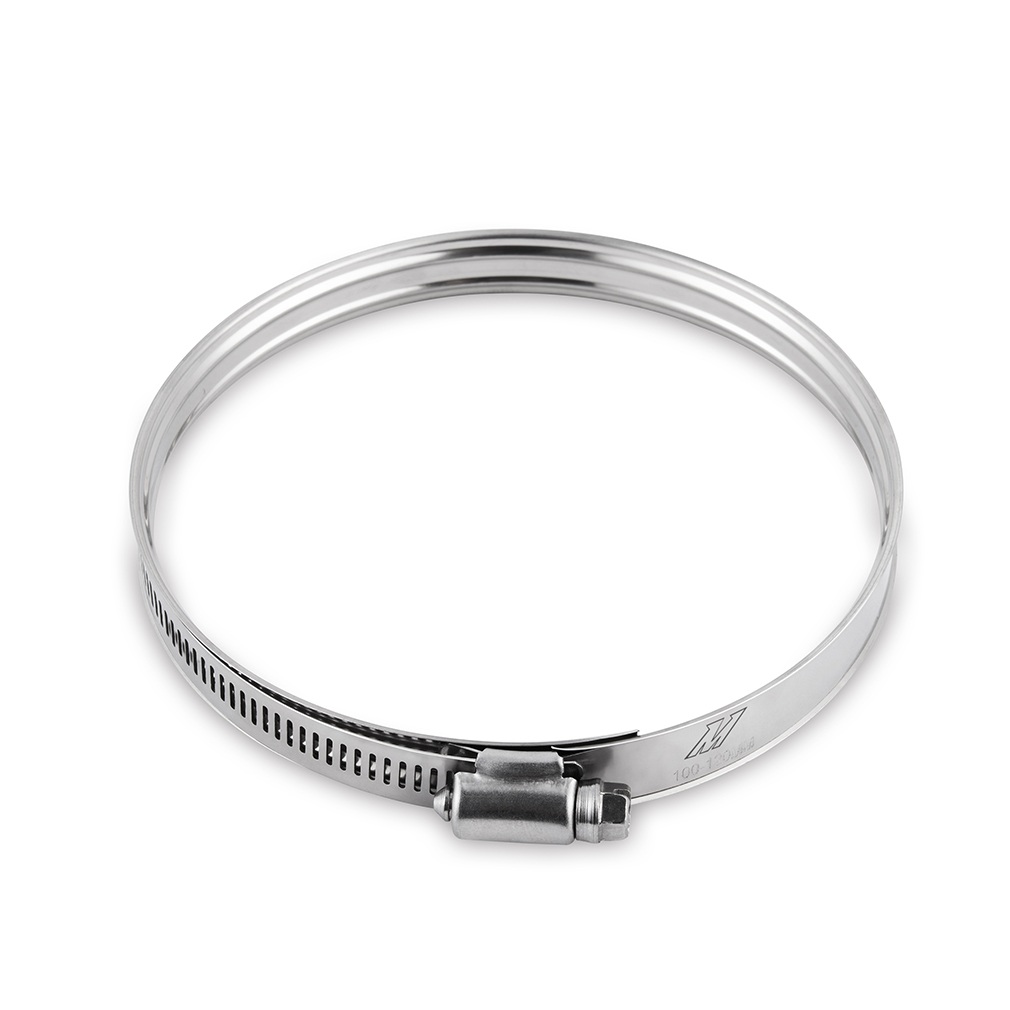

The Mishimoto High Torque Protective Worm Gear Clamp, part number MMCLAMP-WGP-120, is a purpose-built fabrication clamp engineered for hoses, couplers, and pipes measuring 3.94-in to 4.72-in (100mm-120mm) in outer diameter. What sets this clamp apart is its innovative double-ridge inner shield, a design that simultaneously protects the clamped material from cuts and abrasions while delivering superior, uniform clamping engagement around the full circumference of the hose.
Built from 304 Stainless Steel for long-term rust and corrosion resistance, this Mishimoto Fabrication clamp uses a high torque worm gear mechanism that allows for quick, controlled tightening. The double-ridge design concentrates compression force evenly, producing equal 360-degree clamping pressure and a leak-free seal at the connection point. Whether you’re securing vacuum lines, intake tubes, or larger diameter hoses and couplers in a custom fabrication project, this clamp is designed to hold tight without damaging the soft material underneath. Each clamp is reusable, finished in silver with a plain finish, and features a 0.5-in band width paired with a steel spring for consistent clamping tension.
Vehicle Applications
As a universal fabrication component, the Mishimoto High Torque Protective Worm Gear Clamp is not restricted to a single make or model. It is engineered to fit any hose, coupler, or pipe with an outer diameter between 3.94-in and 4.72-in (100mm-120mm), making it suitable for vacuum line, intake tube, and general hose clamping applications across a wide range of automotive and fabrication projects where this diameter range is required.
Features
- Securely clamps hoses, couplers, and pipes with an outer diameter from 3.94-in to 4.72-in (100mm-120mm)
- High torque worm gear design allows for quick and easy tightening
- Protective inner shield ensures safe, damage-free clamping of soft materials
- Innovative double-ridge design provides uniform 360-degree clamping force
- Double-ridge inner shield design concentrates compression force to ensure leak-free connections
- 304 Stainless Steel construction resists corrosion
- Reusable clamp design
- Sold in packs of 2
- Includes Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMCLAMP-WGP-120
- Product Type: Fabrication
- Material: Stainless Steel (304)
- Color: Silver
- Finish: Plain
- Type: Worm Gear
- Clamp Style: Protective Worm Gear
- Spring Material: Steel
- Grade Type: Premium
- Minimum Diameter: 3.94 in
- Maximum Diameter: 4.72 in
- Band Width: 0.5 in
- Recommended Tightening Torque: 35 in-lbs (4 NM)
- SAE Size: 76
- Reusable: Yes
- Includes: (2) Mishimoto High Torque Protective Worm Gear Clamps, 3.94-in to 4.72-in (100mm-120mm)
Frequently Asked Questions
What size hoses does the Mishimoto MMCLAMP-WGP-120 fit?
This clamp fits hoses, couplers, and pipes with an outer diameter ranging from 3.94-in to 4.72-in (100mm-120mm).
What material is this clamp made from?
The clamp is constructed from 304 Stainless Steel, which resists rust and corrosion, and uses a steel spring.
How many clamps are included in this package?
This product is sold in packs of 2, including two Mishimoto High Torque Protective Worm Gear Clamps sized 3.94-in to 4.72-in (100mm-120mm).
What is the recommended tightening torque for this clamp?
The recommended tightening torque is 35 in-lbs (4 NM).
Is this clamp reusable?
Yes, the Mishimoto High Torque Protective Worm Gear Clamp is reusable.
Does this clamp come with a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
