Description

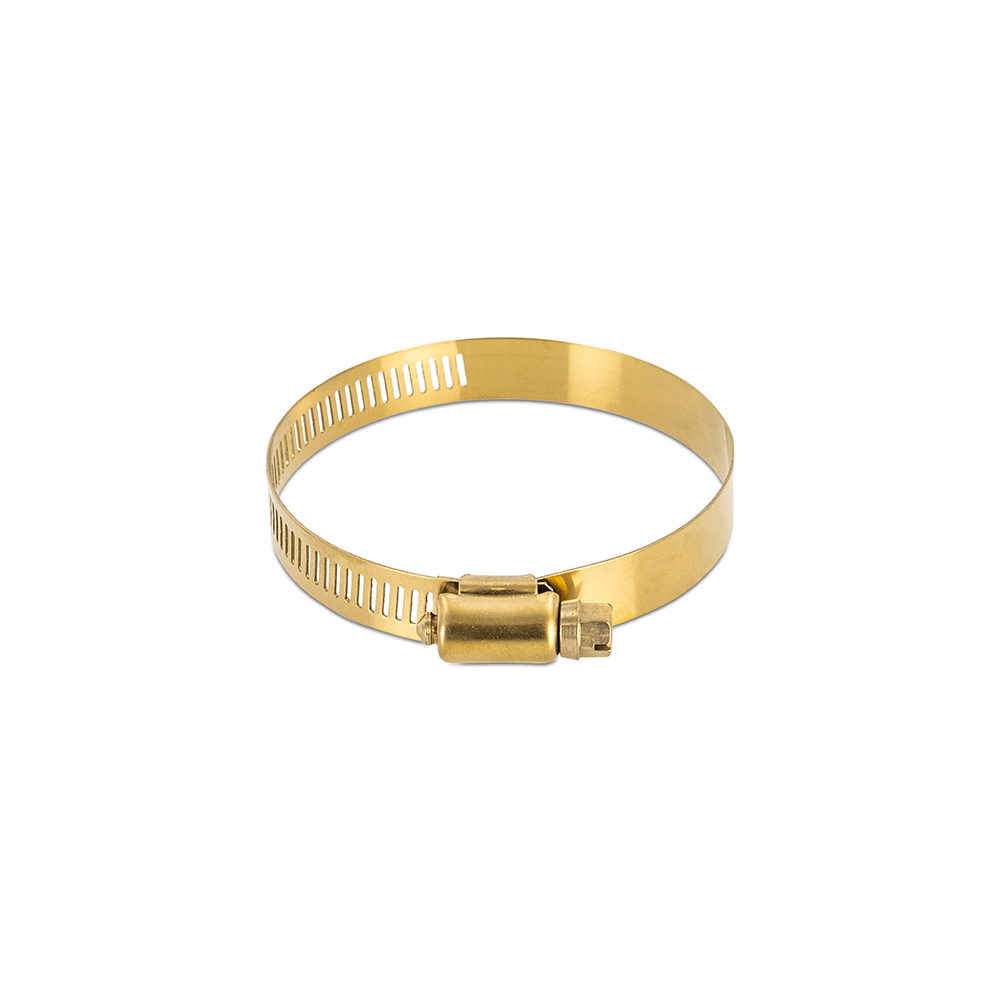

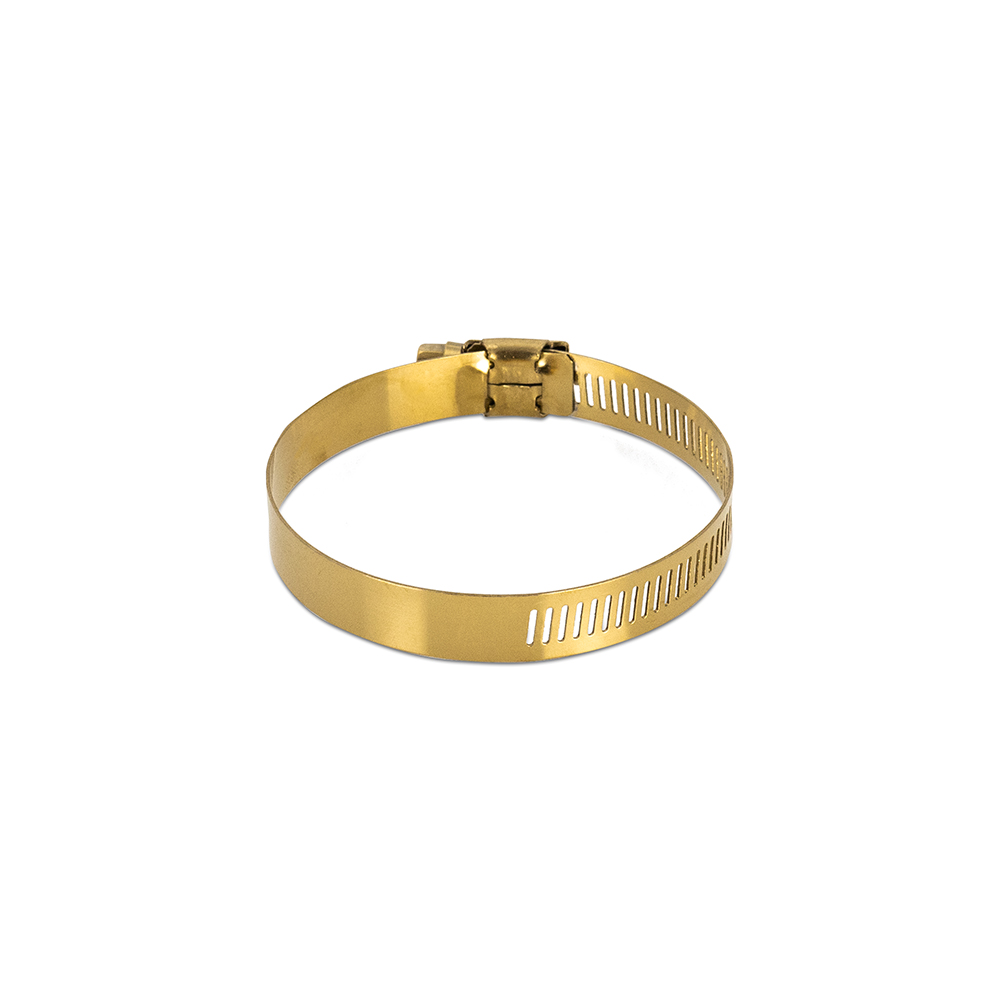

The Mishimoto High-Torque Worm Gear Clamp (MMCLAMP-WG-95HTGD) is a stainless steel worm gear clamp engineered to secure hoses, couplers, and pipes ranging from 2.83 to 3.74 inches (72mm to 95mm) in outer diameter. Finished in a distinctive gold tone, this clamp pairs corrosion-resistant stainless steel construction with a worm gear design built for fast, secure tightening. Sold as a pack of two and backed by the Mishimoto Lifetime Warranty, it’s a lasting solution for hose and coupler clamping needs.
Whether you’re building custom piping, servicing couplers, or replacing a worn factory clamp, this Mishimoto Fabrication clamp delivers a dependable seal. The worm gear mechanism allows for quick and easy tightening, while the stainless steel band and steel spring resist corrosion longer than standard zinc-plated clamps, making it well suited to engine bays and other environments exposed to heat, moisture, and road grime. The clamp is reusable, so it can be removed and reinstalled as needed during maintenance or fabrication work, and its Premium grade construction is designed with a recommended tightening torque of 35 in-lbs (4 NM) to help ensure a tight, lasting seal.
Vehicle Applications
This is a universal-fit worm gear clamp rather than a vehicle-specific component, making it suitable for any hose, coupler, or pipe measuring between 2.83 and 3.74 inches (72mm to 95mm) in outer diameter, whether that’s part of a custom fabrication project or a general automotive hose connection. Mishimoto also offers this high-torque worm gear clamp in a wide variety of other sizes to suit everything from vacuum lines to larger intake pipes, so you can match the right clamp to the job at hand.
Features
- Securely clamps pipes, couplers, and hoses with an outer diameter from 2.83-3.74 in (72mm-95mm)
- Worm gear design for quick and easy tightening
- Stainless steel construction resists corrosion longer than zinc-plated clamps
- Sold in packs of 2
- Optional wear-resistant titanium nitride gold coating provides unique engine bay styling
- Reusable design
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMCLAMP-WG-95HTGD
- Product Type: Fabrication
- Material: Stainless Steel
- Color: Gold
- Finish: Plain
- Type: Worm Gear
- Clamp Style: High-Torque Worm Gear Clamp
- Band Width: 0.5 in
- Minimum Diameter: 2.83 in
- Maximum Diameter: 3.74 in
- Spring Material: Steel
- Grade Type: Premium
- Recommended Tightening Torque: 35 in-lbs (4 NM)
- SAE Size: 60
- Reusable: Yes
- Includes: (2) Mishimoto High-Torque Worm Gear Clamps and Mishimoto Lifetime Warranty
Frequently Asked Questions
What size hoses or pipes does this clamp fit?
It fits an outer diameter range of 2.83 in to 3.74 in (72mm to 95mm).
What is this clamp made of?
It features a stainless steel band with a steel spring.
How many clamps come in a pack?
This clamp is sold in packs of 2.
Is this clamp reusable?
Yes, the clamp is reusable.
What is the recommended tightening torque?
The recommended tightening torque is 35 in-lbs (4 NM).
Does it come with a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
