Description

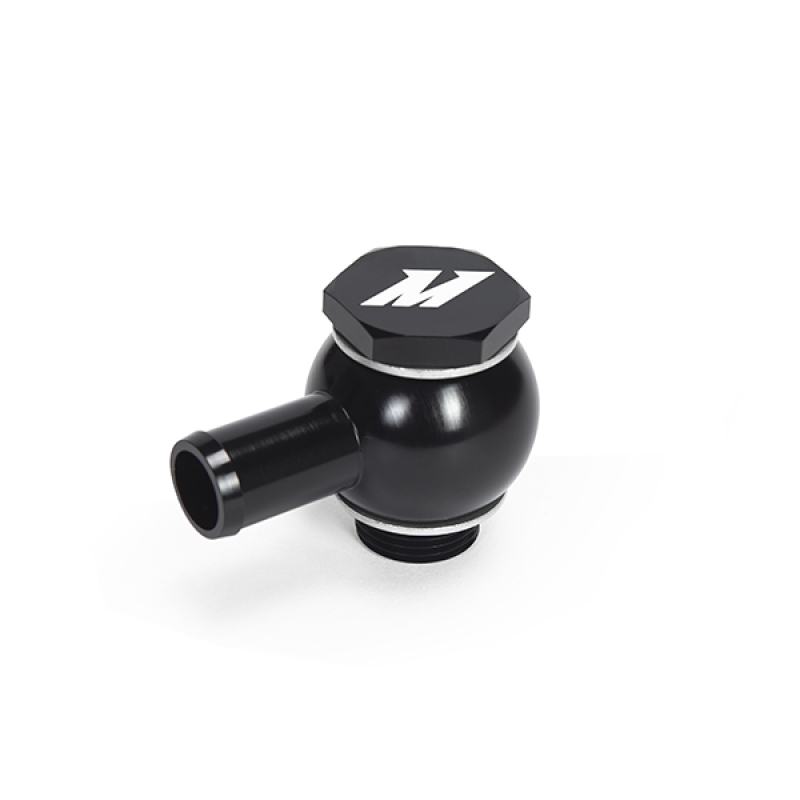

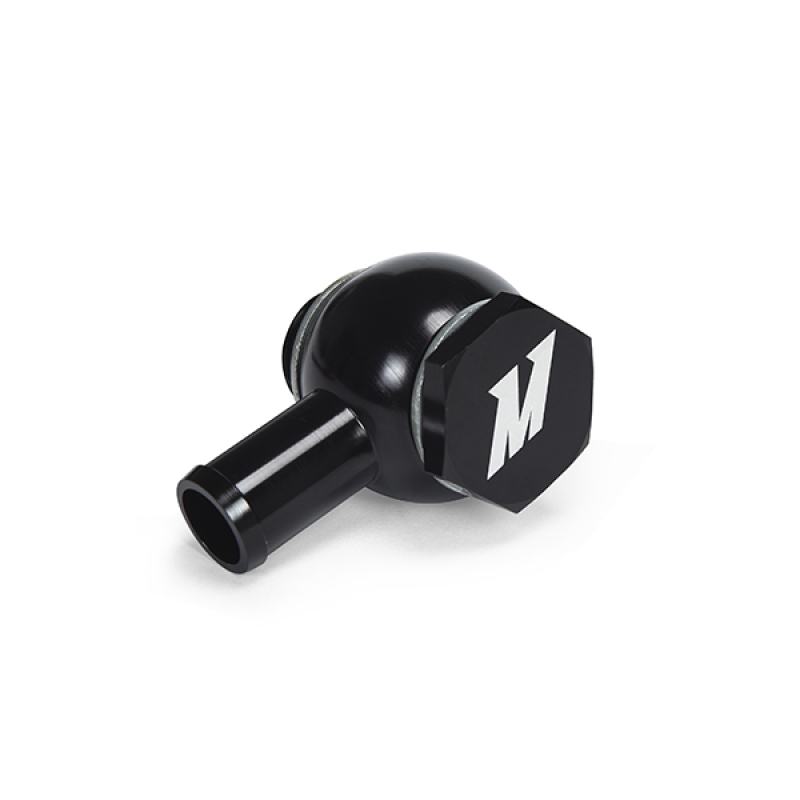

The Mishimoto Banjo Fitting with Bolt (MMBB-STBK) is a black anodized, 6061 aluminum fabrication component built with an M20 x 1.5 banjo bolt on one end and a 5/8-in straight hose barb connection on the other, backed by the Mishimoto Lifetime Warranty. CNC-machined for a precise fit, this fitting is purpose-built to give installers clean, exact hose routing where a 90-degree banjo connection is required.
As part of Mishimoto’s Fabrication lineup, this aluminum banjo fitting allows for precise routing of baffled oil catch can hose, converting an M20 x 1.5 banjo bolt connection into a straight, 5/8-in push-on hose barb. Two included dowty oil seals help ensure a properly sealed connection at the banjo bolt interface, and the durable 6061 aluminum construction with a black anodized finish is designed to hold up to the demands of fabrication and catch can plumbing work. Whether you’re building a custom oil catch can setup or need a reliable M20 x 1.5 to 5/8-in hose adapter, this Mishimoto fitting is engineered to make the connection straightforward.
Vehicle Applications
This is a universal Mishimoto Fabrication component defined by its thread and hose sizing rather than a single vehicle platform. Because it features a standard M20 x 1.5 banjo bolt inlet and a 5/8-in straight hose barb outlet, it is intended for use in oil catch can plumbing and similar fabrication applications — such as Mishimoto Baffled Oil Catch Can installations — wherever these matching thread and hose dimensions are required.
Features
- Allows for precise routing of baffled oil catch can hose
- Features M20 x 1.5 banjo bolt connection to a straight push-on fitting for 5/8-in hose
- Constructed from 6061 aluminum and CNC-machined
- Includes two dowty oil seals
- Finished in black anodized coating
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMBB-STBK
- Product Type: Fabrication
- Material: Aluminum (6061)
- Color: Black
- Thread Size: M20 – 1.5
- Thread Type Standard: Metric
- Inlet: M20 x 1.5
- Outlet: 5/8-in Hose Barb
- Fitting Angle: 90 Banjo
- Inside Diameter: 20 mm

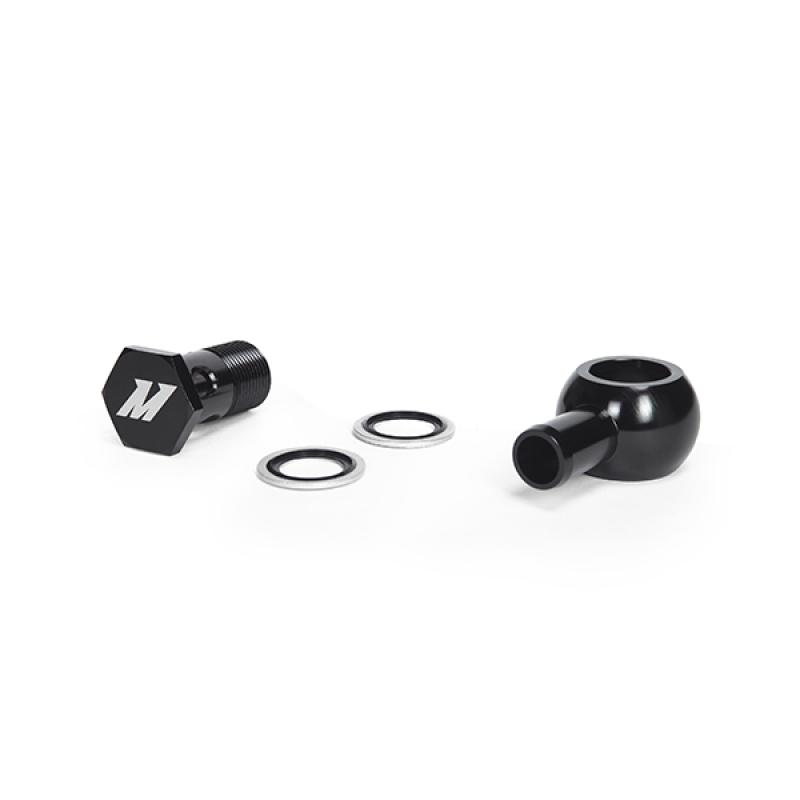

- Purchase Includes: 5/8-in Straight Banjo Fitting, M20 x 1.5 Banjo Bolt, Dowty Seals, Mishimoto Lifetime Warranty
- Torque Spec: 15-25 ft-lb for all straight fittings and banjo bolts; do not exceed the maximum torque rating of 35 ft-lb
Frequently Asked Questions
What material is the Mishimoto MMBB-STBK banjo fitting made from?
It is made from 6061 aluminum and finished in a black anodized coating.
What connections does this banjo fitting have?
It has an M20 x 1.5 banjo bolt connection and a straight push-on connection for 5/8-in hose.
Does the fitting come with seals?
Yes, it includes two dowty oil seals.
What torque should be used when installing this fitting?
Use 15-25 ft-lb for all straight fittings and banjo bolts, and do not exceed the maximum torque rating of 35 ft-lb.
What is included with the purchase of the MMBB-STBK?
Purchase includes the 5/8-in straight banjo fitting, an M20 x 1.5 banjo bolt, dowty seals, and the Mishimoto Lifetime Warranty.
Is this fitting covered by a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
