Description

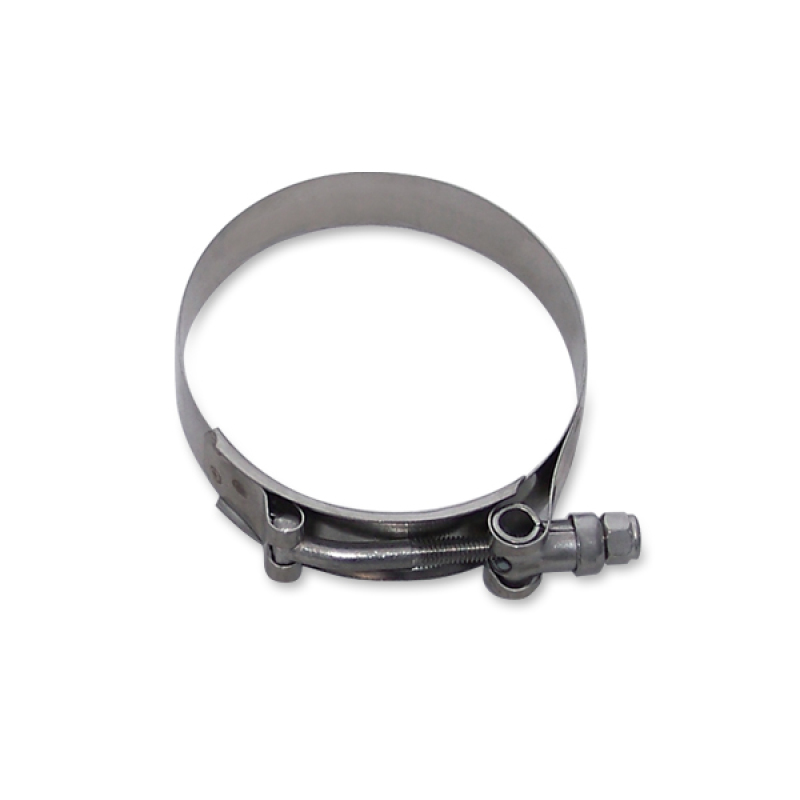

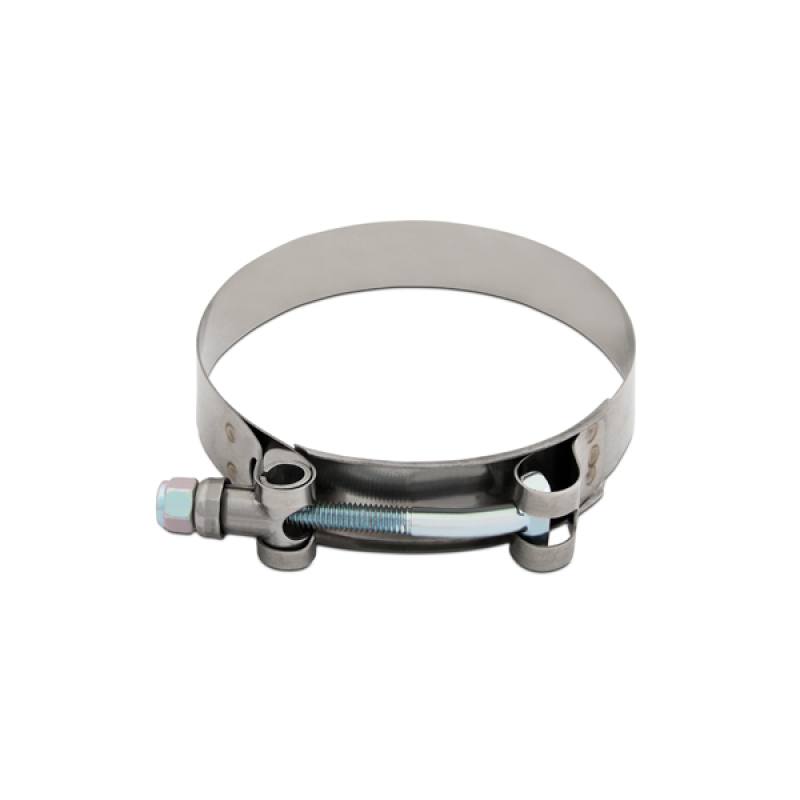

The Mishimoto MMCLAMP-25 is a stainless steel T-bolt clamp engineered for fabrication and repair work that calls for more holding power than a standard worm gear clamp can deliver. Sized for pipes, couplers, and hoses with an outer diameter from 2.36″ (59.99 mm) to 2.68″ (68 mm), this clamp pairs a durable stainless steel band with an included self-locking nut to stay tight through vibration and movement.
Part of the Mishimoto Fabrication lineup, the MMCLAMP-25 is built from the same stainless steel used in Mishimoto’s worm gear clamps, giving it corrosion resistance that outlasts zinc-plated alternatives. The T-bolt design distributes clamping force evenly around the band for a stronger, more secure grip than a traditional screw-style clamp, making it a practical choice for custom piping, silicone couplers, and other hose connections that require a dependable seal. Each clamp is sold individually and is reusable, so it can be removed and reinstalled as a build evolves. Like other Mishimoto clamps, the MMCLAMP-25 is backed by the Mishimoto Lifetime Warranty.
Vehicle Applications
As a universal fabrication component, the Mishimoto MMCLAMP-25 T-bolt clamp is not limited to a specific make or model. It is designed to secure any pipe, coupler, or hose that falls within its 2.36″ to 2.67″ diameter range, making it a versatile option for custom piping, intercooler plumbing, and hose fabrication across a wide variety of projects and builds.
Features
- Securely clamps pipes, couplers, and hoses with an outer diameter from 2.36″ (59.99 mm) to 2.68″ (68 mm)
- T-bolt design provides a strong and secure grip
- Included self-locking nut prevents loosening with movement and vibration
- Stainless steel construction resists corrosion longer than zinc-plated clamps
- Reusable design allows for repeated installation
- Clamps sold individually
- Backed by the Mishimoto Lifetime Warranty

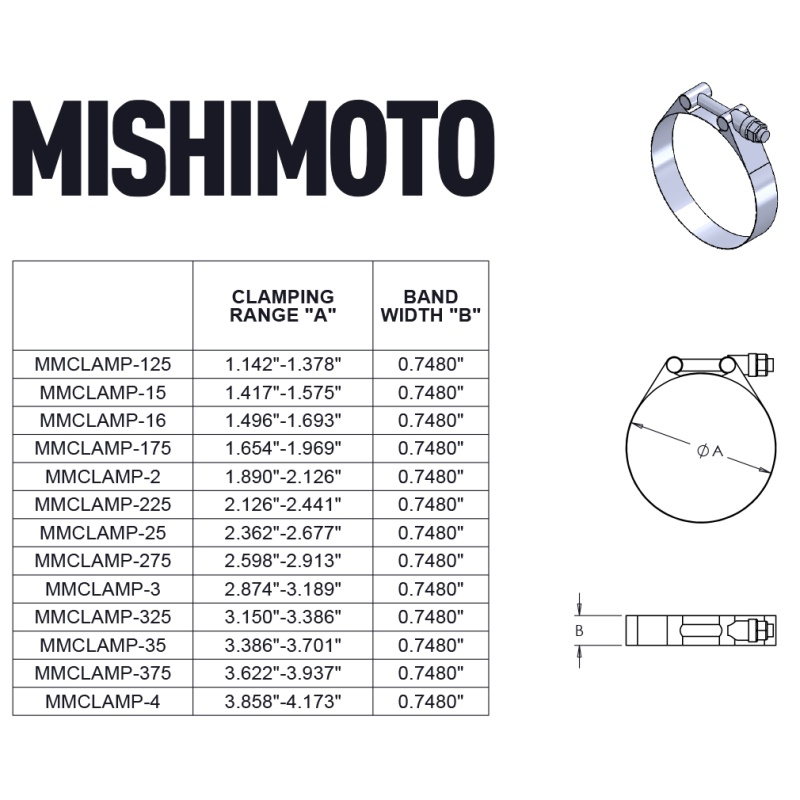

Specifications
- Brand: Mishimoto
- Part Number: MMCLAMP-25
- Product Type: Fabrication
- Material: Stainless Steel
- Color: Silver
- Type: T-Bolt
- Finish: Plain
- Size: 2.5 in
- Maximum Diameter: 2.67 in
- Minimum Diameter: 2.36 in
- Band Width: 0.75 in
- Spring Material: Steel
- Grade Type: Premium
- Reusable: Yes
- SAE Size: 44
- Recommended Tightening Torque: 27 in-lbs (3 NM)
- Clamp Style: T-Bolt Clamp
- Includes: (1) Mishimoto Stainless Steel T-Bolt Clamp
Frequently Asked Questions
What is the diameter range for the Mishimoto MMCLAMP-25 T-bolt clamp?
It clamps pipes, couplers, and hoses with an outer diameter from 2.36″ (59.99 mm) to 2.68″ (68 mm).
What material is the MMCLAMP-25 made from?
It is made from stainless steel, the same material used in Mishimoto’s worm gear clamps.
Does the clamp include a locking nut?
Yes, it includes a self-locking nut that helps prevent loosening from movement and vibration.
Is the Mishimoto MMCLAMP-25 reusable?
Yes, this T-bolt clamp is reusable.
What is the recommended tightening torque for this clamp?
The recommended tightening torque is 27 in-lbs (3 NM).
Is this clamp sold individually or in a set?
Clamps are sold individually.
