Description
The Mishimoto MMCLAMP-325 is a stainless steel T-bolt clamp engineered to secure pipes, hoses, and couplers with an outer diameter between 3.15 inches (80.01 mm) and 3.39 inches (86 mm). Unlike a standard worm gear clamp, this T-bolt clamp is built for projects that demand more clamping force, using the same durable stainless steel found in Mishimoto’s worm gear clamp lineup. A 0.75-inch band and an included self-locking nut work together to keep the clamp seated tight even under vibration.
As part of Mishimoto’s Fabrication lineup, this T-bolt clamp is a purpose-built solution for fabricators, tuners, and DIYers who need more reliable clamping force than a typical worm gear clamp can offer. The T-bolt design distributes clamping pressure evenly around the band, and because the clamp is reusable, it can be removed and reinstalled as a project evolves. Stainless steel construction is intended to resist corrosion longer than zinc-plated clamps, making this a practical choice for piping and engine bay applications where long-term durability matters. Each clamp is sold individually and is backed by the Mishimoto Lifetime Warranty.
Vehicle Applications
The Mishimoto MMCLAMP-325 T-bolt clamp is not vehicle-specific; rather, it is sized to fit any pipe, coupler, or hose with an outer diameter from 3.15 inches (80.01 mm) up to 3.39 inches (86 mm). This makes it a versatile option for a wide range of fabrication and piping projects wherever a clamp in this diameter range is required.
Features
- Securely clamps pipes, couplers, and hoses with an outer diameter from 3.15″ (80.01 mm) to 3.39″ (86 mm)
- T-bolt design provides a strong and secure grip
- Included self-locking nut prevents loosening from movement and vibration
- Stainless steel construction resists corrosion longer than zinc-plated clamps
- Reusable design
- An optional wear-resistant titanium nitride gold coating is also offered for unique engine bay styling
- Clamps sold individually
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMCLAMP-325
- Product Type: Fabrication
- Clamp Style: T-Bolt Clamp
- Material: Stainless Steel
- Spring Material: Steel
- Color: Silver
- Finish: Plain
- Grade Type: Premium

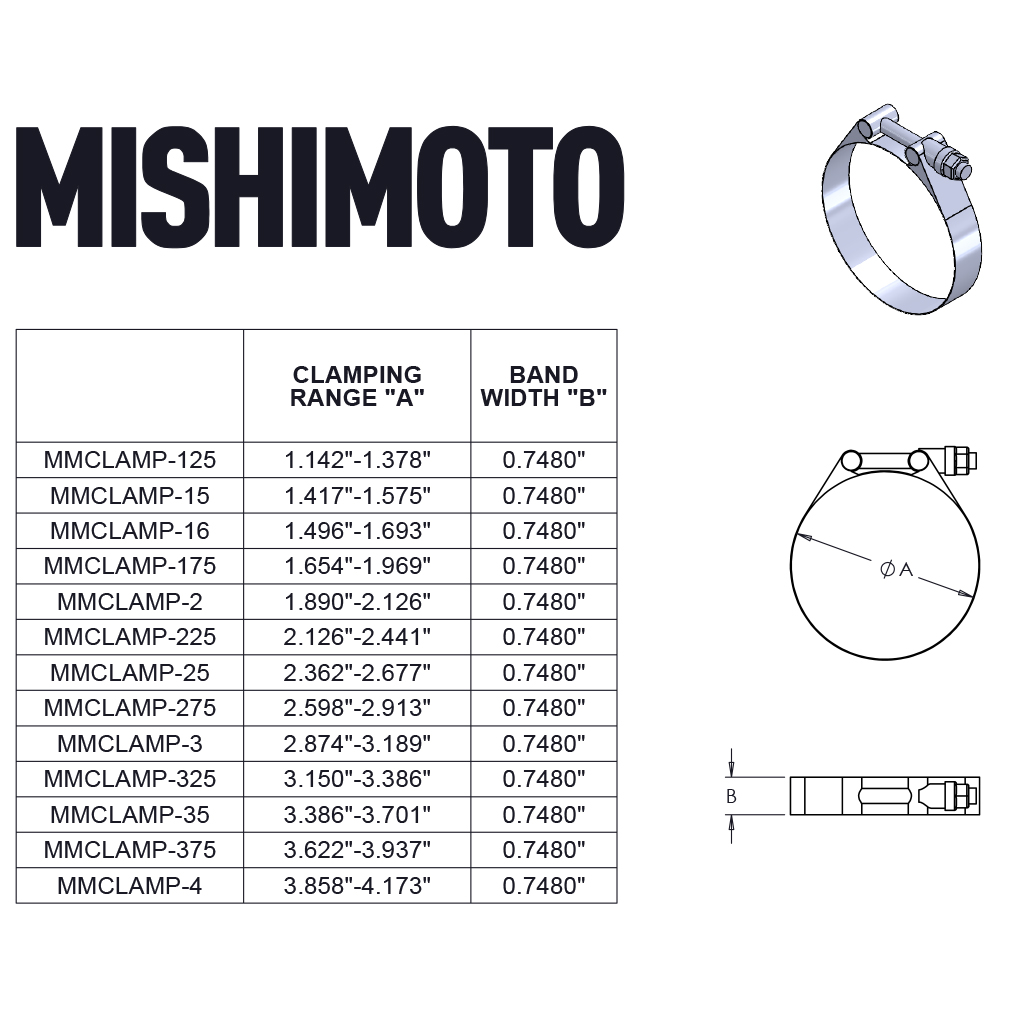

- Band Width: 0.75 in
- Minimum Diameter: 3.15 in (80.01 mm)
- Maximum Diameter: 3.39 in (86 mm)
- SAE Size: 56
- Reusable: Yes
- Recommended Tightening Torque: 27 in-lbs (3 NM)
- Includes: (1) Mishimoto Stainless Steel T-Bolt Clamp
Frequently Asked Questions
What diameter range does the Mishimoto MMCLAMP-325 T-bolt clamp fit?
It secures pipes, couplers, and hoses with an outer diameter from 3.15 inches (80.01 mm) to 3.39 inches (86 mm).
Is the Mishimoto MMCLAMP-325 clamp reusable?
Yes, this T-bolt clamp is reusable.
What is the recommended tightening torque for this clamp?
The recommended tightening torque is 27 in-lbs (3 NM).
What is the clamp made from?
It is built from stainless steel with a steel spring, the same stainless steel used in Mishimoto’s worm gear clamps.
Does this clamp come with a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
How many clamps are included?
Clamps are sold individually.
