Description

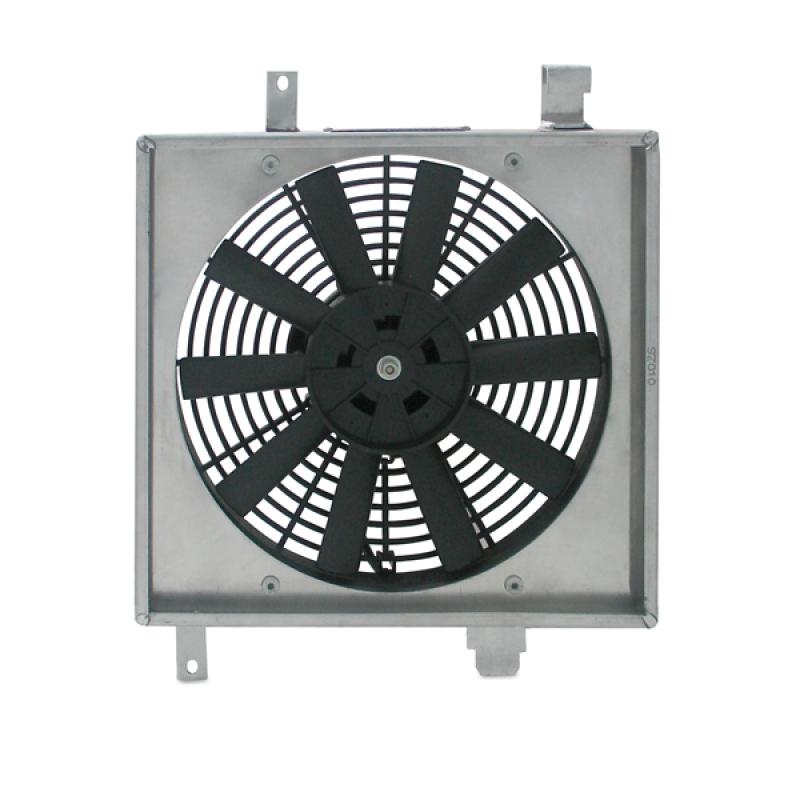

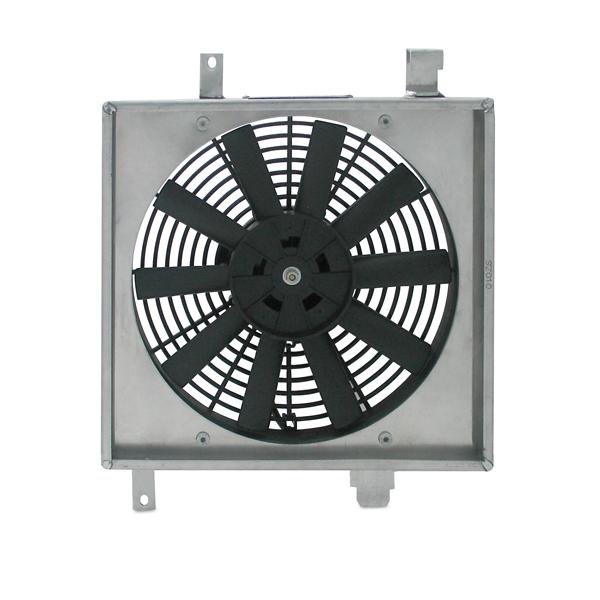

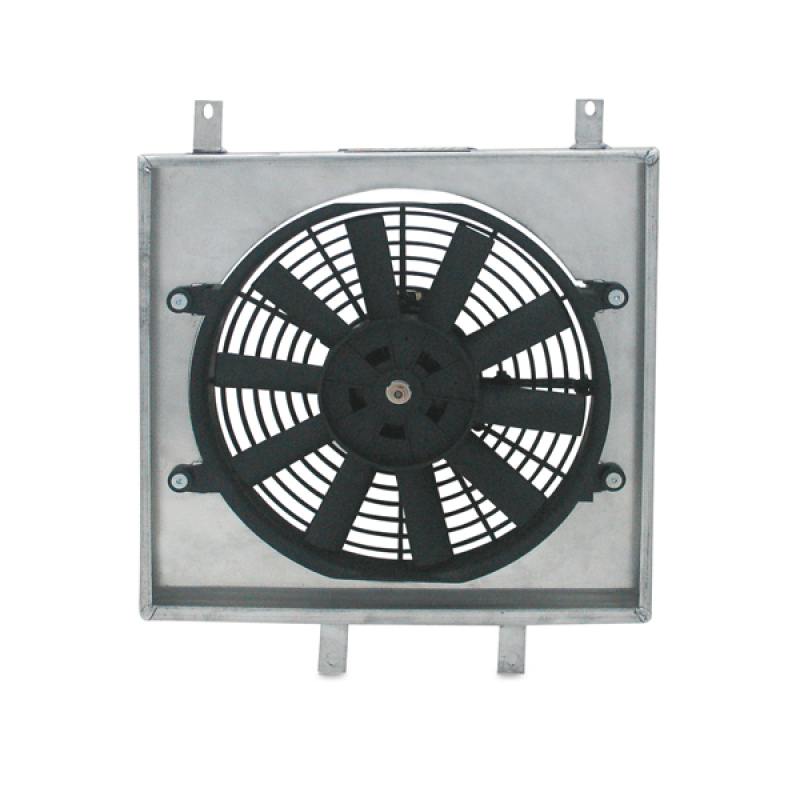

The Mishimoto MMFS-DBP-26 is the Mishimotorsports aluminum fan shroud kit purpose-built for the Mishimoto dual-pass race radiator, measuring 22in x 18in x 3.5in and pairing a lightweight polished aluminum housing with a single 16-inch slim electric fan. This isn’t a generic shroud — it’s engineered specifically to mate with the dual-pass race radiator platform and deliver focused, high-volume airflow where it matters most.
Built for serious cooling performance, this Mishimoto fan shroud kit is significantly lighter than standard shrouds while still directing more air through the dual-pass race radiator core to push excess heat out of the engine bay. The included 16-inch electric fan spins 10 straight plastic blades finished in black and is rated to move up to 1850 CFM of airflow, giving your cooling system the extra push it needs on the hottest days or hardest runs. Beyond raw airflow, the shroud also does double duty by securing the fan blades in place, helping protect surrounding engine components from potential fan-blade damage. As a plug-in, electrically driven unit with the fan motor included, it’s straightforward to wire into a performance cooling setup, though Mishimoto notes that fans may require additional wiring during installation.
Vehicle Applications
The Mishimoto MMFS-DBP-26 fan shroud kit is designed to fit with the Mishimoto dual-pass race radiator, making it a purpose-matched cooling upgrade for any application already running that specific radiator rather than a single factory vehicle fitment. If your build is centered around the Mishimoto dual-pass race radiator, this shroud and fan combination is the intended companion piece for maximizing airflow through that core.
Features
- Fits with the Mishimoto dual-pass race radiator
- Maximizes airflow through the radiator core

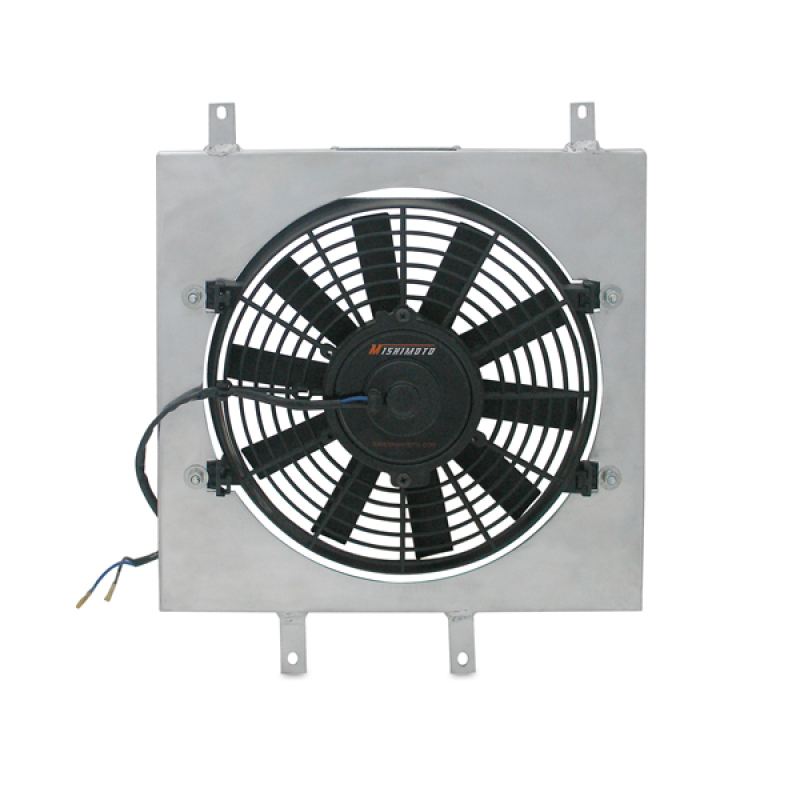

- Includes one 16-inch slim electric fan with 10 straight plastic blades

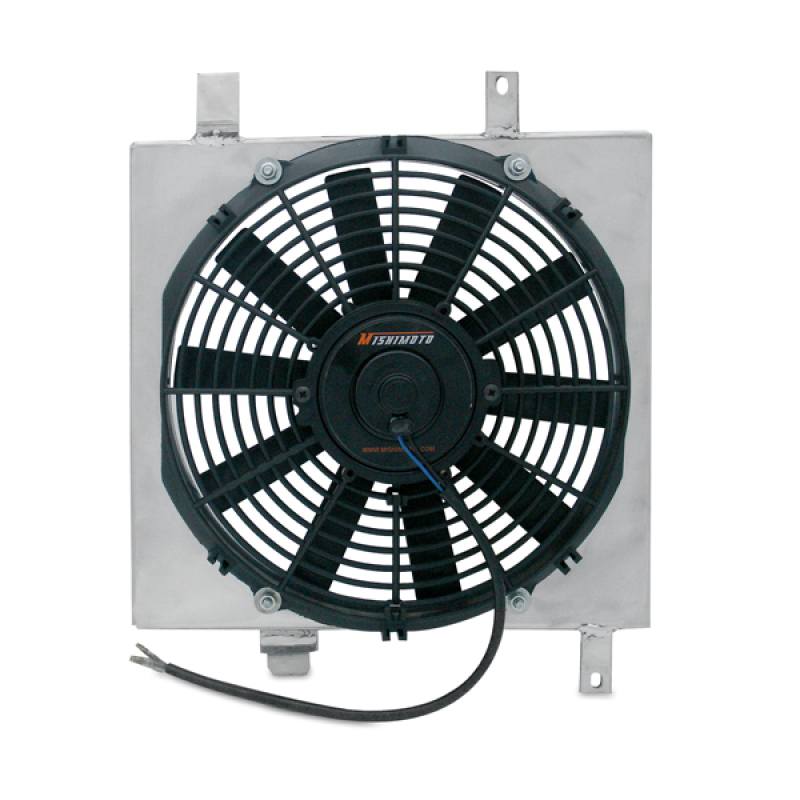

- Includes all mounting hardware for installation
- Polished aluminum housing finish
- Plug-in electrical fan connection with motor included
- Backed by the Mishimoto Lifetime Warranty
- Fans may require additional wiring
Specifications
- Brand: Mishimoto
- Part Number: MMFS-DBP-26
- Product Type: Cooling
- Shroud Dimensions: 22in (L) x 18in (H) x 3.5in (W)
- Shroud Material: Aluminum
- Shroud Color: Silver
- Housing Finish: Aluminum
- Grade Type: Performance
- Fan Quantity: 1 (16-inch)
- Fan Diameter: 16in
- Blade Quantity: 10
- Blade Material: Plastic
- Blade Type: Straight
- Blade Color: Black
- Maximum Airflow: 1850 CFM
- Electrical or Mechanical: Electrical
- Hardwired or Plug-In: Plug-In
- Motor Included: Yes
- Mounting Hardware Included: Yes
- Fan Clutch Mounted: No
- Control Module Included: No
- Kit Includes: (1) Aluminum Fan Shroud, (1) 16-inch Slim Electric Fan, Mishimoto Lifetime Warranty
Frequently Asked Questions
What does the Mishimoto MMFS-DBP-26 fan shroud kit include?
It includes one aluminum fan shroud, one 16-inch slim electric fan, all mounting hardware, and is backed by the Mishimoto Lifetime Warranty.
What are the dimensions of the Mishimoto fan shroud?
The shroud measures 22in x 18in x 3.5in.
What is the airflow rating of the included fan?
The 16-inch electric fan is rated for a maximum of 1850 CFM.
Does the fan require additional wiring during installation?
Mishimoto notes that fans may require additional wiring.
What radiator is this fan shroud kit designed to fit?
This kit is designed to fit with the Mishimoto dual-pass race radiator.
What material and finish does the shroud have?
The shroud is made from aluminum with a polished, silver-finished housing.
