Description

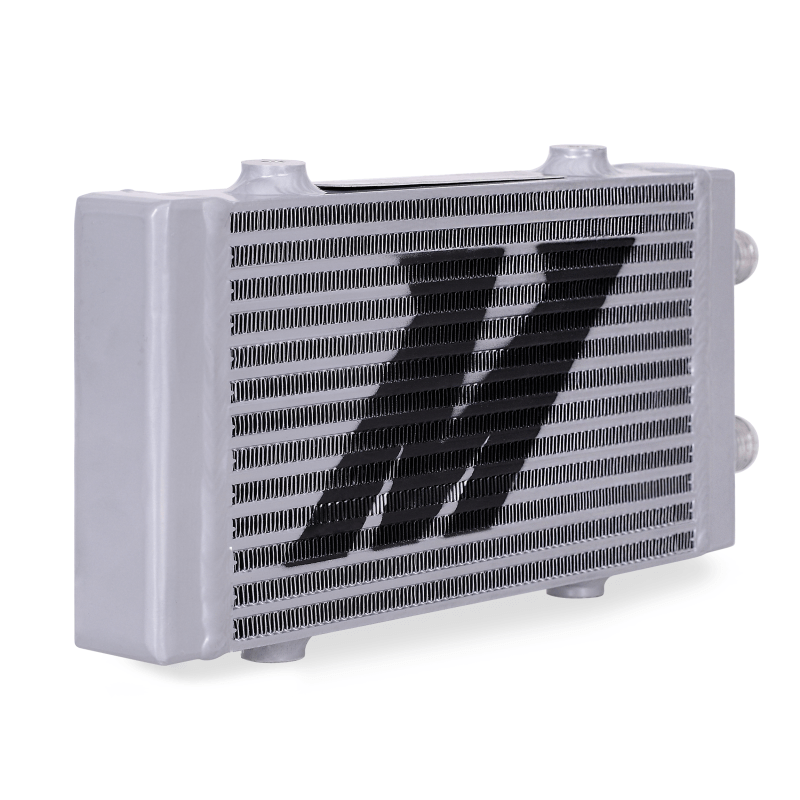

The Mishimoto MMOC-DP-SSL is a small dual pass race oil cooler finished in sleek silver, built around a bar-and-plate core that routes oil in one side, around the core, and back out the same side. Designed for tight engine bays and custom installs, this compact cooler pairs a durable aluminum core with CNC-machined end tanks and -10AN fittings, giving builders a serious tool for controlling oil temperature under hard driving.
Oil that runs too hot loses viscosity, the very property that keeps it thick and slippery enough to protect high-wear internal components. The Mishimoto oil cooler addresses this directly: its dual pass design maximizes fluid temperature reduction while keeping pressure loss to a minimum, and the added oil system capacity boosts overall cooling capability. Whether you’re chasing lap times or simply want more margin against heat soak, this Mishimoto cooler is engineered to keep oil in its optimal working range so the rest of the engine can do its job.
Vehicle Applications
This Mishimoto oil cooler is built as a universal, custom-application unit rather than a kit for one specific make or model. Its compact bar-and-plate core, M8x1.25 welded bungs for bracket mounting, and -10AN male fittings make it a versatile choice for fabricators and racers installing an oil cooler kit into a wide range of custom cooling setups where a small, dual pass core is needed.
Features
- Durable bar-and-plate cooler design for use in custom applications
- Dual pass design for optimal fluid temperature reduction
- M8x1.25 welded bungs for attaching brackets
- 10AN fittings for attaching oil lines
- 100-percent aluminum construction with CNC end tanks
- Reduces oil temperatures with minimal pressure loss
- Increased oil system capacity for increased cooling capability

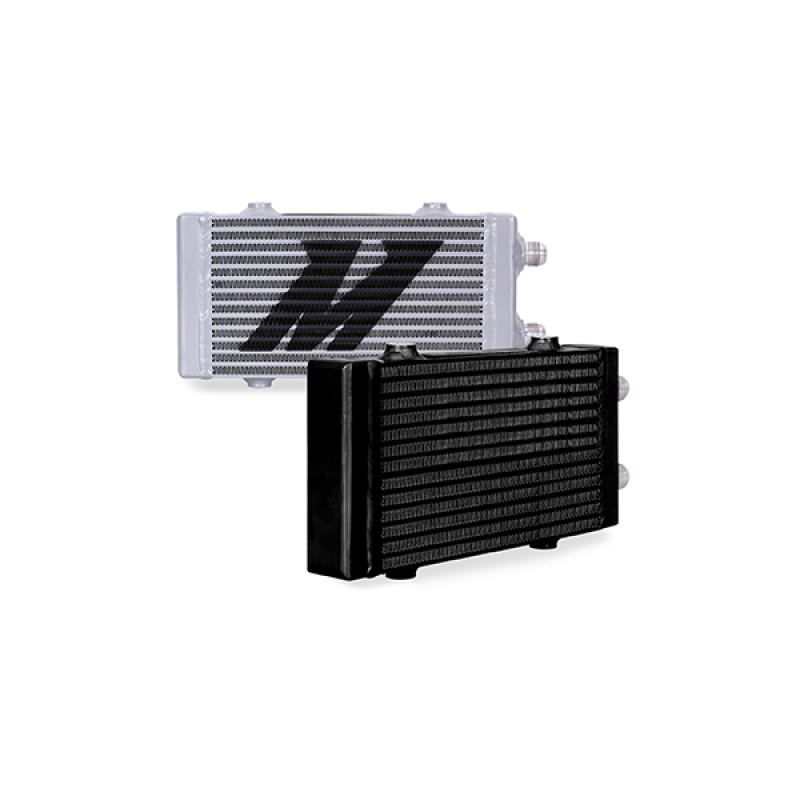

- Available in Sleek Silver or Stealth Black

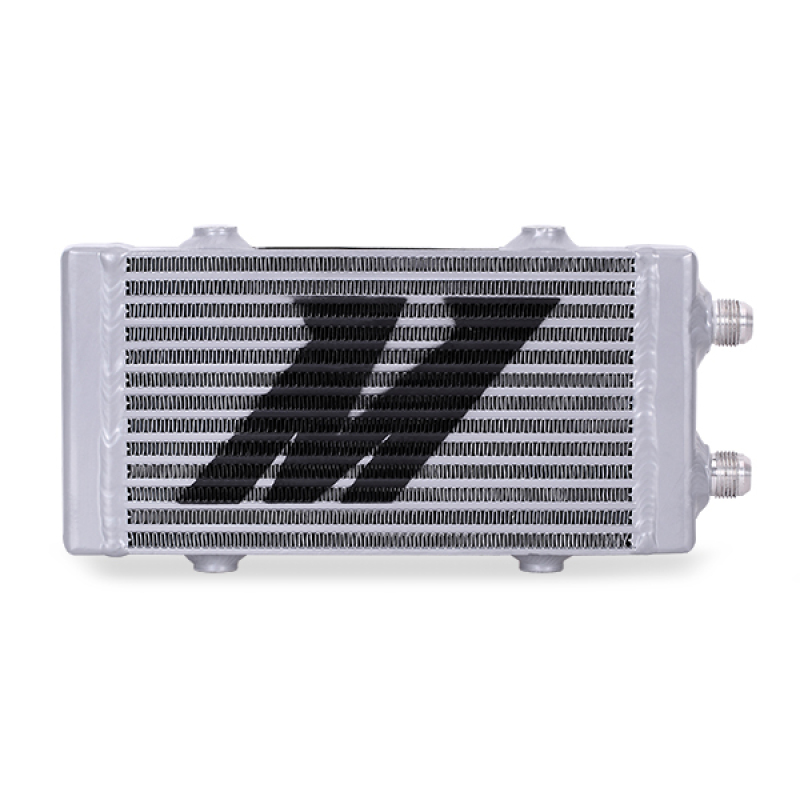

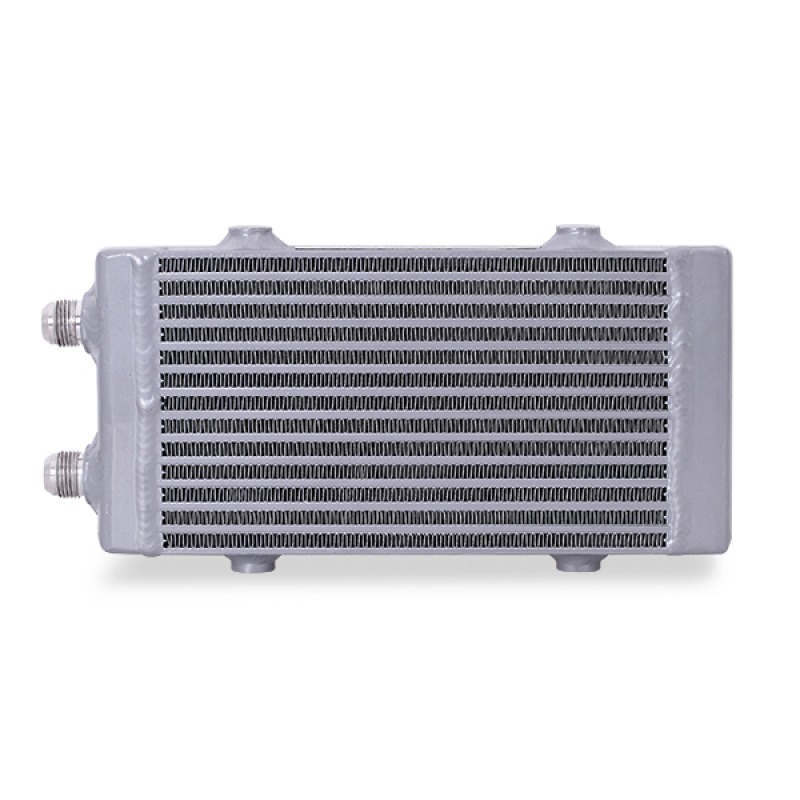

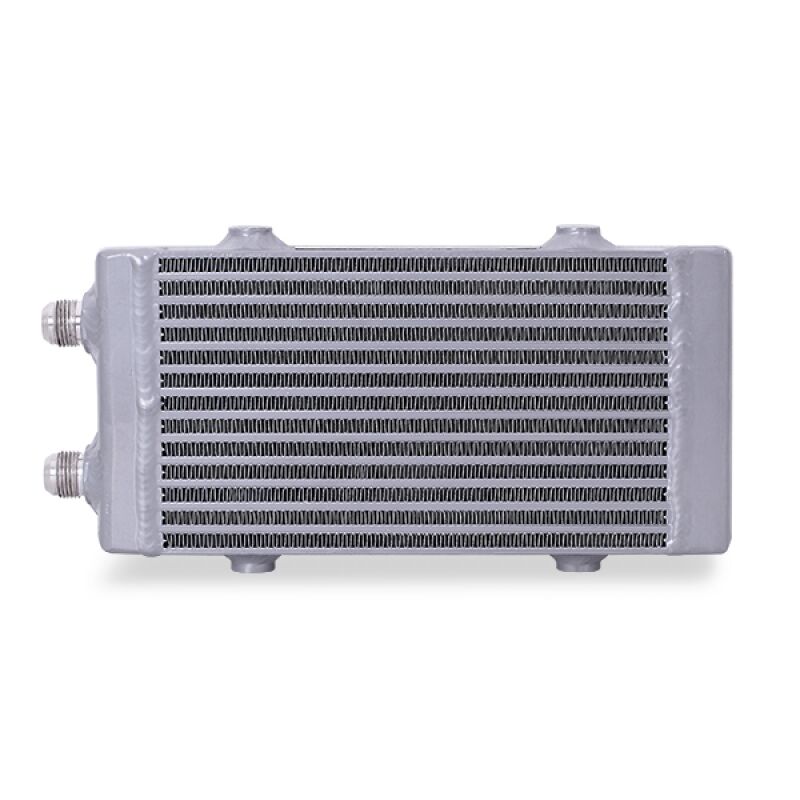

- Only one side of the silver oil coolers carries the Mishimoto “M” logo; the stealth black option has no logo
- Mishimoto Lifetime Warranty
Specifications
- Color / Core Color: Silver
- Finish: Anodized
- Core Type: Bar-and-Plate
- Grade Type: Performance
- Core Height: 5.51 in
- Core Thickness: 1.57 in
- Overall Width: 1.57 in
- Overall Height / Base Height: 6.3 in
- Overall Length: 12.48 in
- Inlet Fitting Type: AN Flare (-10AN), Male
- Outlet Fitting Type: AN Flare (-10AN), Male
- Inlet Outside Diameter: 0.625 in
- Outlet Outside Diameter: 0.625 in
- Fluid Capacity: 0.5 GA
- Cooler Fluid Capacity: 0.5 QT
- Includes: (1) Oil Cooler – Mishimoto Lifetime Warranty
Frequently Asked Questions
What color is the MMOC-DP-SSL oil cooler?
This version of the Mishimoto oil cooler is finished in sleek silver with an anodized finish.
What type of core does this cooler use?

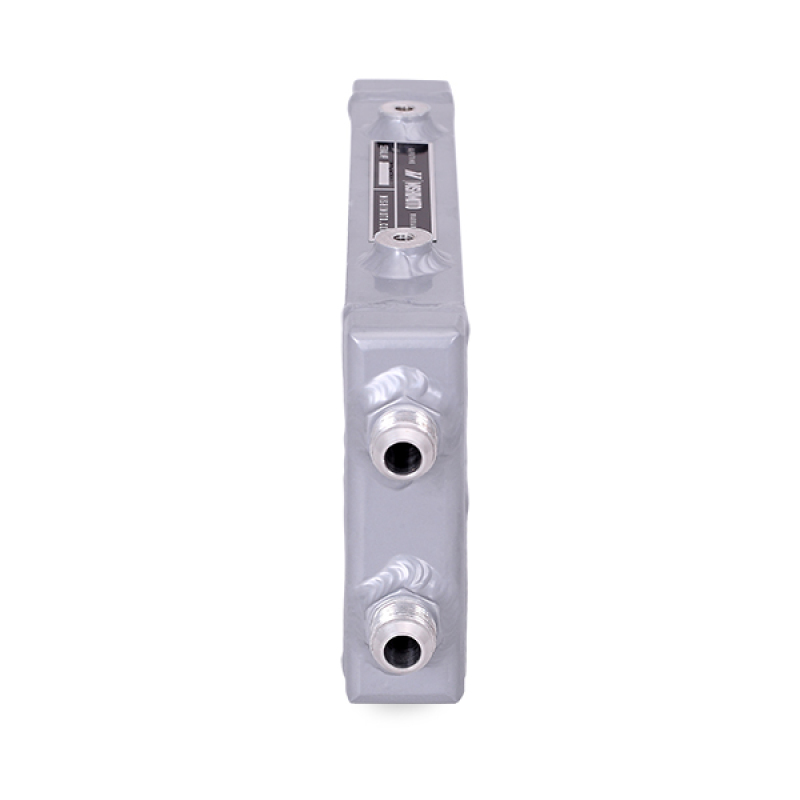

It uses a bar-and-plate core in a dual pass configuration, where oil enters one side, travels around the core, and exits on the same side.
What fittings does the Mishimoto oil cooler use?
The cooler uses -10AN male AN flare fittings on both the inlet and outlet, with a 0.625 in outside diameter.
Does the silver Mishimoto oil cooler have a logo?
Only one side of the silver oil coolers has the Mishimoto “M” logo; the stealth black option does not have a logo.
What is the fluid capacity of this oil cooler?
The cooler has a fluid capacity of 0.5 GA, also listed as a cooler fluid capacity of 0.5 QT.
What is included with the Mishimoto MMOC-DP-SSL and is it warrantied?
The package includes one oil cooler backed by the Mishimoto Lifetime Warranty.
