Description
The Mishimoto MMOCA-BRZ-13 Oil Sandwich Plate Adapter is purpose-built for the 2013-2020 Subaru BRZ, Toyota 86, and Scion FR-S, letting owners of the FA20 engine bolt on an external oil cooler without drilling or tapping the block. Machined from 6061 aluminum and finished in silver, this sandwich plate ships in thermostatic and non-thermostatic versions so both track cars and daily-driven BRZs can take charge of oil temperature.
Among the many components of an automobile engine, few work as hard under sustained high-RPM driving as the oil circuit, and this sandwich plate is one of the essential car engine parts that lets you take control of it. Its M20x1.5 ports accept the available Mishimoto M20 to -10AN adapters, opening a high-flow path to an external oil cooler so the oil supporting combustion inside your FA20 stays in a healthier range lap after lap. For anyone researching engine parts for a car build, this adapter set also frees up two 1/8-NPT ports on the sandwich plate for temperature or pressure sensors, and the thermostatic version can be built with a 160, 185, or 200-degree thermostat for climate-specific warm-up behavior. The kit’s separate sandwich plate adapter set and center bolt connect oil cooler lines directly to your oil filter’s high-volume feed, so whether you’re chasing track lap times or just want more consistent parts of a car engine working together on your daily driver, installation stays straightforward.
Vehicle Applications
This adapter is engineered around the FA20 engine and ZN6/ZC6 chassis shared by the Scion FR-S Base (2013-2016), the Subaru BRZ across its Base, Limited, Premium, Sport-tech, Sport-tech RS, TS, and limited-run Aozora Edition, Series.Blue, Series.Gray, Series.HyperBlue, and Series.Yellow trims (model years 2013-2020, with select trims continuing 2022-2026), the Toyota 86 Base, GT, Special Edition, and TRD Special Edition trims (2017-2020), and the Toyota GR86 Base (2022-2026). Coverage varies by specific trim and year, so confirm your exact configuration matches the ranges above.
Features
- Direct fit for 2013-2020 Subaru BRZ, Toyota 86, and Scion FR-S
- Allows for addition and full customization of an external oil cooler
- Robust CNC-machined 6061 aluminum oil sandwich plate and sandwich plate adapters
- Optional thermostatic sandwich plate for daily-driven vehicles or cold climates

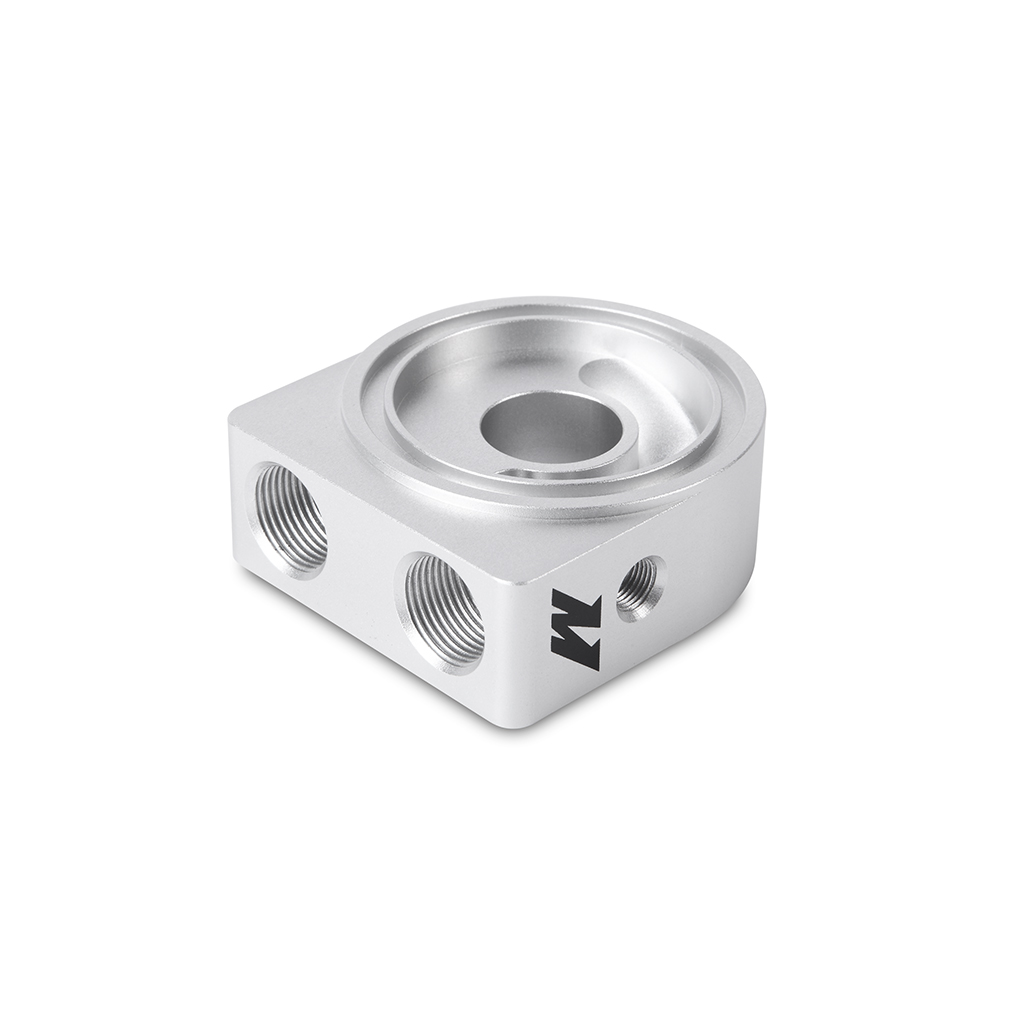

- Sandwich plate includes two 1/8-NPT ports with plugs for sensors or additional oil feeds
- High-flow M20x1.5 sandwich plate ports accept available Mishimoto M20 to -10AN adapters
- Available in thermostatic and non-thermostatic options
- Thermostatic sandwich plate accepts 160-degree, 185-degree, or 200-degree thermostats
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMOCA-BRZ-13
- Material: 6061 Aluminum
- Color: Silver
- Overall Width: 1.11-IN
- Overall Height: 3.15-IN
- Overall Length: 2.8-IN
- Gasket or Seal Included: Yes
- Engine Code: FA20
- Chassis Codes: ZN6, ZC6
- Applications: 2013+ Subaru BRZ, 2013+ Scion FR-S, 2013+ Toyota GT86

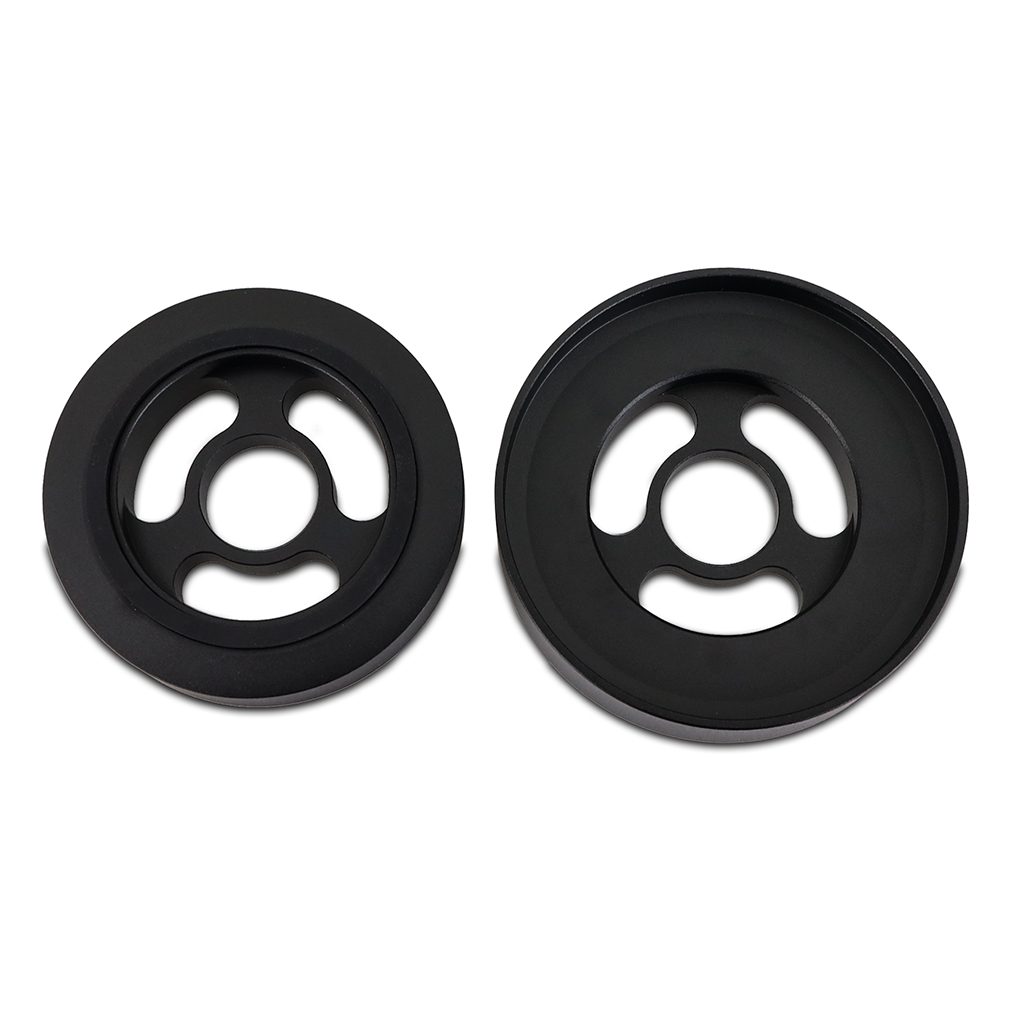

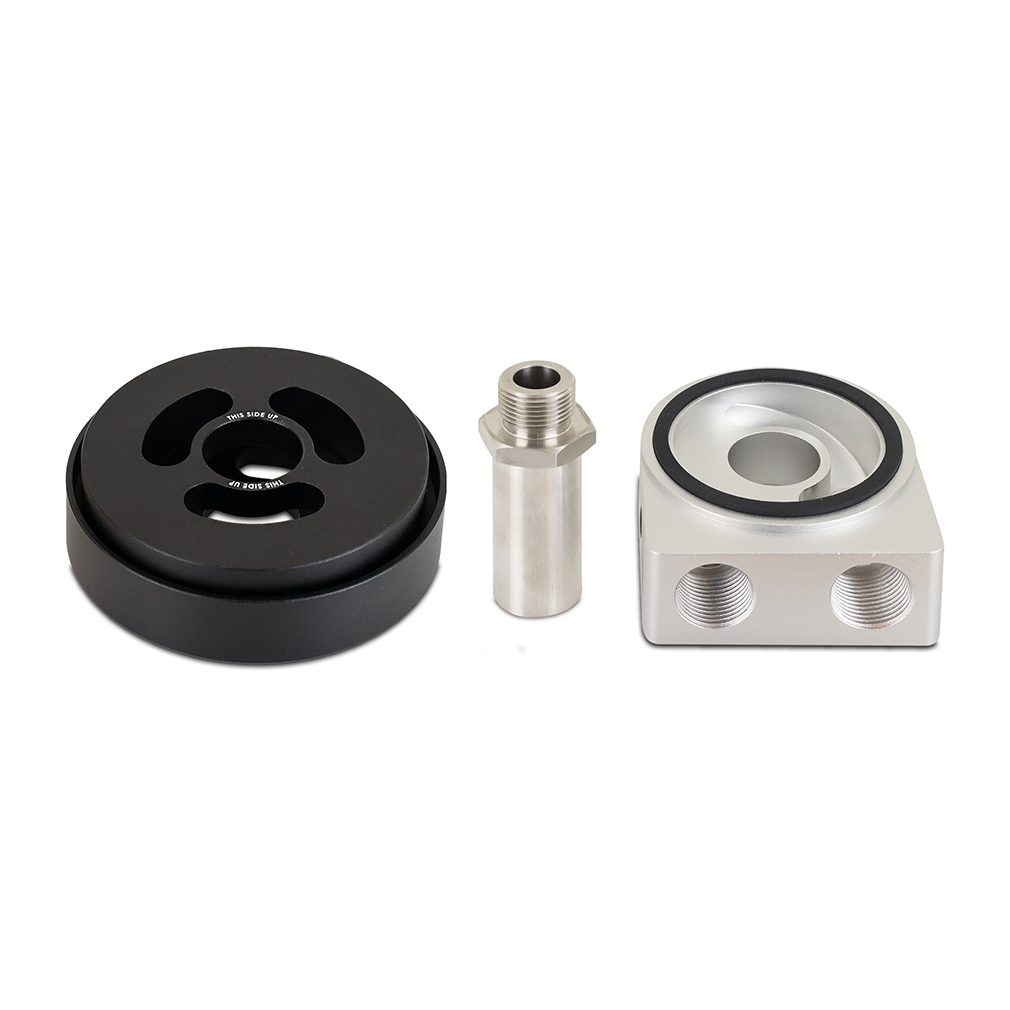

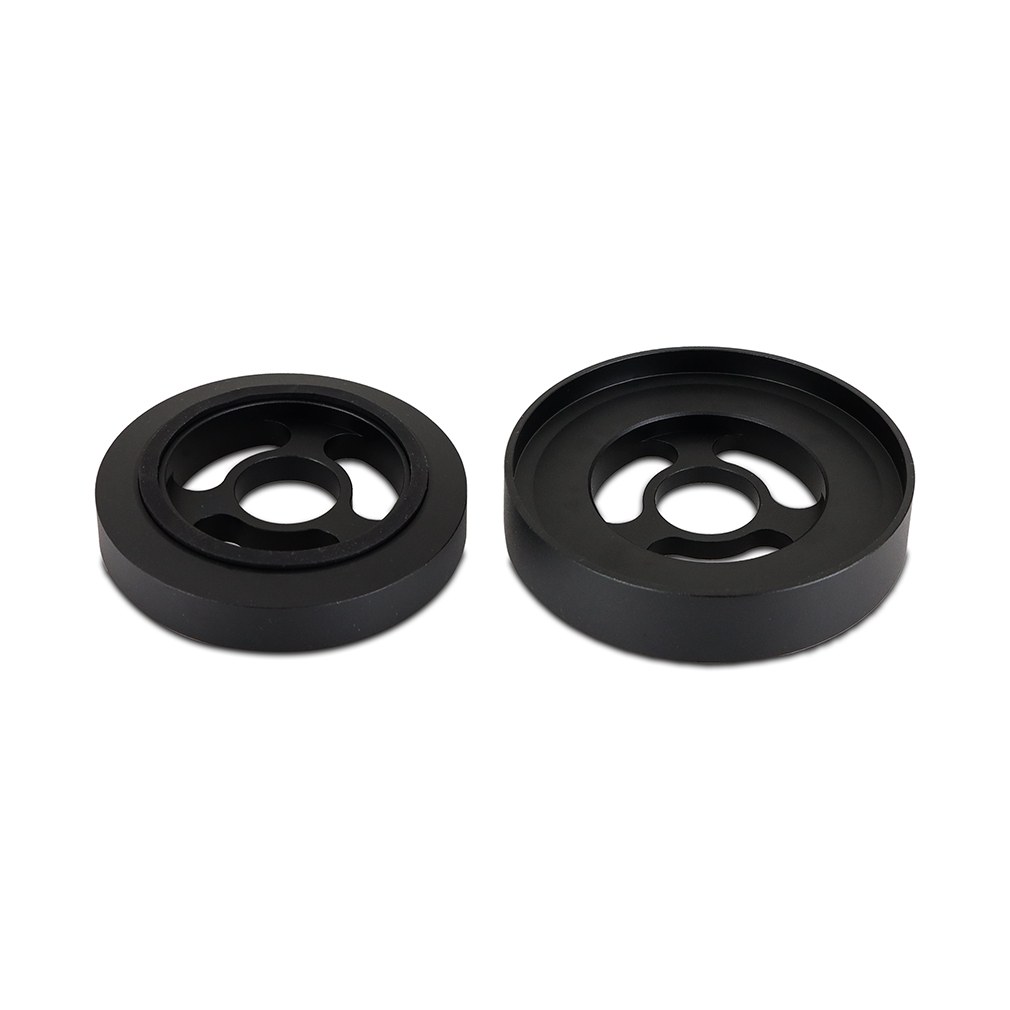

- Kit Includes: (1) Oil Sandwich Plate with (2) 1/8-IN NPT ports; (1) Oil Sandwich Plate Adapter with (3) 1/8-IN NPT ports; (2) Sandwich Plate Adapters (1x M20 x 1.5-IN and 1x 3/4-IN UNF 16); (2) Rubber O-rings; (5) 1/8-IN NPT Plugs; (2) Black Flush Fittings with Allen Key Bolt; (1) Allen Key; (1) Hex Head Fitting; Mishimoto Lifetime Warranty
Frequently Asked Questions
What does the Mishimoto Oil Sandwich Plate Adapter do?
It allows enthusiasts to add and fully customize an external oil cooler on the FA20 engine without drilling or tapping.
Which vehicles does the MMOCA-BRZ-13 fit?
It fits the 2013-2020 Subaru BRZ, Toyota 86, and Scion FR-S, plus select later Subaru BRZ and Toyota GR86 trims as detailed in the Vehicle Applications section.
Is a thermostatic version of the sandwich plate available?
Yes, the sandwich plate is available in thermostatic and non-thermostatic options, and the thermostatic version can accept 160, 185, or 200-degree thermostats.
What material is the sandwich plate made from?
The sandwich plate is CNC-machined from 6061 aluminum and finished in silver.
What ports does the sandwich plate include for sensors?
Both the thermostatic and non-thermostatic sandwich plates include 1/8-NPT ports that can be used for temperature or pressure sensors.
What is included in the Mishimoto oil sandwich plate kit?
The kit includes an oil sandwich plate with two 1/8-IN NPT ports, an oil sandwich plate adapter with three 1/8-IN NPT ports, two sandwich plate adapters (M20 x 1.5-IN and 3/4-IN UNF 16), two rubber O-rings, five 1/8-IN NPT plugs, two black flush fittings with an Allen key bolt, an Allen key, a hex head fitting, and the Mishimoto Lifetime Warranty.
