Description

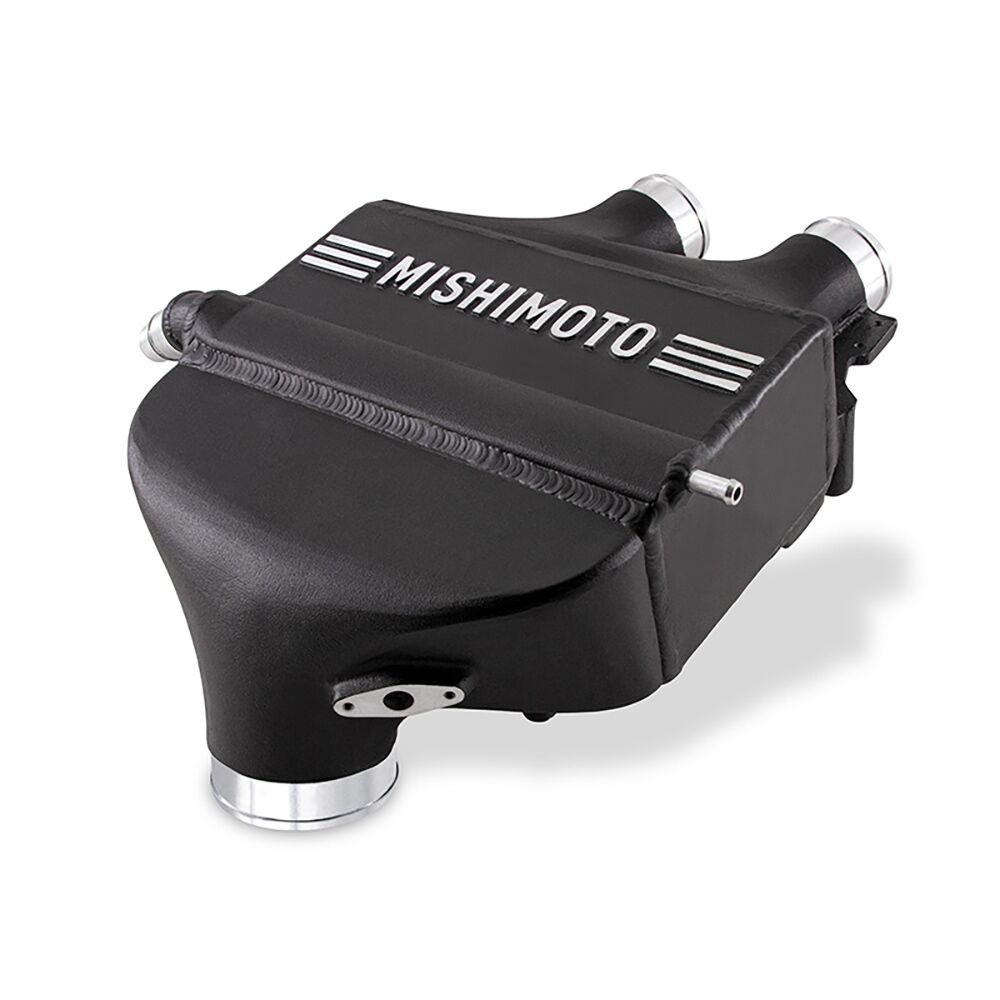

The Mishimoto Performance Air-to-Water Intercooler (MMINT-F80-15) is purpose-built for the S55-powered BMW F8X chassis, replacing the factory unit with a redesigned core and cast aluminum end tanks engineered to handle increased boost. This is a direct-fit forced induction upgrade for the F80 M3, F82/F83 M4, and F87 M2 Competition, not a generic, one-size-fits-all intercooler.

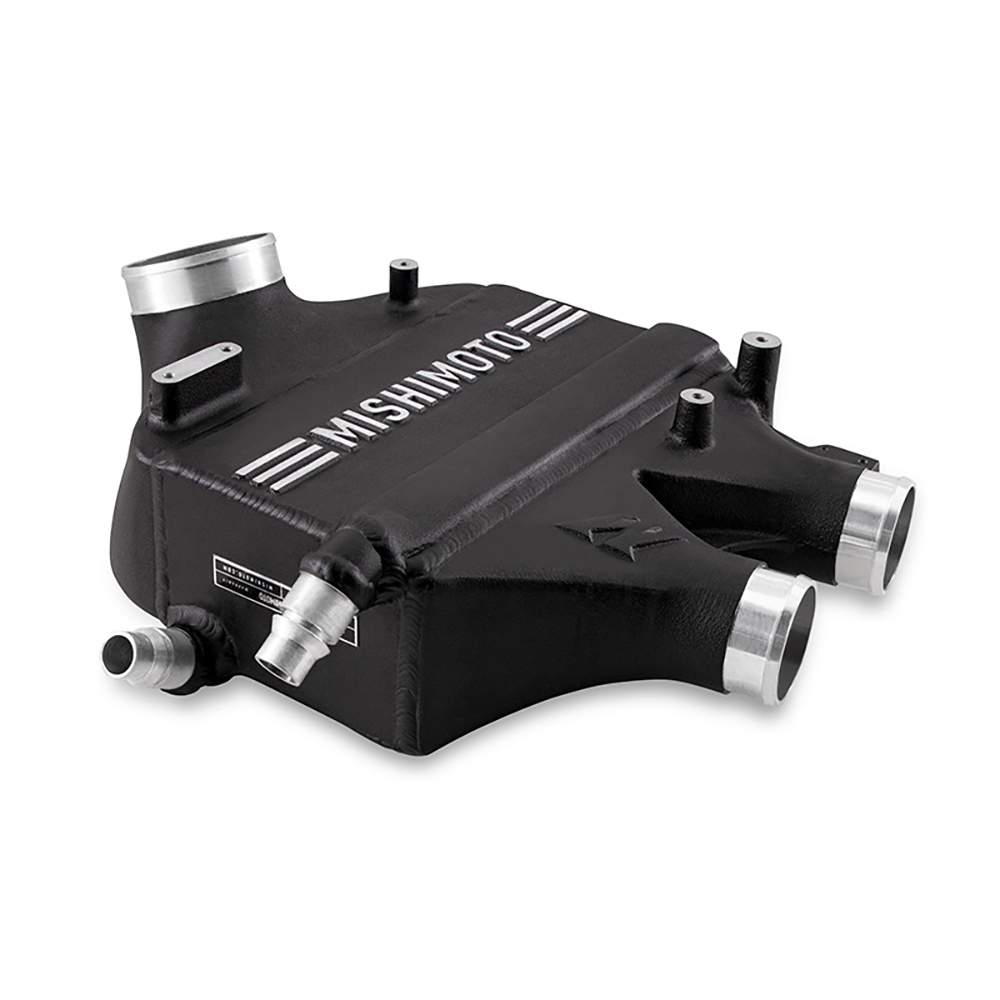

As a dedicated forced induction component, this intercooler is engineered to move charged air more efficiently through the induction system than the factory piece. Mishimoto expanded the core in every dimension for a 29% increase in core volume, added a unique single-pass internal fin layout for the coolant passage, and fitted cast aluminum end tanks with internal air diverters on both the inlet and outlet to keep flow even across the core. As a performance induction upgrade tested alongside the Mishimoto Performance Heat Exchanger, it increased flow through the core by 16%, dropped intake air temperatures by 12F, and produced average gains of 11 whp and 8 wtq, with peak gains up to 31 whp and 10 wtq.
Vehicle Applications
This Mishimoto intercooler is a specific fit for the S55-powered BMW F8X chassis (F80, F82, F83, F87), covering the 2015-2018 BMW M3, the 2015-2020 BMW M4, the 2016 BMW M4 GTS, the 2018-2020 BMW M4 CS, and the 2019-2020 BMW M2 Competition. Despite the larger core, no modifications to the factory install points are required.
Features
- Direct fit for the 2015-2020 BMW F8X M3, M4, and M2 Competition
- 29% increase in core volume over the factory intercooler
- 16% increase in flow through the core
- Average power gains of 11 whp and 8 wtq when combined with the Mishimoto Performance Heat Exchanger, with peak gains up to 31 whp and 10 wtq
- 12F drop in intake air temperatures when tested with the Mishimoto Performance Heat Exchanger
- Unique single-pass core design for improved cooling capacity
- Cast aluminum end tanks with incorporated diverters for maximum flow, TIG-welded to the bar-and-plate core
- Bar-and-plate core construction for maximum cooling efficiency
- Compatible with stock and Mishimoto charge pipes
- Available in seven OEM colors or black with durable, automotive-grade paint matched to exterior paint
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMINT-F80-15
- Product Type: Forced Induction
- Core Type: Bar-and-Plate
- Core Material: Aluminum
- Inlet Tank Material: Aluminum
- Core Thickness: 3.7 in
- Grade Type: Performance
- Inlet Fitting Gender: Male
- Outlet Fitting Gender: Male
- Universal or Specific Fit: Specific
- Engine Code: S55
- Chassis Codes: F80, F82, F83, F87
- CARB EO Number: D-759-13
- Includes: (1) Performance Intercooler, (1) CARB EO Sticker, Mounting Hardware, Mishimoto Lifetime Warranty
Frequently Asked Questions
Which vehicles fit the Mishimoto MMINT-F80-15 intercooler?
It is a direct fit for the S55-powered BMW F8X chassis, covering the 2015-2018 BMW M3, 2015-2020 BMW M4, 2016 BMW M4 GTS, 2018-2020 BMW M4 CS, and 2019-2020 BMW M2 Competition.
How much does the core volume increase over the factory intercooler?
Mishimoto expanded the core in every dimension for a 29% increase in core volume.
What performance gains can I expect?
Testing with the Mishimoto Performance Heat Exchanger recorded average gains of 11 whp and 8 wtq, with peak gains up to 31 whp and 10 wtq, plus a 12F drop in intake air temperatures.
What core design does this intercooler use?

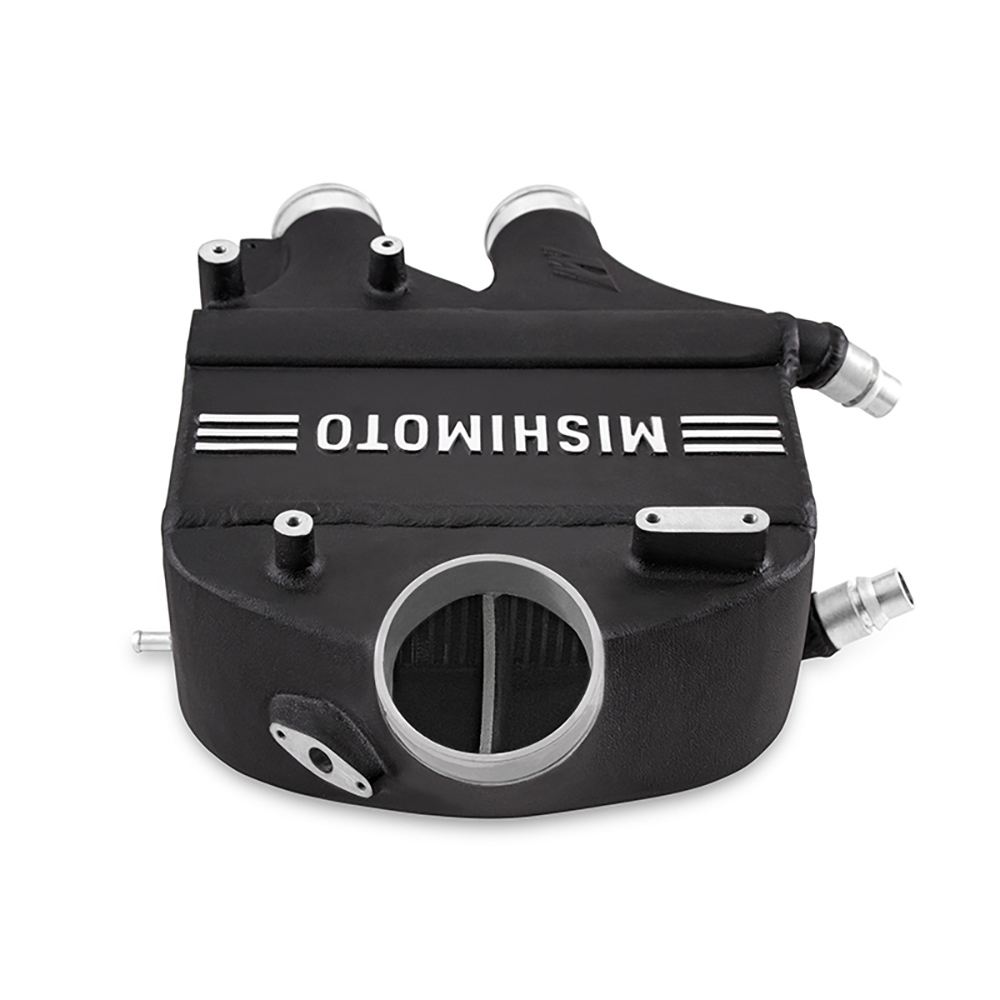

It uses a bar-and-plate core with a unique single-pass internal fin layout for the coolant passage, paired with cast aluminum end tanks featuring internal air diverters.
What color options are available?
The intercooler is available in seven OEM colors or black, finished in durable, automotive-grade paint matched to your exterior paint.
What is included and what warranty applies?
Each kit includes (1) Performance Intercooler, (1) CARB EO Sticker, and mounting hardware, backed by the Mishimoto Lifetime Warranty.
