Description
The Mishimoto Performance Front-Mount Intercooler Kit (MMINT-WRX-22SLRD) is a purpose-built forced induction upgrade engineered specifically for the 2022+ Subaru WRX. Built around a massive bar-and-plate core, CFD-optimized cast end tanks, and ID-matched high-flow piping, this silver-core, red-pipe kit is designed to replace the factory intercooler with a component that can actually keep pace with a serious forced induction system.
As a dedicated performance induction upgrade, this Mishimoto intercooler kit is built to eliminate the heat soak that plagues stock WRX intercoolers under sustained boost. The front-mounted location places the core directly in the lower bumper grille for maximum airflow, and in dyno testing it brought outlet temperatures to within 10 degrees of ambient air temp while adding 12 hp and 11.8 lb-ft of torque on the stock tune. The 4-inch-thick core, combined with CFD-optimized end tanks and ID-matched pipes, keeps pressure drop to just 1.5 PSI, so more of the boost your turbo generates actually reaches the engine instead of being wasted in the induction system. It’s a genuine forced induction upgrade for drivers building their WRX for the street, the track, or the dragstrip who want dependable, repeatable power runs.
Vehicle Applications
This Mishimoto intercooler kit is a specific-fit application for the Subaru WRX platform (chassis code VB, engine code FA24F, 2.4L H4). It’s designed for the Subaru WRX Base for model years 2022–2024, as well as the WRX GT, Limited, Premium, Sport, and Sport-tech trims covering 2022–2026. It also fits the WRX High, Series.Yellow, Sportwagon, TS, and tS Performance trims for the 2026 model year.
Features
- Massive bar-and-plate aluminum core with CFD-optimized cast aluminum end tanks
- Front-mount location in the lower bumper grille for maximum airflow through the core
- Delivers gains of 12 hp and 11.8 lb-ft of torque on stock tune
- Brings outlet temperatures to within 10 degrees of ambient air temp in dyno testing
- 4-inch-thick core helps protect against heat soak and detonation

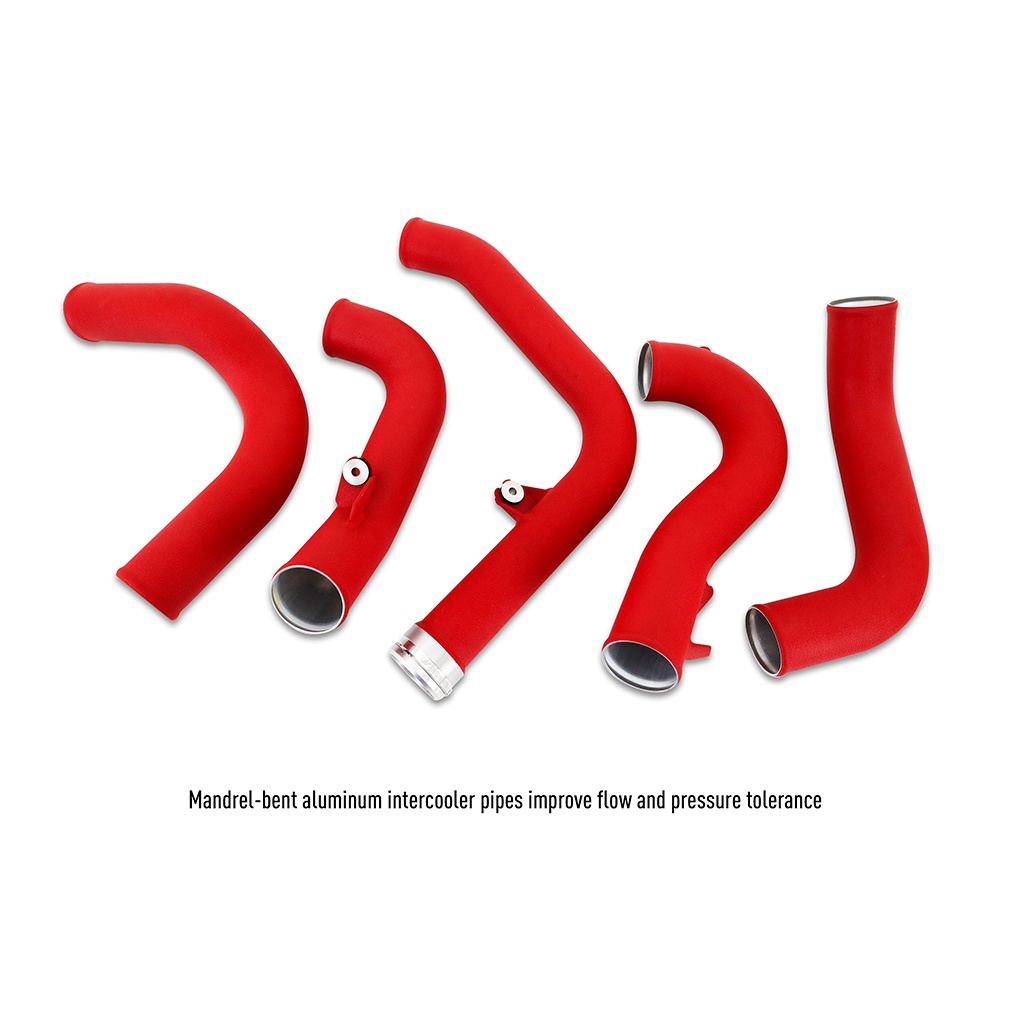

- ID-matched pipes and intercooler minimize pressure drop for unrestricted airflow
- No cutting of the bumper or body required for installation
- Retains factory side impact bars

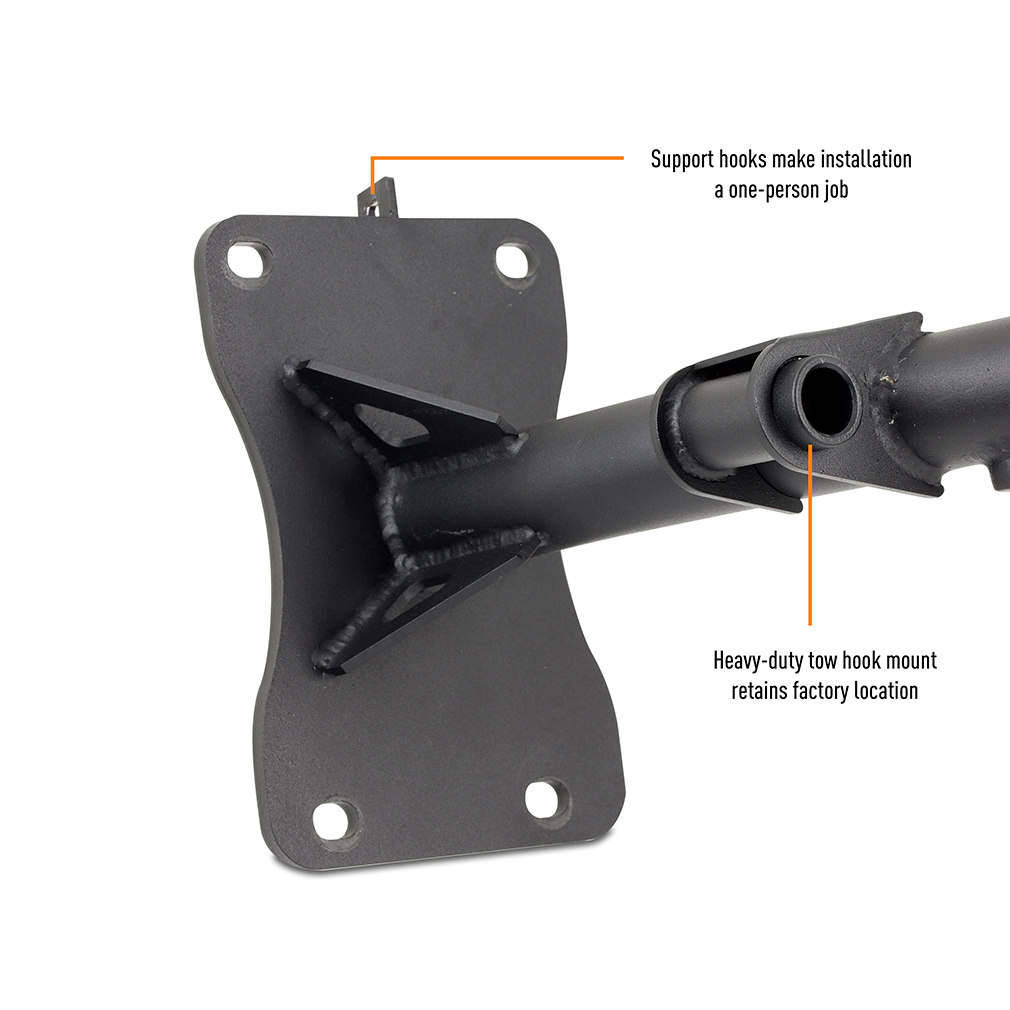

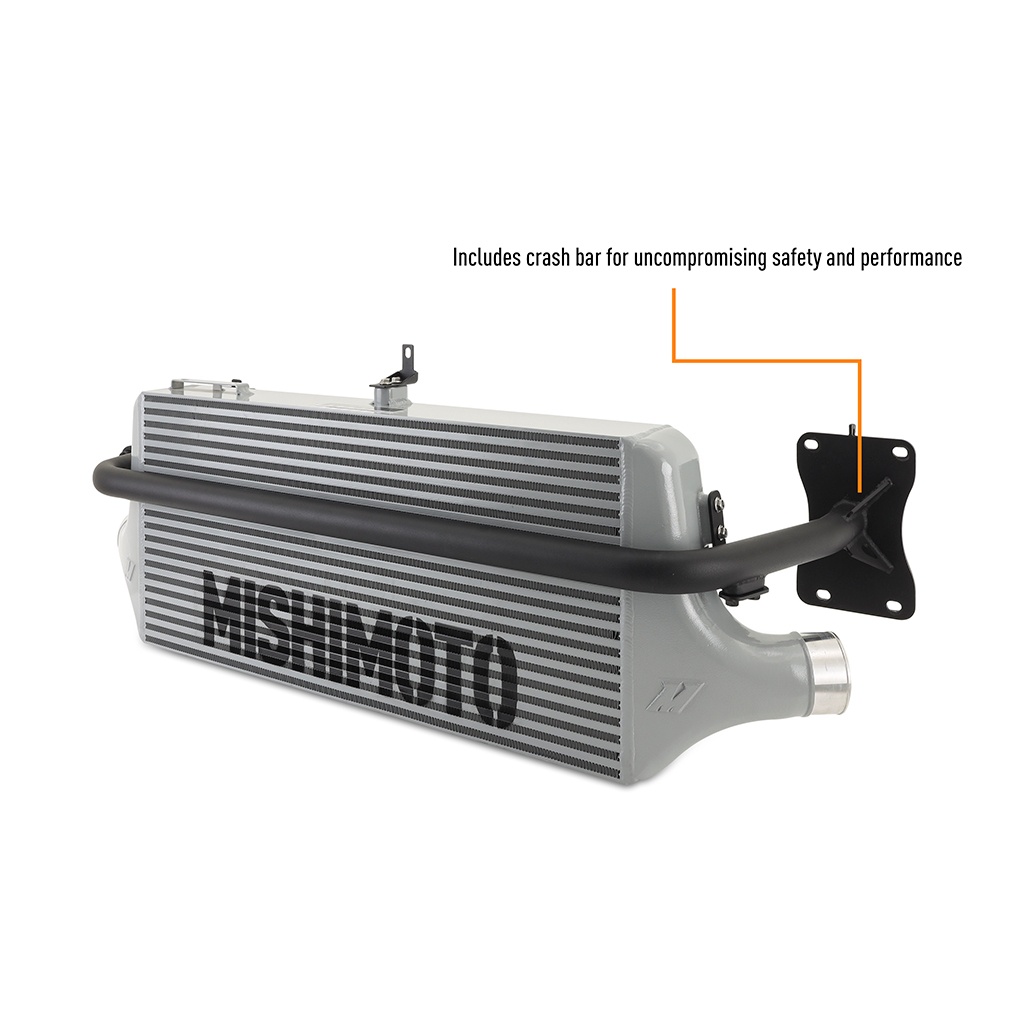

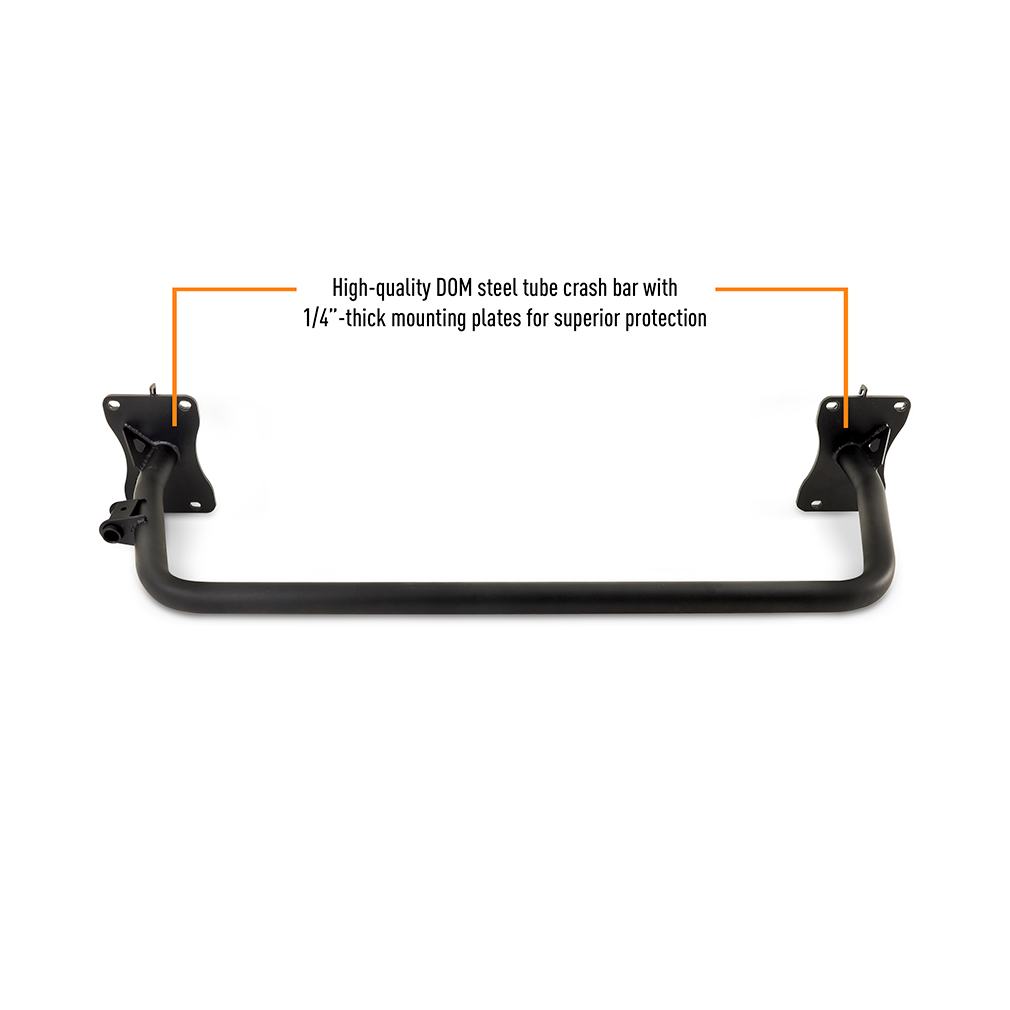

- Includes a bumper support bar with factory tow hook mounting
- Built-in crash bar hooks make installation a one-person job

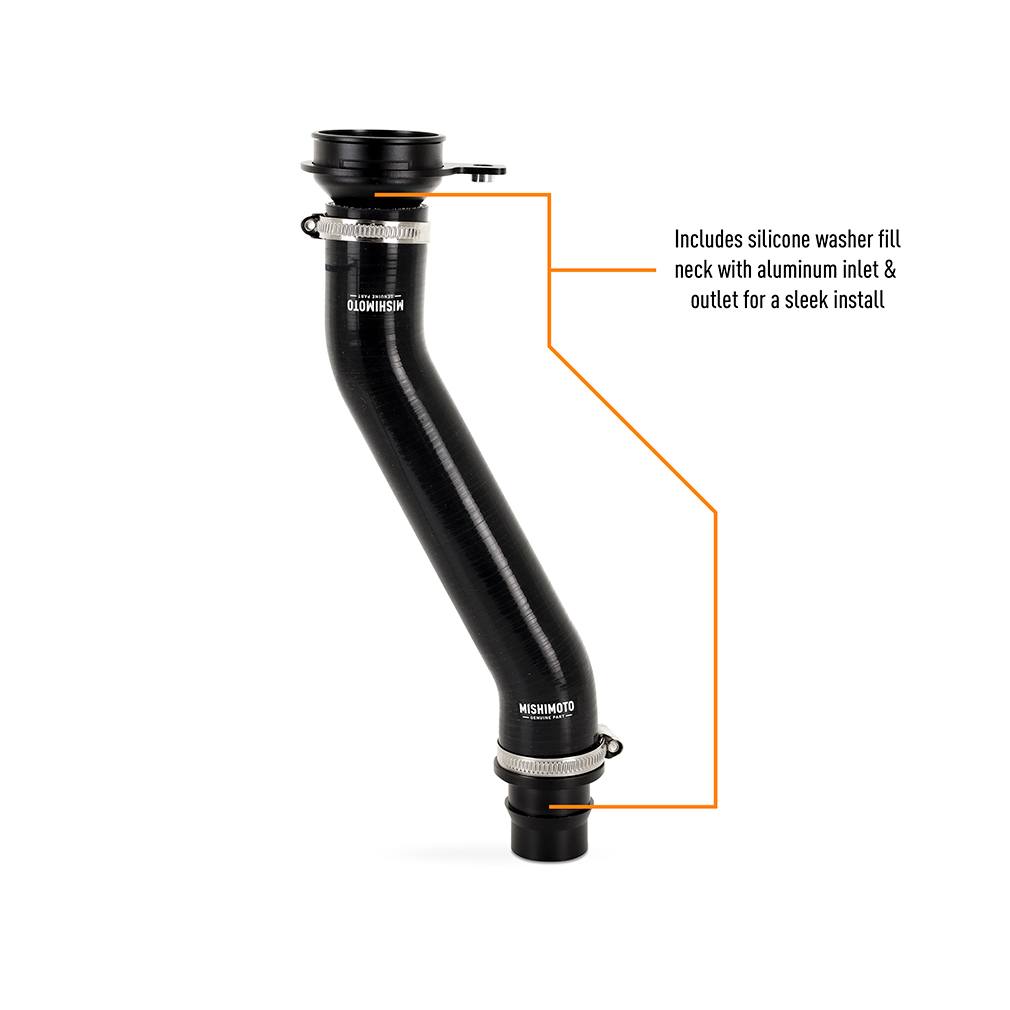

- Includes a washer fluid fill neck relocation kit for a clean install
- No bending of A/C lines required
- Compatible with most popular strut bars and with the Mishimoto radiator and oil cooler
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Material: Aluminum
- Core Construction: Bar-and-Plate
- Core Color: Silver
- Core Height: 12.14 in
- Core Length: 26.57 in
- Core Thickness: 3.93 in
- End Tank Material: Aluminum
- End Tank Construction: Cast
- Pipe Material: Aluminum
- Pipe Color: Red
- Pipe Finish: Powder Coated
- Inlet Diameter: 2.4 in
- Outlet Diameter: 2.4 in
- Hot Side Pipe Inside Diameter: 2.4 in
- Cold Side Pipe Inside Diameter: 2.4 in
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Intercooler Type: Air-to-Air
- Grade Type: Performance
- Maximum Boost Pressure: 60 PSI
- Maximum Horsepower: 1000 HP
- Overall Width (intercooler): 6 in
- Overall Height (intercooler): 12.89 in
- Overall Length (intercooler): 40.22 in
- Fit Type: Specific (2022+ Subaru WRX 2.4L H4, engine code FA24F, chassis code VB)

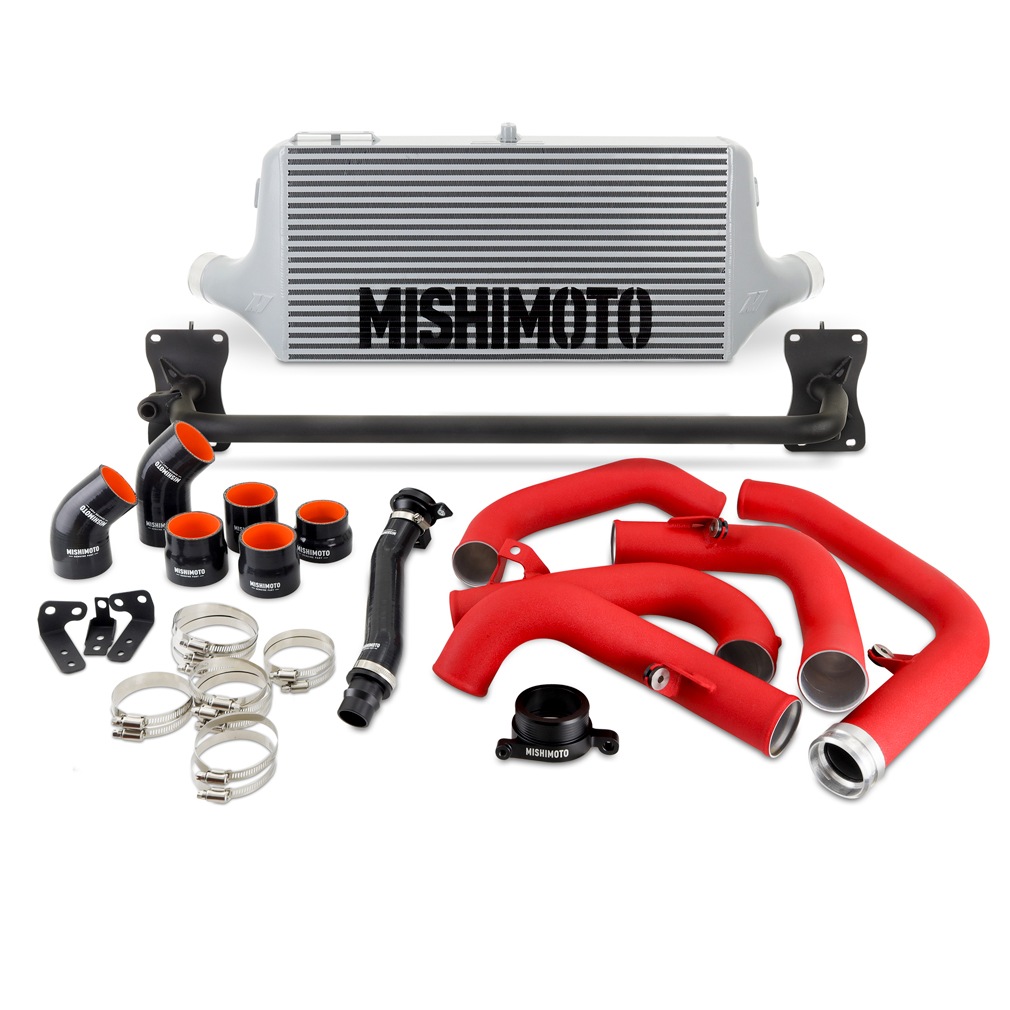

- Kit Includes: (1) Front Mount Intercooler, (1) Pipe and Boot Kit with Adaptors, (1) Bumper Support Bar, (1) Washer Fluid Fill Neck Relocation, Mishimoto Lifetime Warranty
Frequently Asked Questions
Which Subaru WRX models does this Mishimoto intercooler kit fit?
This kit fits the Subaru WRX Base for 2022–2024, the WRX GT, Limited, Premium, Sport, and Sport-tech trims for 2022–2026, and the WRX High, Series.Yellow, Sportwagon, TS, and tS Performance trims for 2026. It is built for the 2.4L H4 (engine code FA24F, chassis code VB).
What performance gains does this intercooler provide?
In testing, the kit delivered gains of 12 hp and 11.8 lb-ft of torque on the stock tune.
Does installing this intercooler require cutting the bumper or body?
No. The kit is designed for installation with no cutting of the bumper or body required, and it retains the factory side impact bars.
What comes included in the Mishimoto intercooler kit?
The kit includes one front mount intercooler, one pipe and boot kit with adaptors, one bumper support bar, one washer fluid fill neck relocation kit, and the Mishimoto Lifetime Warranty.
What is the maximum boost pressure and horsepower rating for this intercooler?
The intercooler is rated for a maximum boost pressure of 60 PSI and a maximum horsepower of 1000 HP.
How does this intercooler manage heat during hard driving?
In dyno testing, the intercooler brought outlet temperatures to within 10 degrees of ambient air temperature, and its 4-inch-thick core helps protect against heat soak and detonation.
