Description

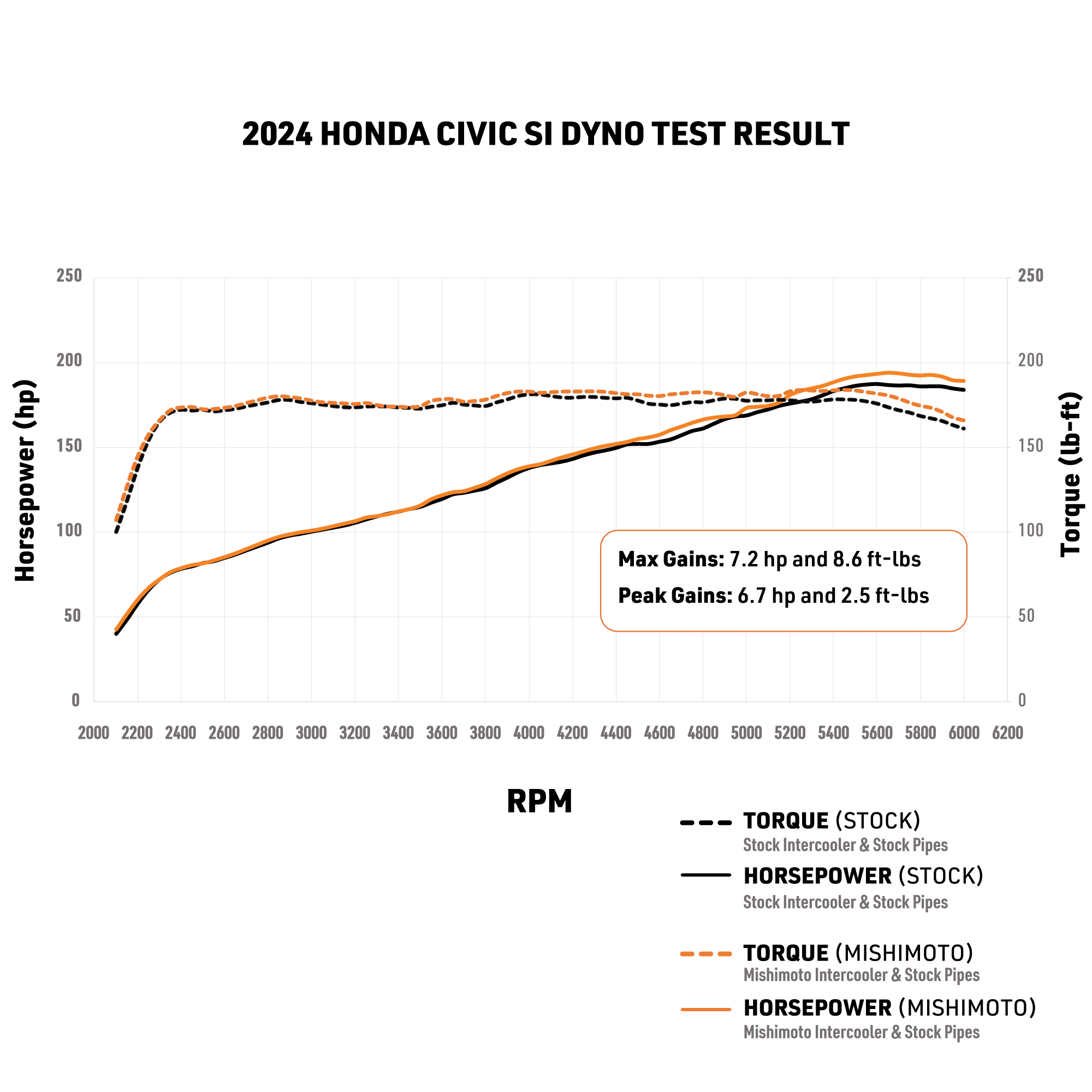

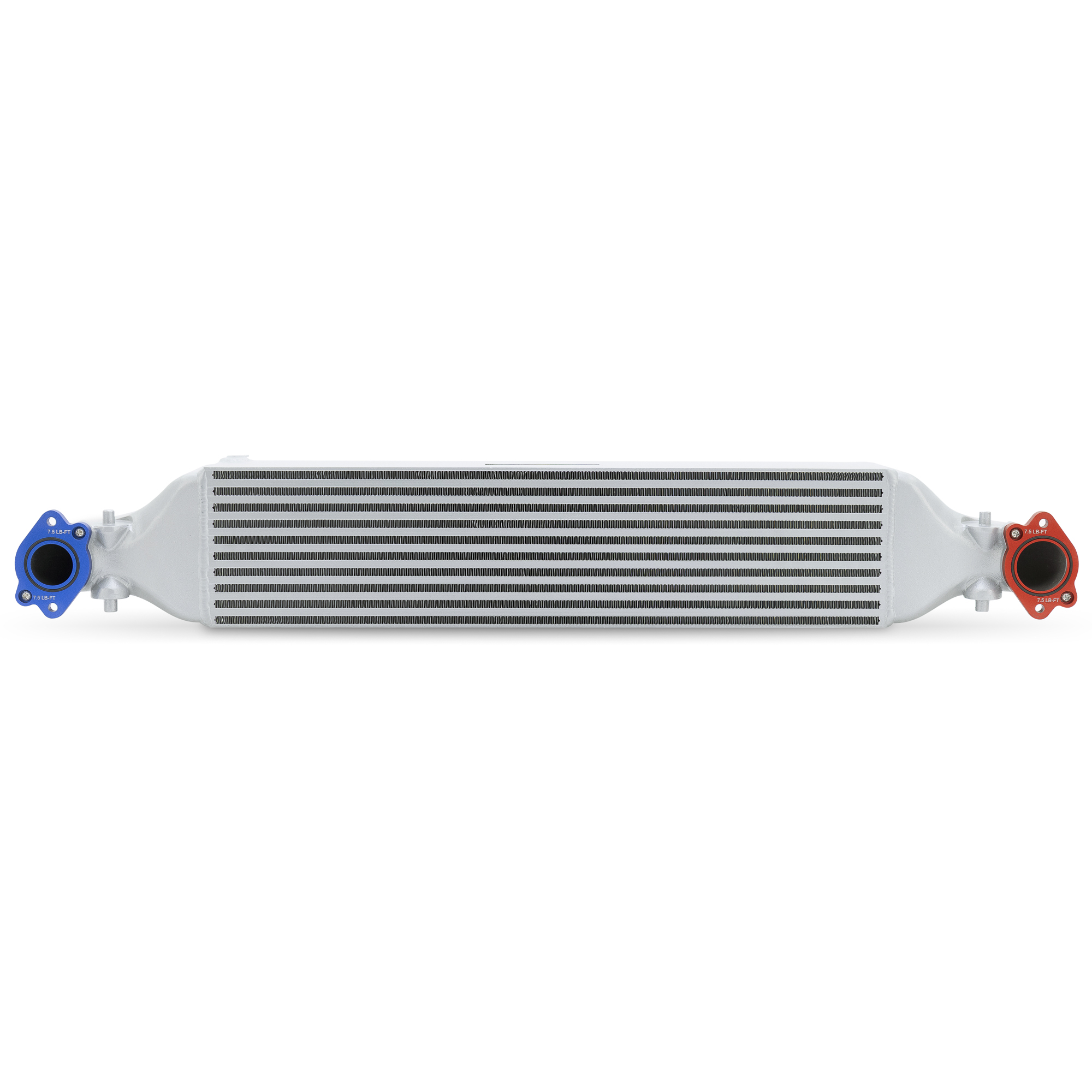

The Mishimoto Performance Intercooler (MMINT-CIV-22SL) is purpose-built for the 2022+ Honda Civic 1.5T/Si platform, pairing a bar-and-plate core with cast aluminum end tanks engineered around the L15B7/L15CA turbocharged engine. This specific-fit forced induction upgrade delivers measurable gains of up to 8.1 horsepower and 8.1 lb-ft of torque when paired with performance pipes, or up to 7.2 horsepower and 8.6 lb-ft with the factory piping still in place.
Beyond peak power numbers, this performance induction upgrade delivers a 146% increase in core volume over the stock intercooler, giving the induction system more capacity to manage heat as boost pressure builds. Average outlet temperatures drop by 18.1°F compared to stock, helping the forced induction system maintain consistent power and resist heat soak during hard driving or repeated pulls. Welded aluminum construction and cast aluminum end tanks give the core the durability to handle rigorous use, while the added volume keeps cooling capacity ahead of your Civic 1.5T build as modifications progress; Mishimoto engineered this unit to support builds up to 572 horsepower.
Vehicle Applications
This intercooler is engineered specifically for the 1.5L turbocharged four-cylinder (engine codes L15B7/L15CA, chassis code FE1) found across several Honda and Acura models. Coverage includes the 2022-2024 Honda Civic EX, EX-L, Sport Touring, and Touring, along with the 2022-2026 Honda Civic Si. It also fits the 2023-2026 Honda CR-V EX, EX-L, and LX, as well as the 2023-2026 Acura Integra in both A-Spec and Base trims.
Features
- Gains of up to 8.1 HP and 8.1 lb-ft of torque with full kit, or 7.2 HP and 8.6 lb-ft with stock piping
- Average outlet temperature 18.1°F cooler than stock for consistent performance and reduced heat soak

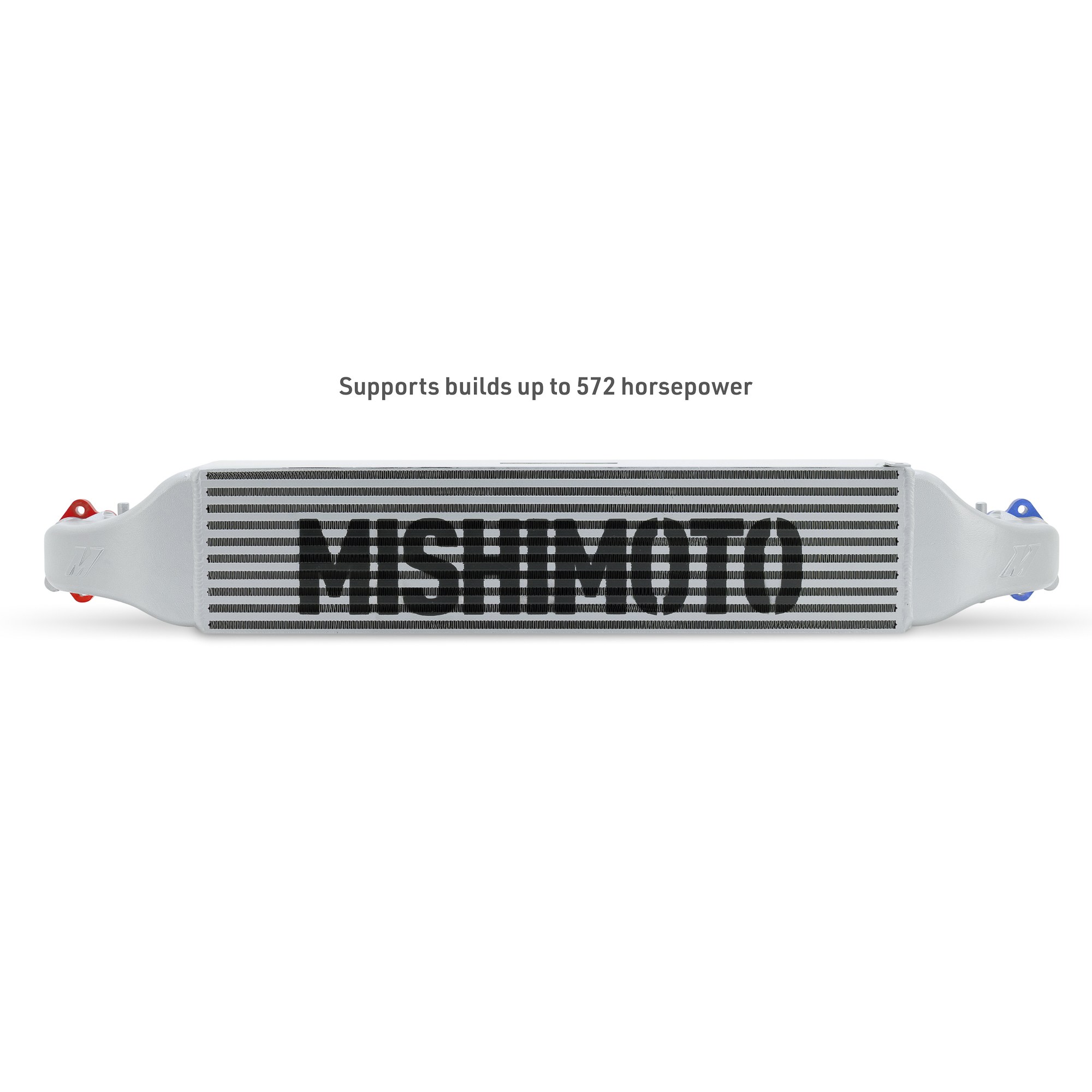

- Supports builds up to 572 horsepower

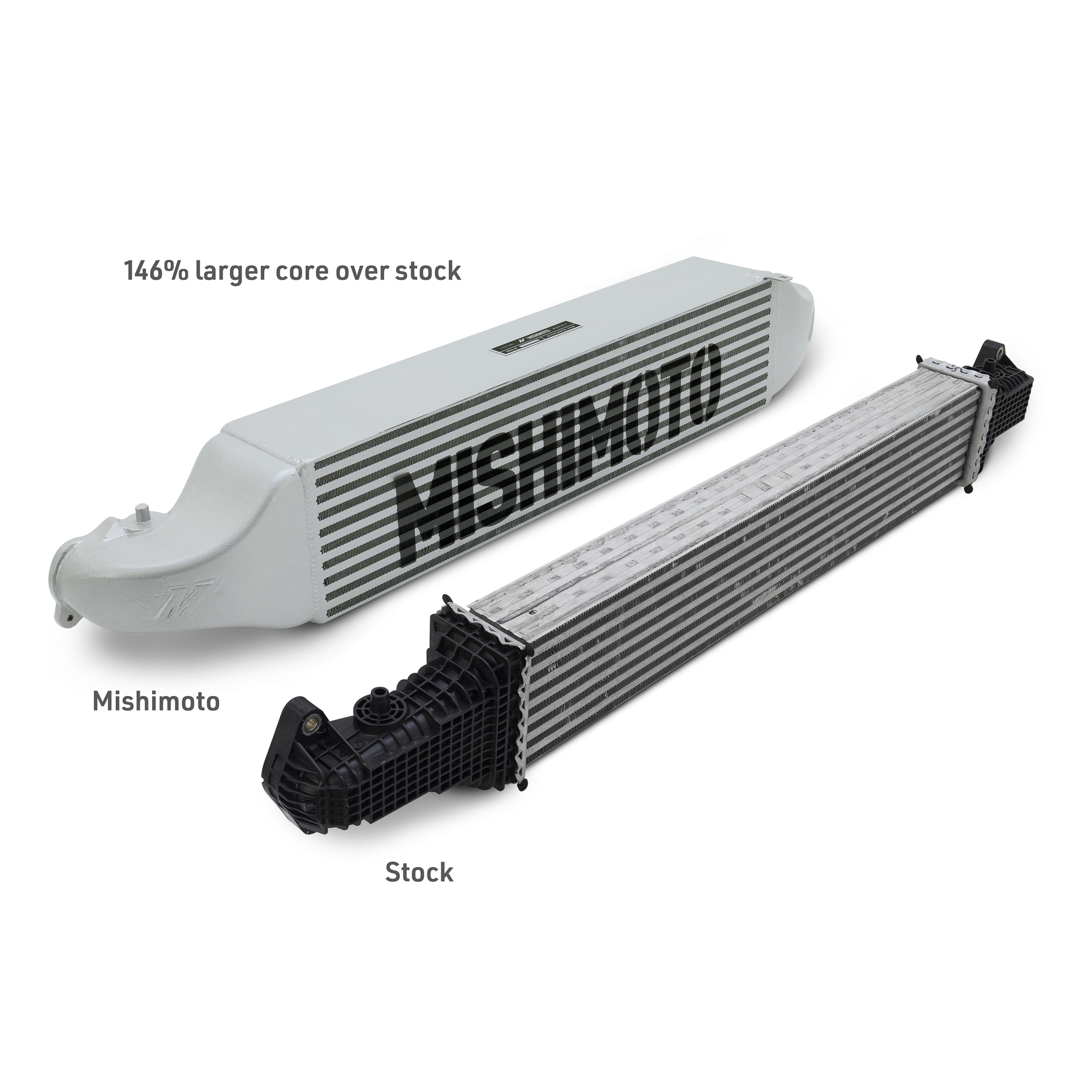

- 146% increase in core volume compared to stock for superior cooling capacity
- Cast aluminum end tanks and welded aluminum construction built to withstand rigorous driving
- Modular design lets you start with the intercooler and add performance pipes later

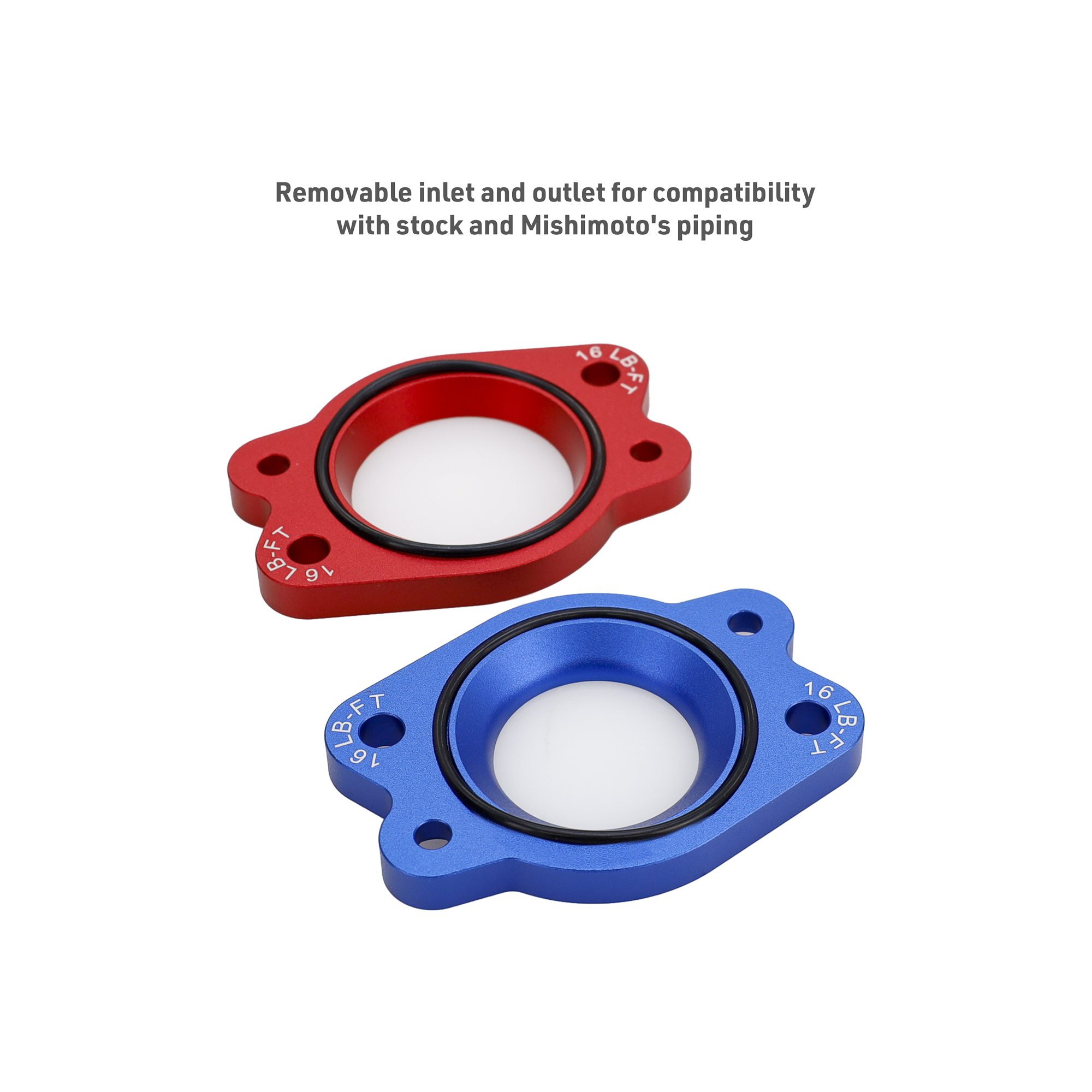

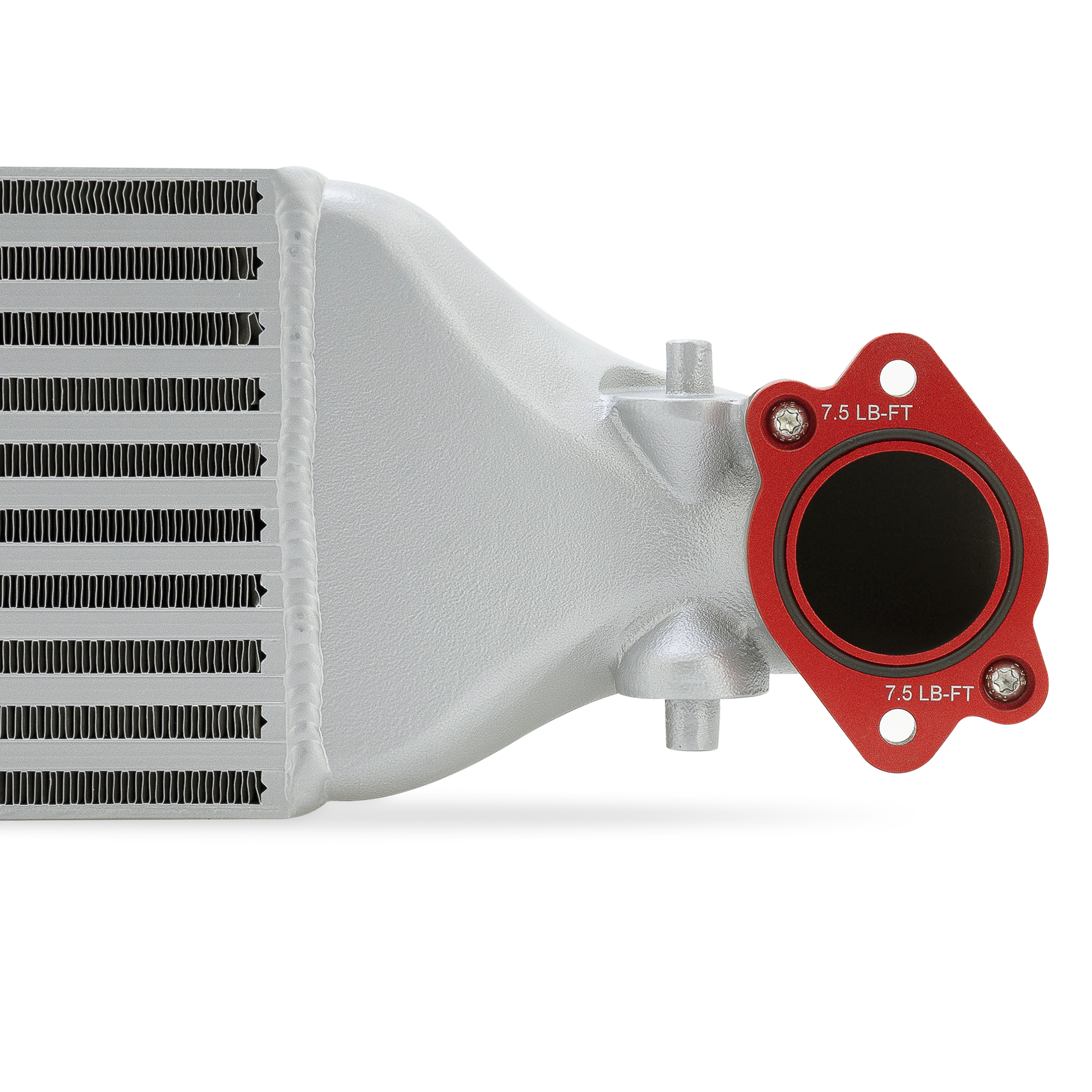

- CNC-machined adapters with color-coded anodized red and blue finish for easy installation and enhanced engine bay aesthetics

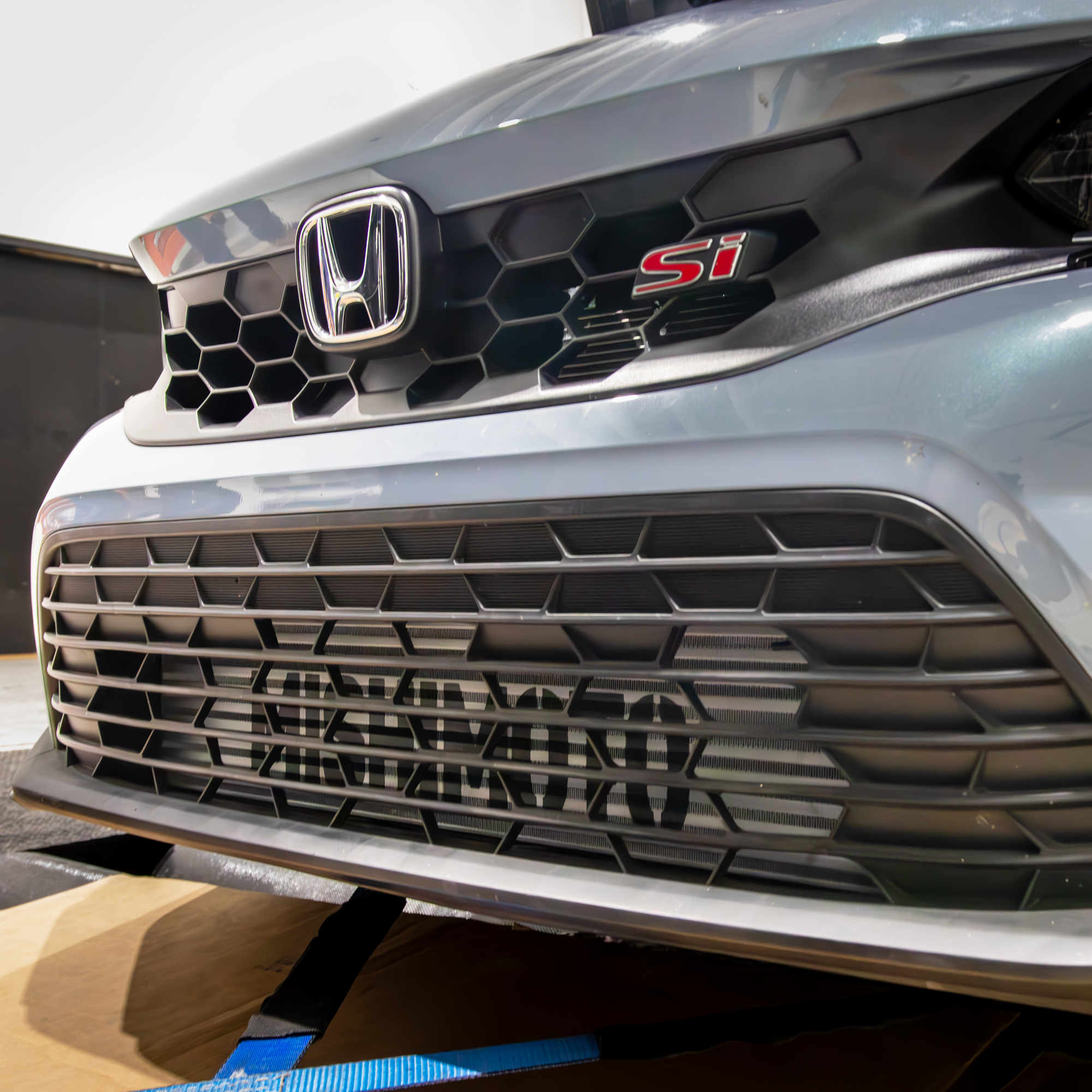

- Plug-and-play installation with no cutting required and full compatibility with stock ducting
- Patent Pending design

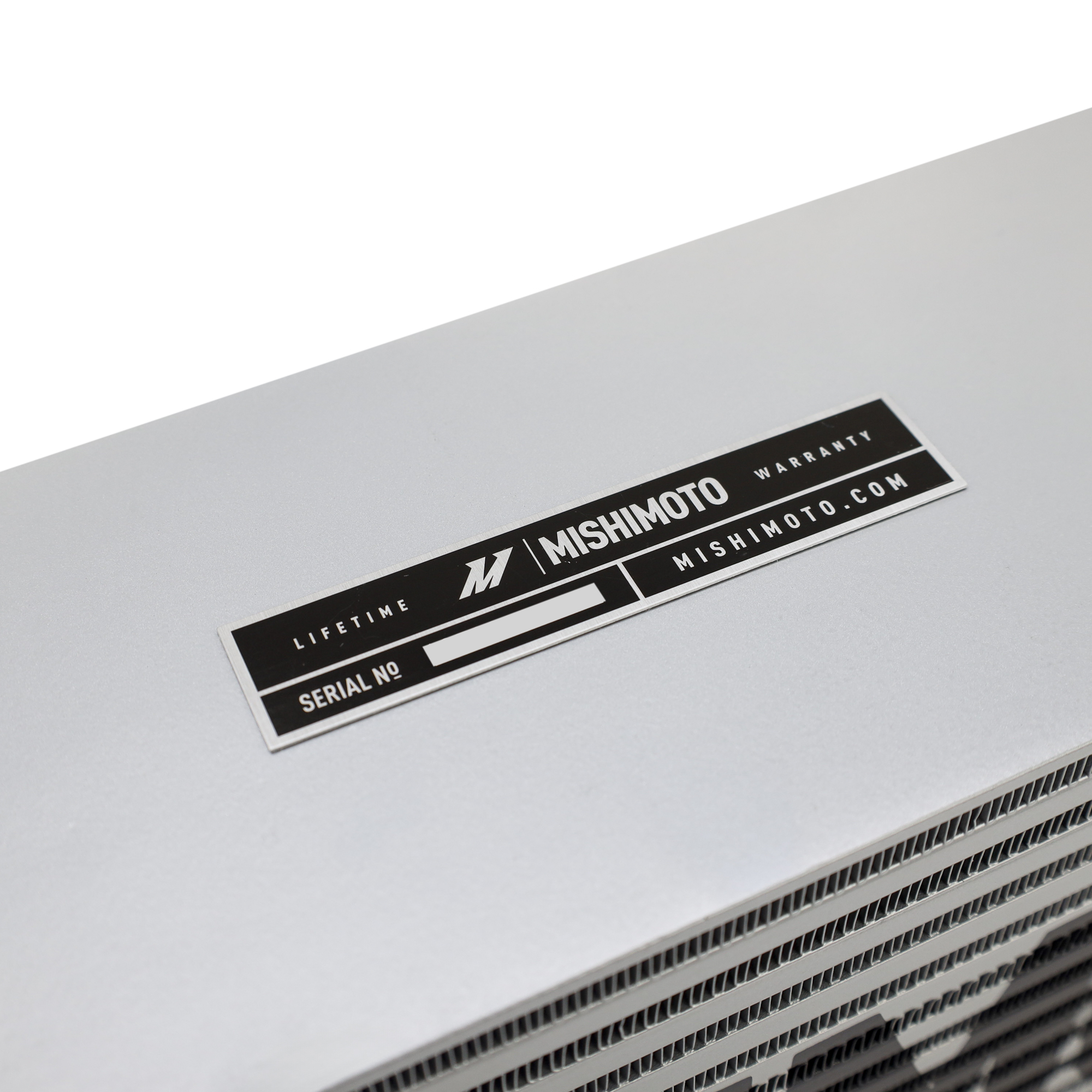

- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Type: Bar-And-Plate
- Core Material: Aluminum
- Inlet Tank Material: Aluminum
- Core Color: Silver
- Core Length: 26 in
- Core Thickness: 4.5 in
- Overall Length: 39.8 in
- Overall Width: 5.9 in
- Overall Height: 6.1 in
- Inlet Outside Diameter: 2.1 in
- Outlet Outside Diameter: 2.1 in
- Inlet/Outlet Fitting Gender: Male
- Universal or Specific Fit: Specific
- Grade Type: Performance
- Engine Codes: L15B7/L15CA
- Chassis Code: FE1
- Maximum Recommended Horsepower: 570
- Maximum Recommended Boost Pressure: 100 PSI

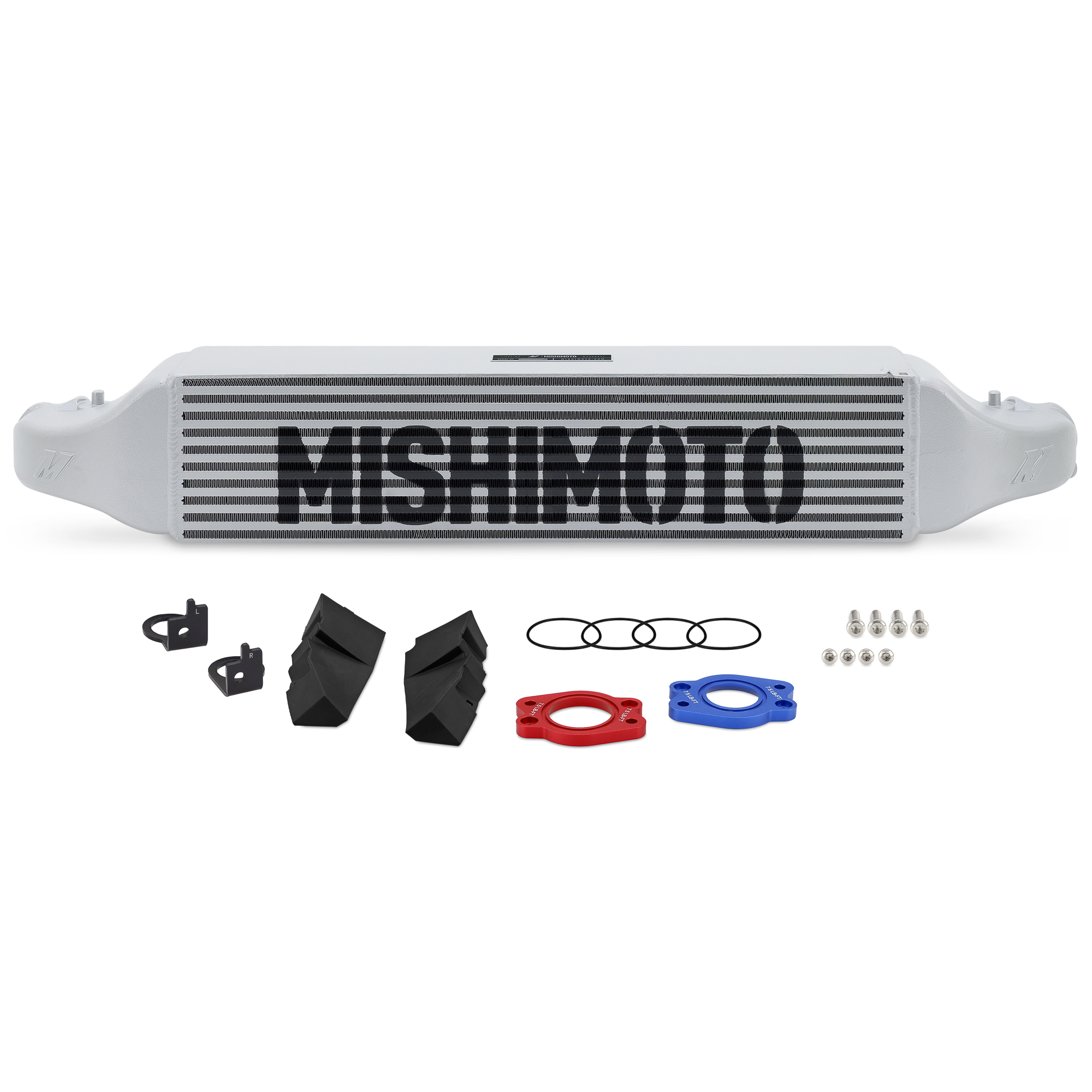

- Includes: (1) Mishimoto Performance Intercooler, (2) Intercooler Adapters, (2) Mounting Brackets, Intercooler Ducting, Mounting Hardware, Trim Removal Tool, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does this intercooler fit?
It fits the 2022-2024 Honda Civic EX, EX-L, Sport Touring, and Touring; the 2022-2026 Honda Civic Si; the 2023-2026 Honda CR-V EX, EX-L, and LX; and the 2023-2026 Acura Integra A-Spec and Base, all with the 1.5L L4 engine (codes L15B7/L15CA).
How much power will this intercooler add?
Gains reach up to 8.1 HP and 8.1 lb-ft of torque when paired with performance pipes, or up to 7.2 HP and 8.6 lb-ft with the stock piping still installed.
Does the core actually run cooler than stock?
Yes, average outlet temperatures run 18.1°F cooler than stock, and the core volume increases 146% over the factory intercooler.
Is installation difficult or does it require cutting?
No, installation is plug-and-play with no cutting required, and CNC-machined adapters ensure compatibility with the factory piping and ducting.
What comes in the box?
The kit includes (1) Mishimoto Performance Intercooler, (2) Intercooler Adapters, (2) Mounting Brackets, Intercooler Ducting, Mounting Hardware, a Trim Removal Tool, and the Mishimoto Lifetime Warranty.
What is the maximum recommended horsepower and boost?
Mishimoto lists this core as supporting builds up to 572 horsepower, with a specification sheet maximum recommended horsepower of 570 and a maximum recommended boost pressure of 100 PSI.
