Description
The Mishimoto Remote Oil Filter Mount (MMOC-RFH-M22BK) is the core component of a complete oil filter relocation system, engineered from CNC-machined billet 6061 T-6 aluminum and finished in a durable anodized black coating. Built around four M22 x 1.5 ports and a stainless-steel filter adapter, this Mishimoto Fabrication piece gives builders the freedom to move a factory oil filter away from cramped engine bays or low-clearance mounting points.
Relocating an oil filter solves real-world problems: confined engine bays that make filter access difficult, low ground clearance that leaves a filter exposed to debris on the track or trail, or the desire to step up to a large-format spin-on filter for improved capacity and easier service. Mishimoto’s Remote Oil Filter Mount addresses all of this with four M22 x 1.5 ports for oil cooler lines, oil pressure feeds, or sensors, giving installers multiple feed and return line orientations so the finished plumbing stays tidy no matter the engine bay layout. Dowty seal connections are used throughout for reliable, leak-free operation, and two included M22 x 1.5 plugs let you cap off any ports that go unused.
Vehicle Applications
This Remote Oil Filter Mount is a universal Fabrication component rather than a vehicle-specific bolt-on part, making it well suited to custom builds and vehicles with low-mount oil filters that are vulnerable to debris on the track or trail. Because the stainless-steel filter adapter is available in multiple thread sizes and this configuration uses an M22 x 1.5 filter thread with a minimum oil filter diameter of 2.25 in and a maximum of 3.5 in, it can be matched to a wide range of common spin-on filter sizes. Note that a complete relocation setup also requires a Mishimoto Remote Oil Filter Take-Off Plate, Mishimoto Remote Oil Filter Fittings, and Mishimoto Braided Oil Lines, which are sold separately.
Features
- Allows for relocation of oil filter to a more accessible location
- Robust CNC-machined billet 6061 T-6 aluminum construction

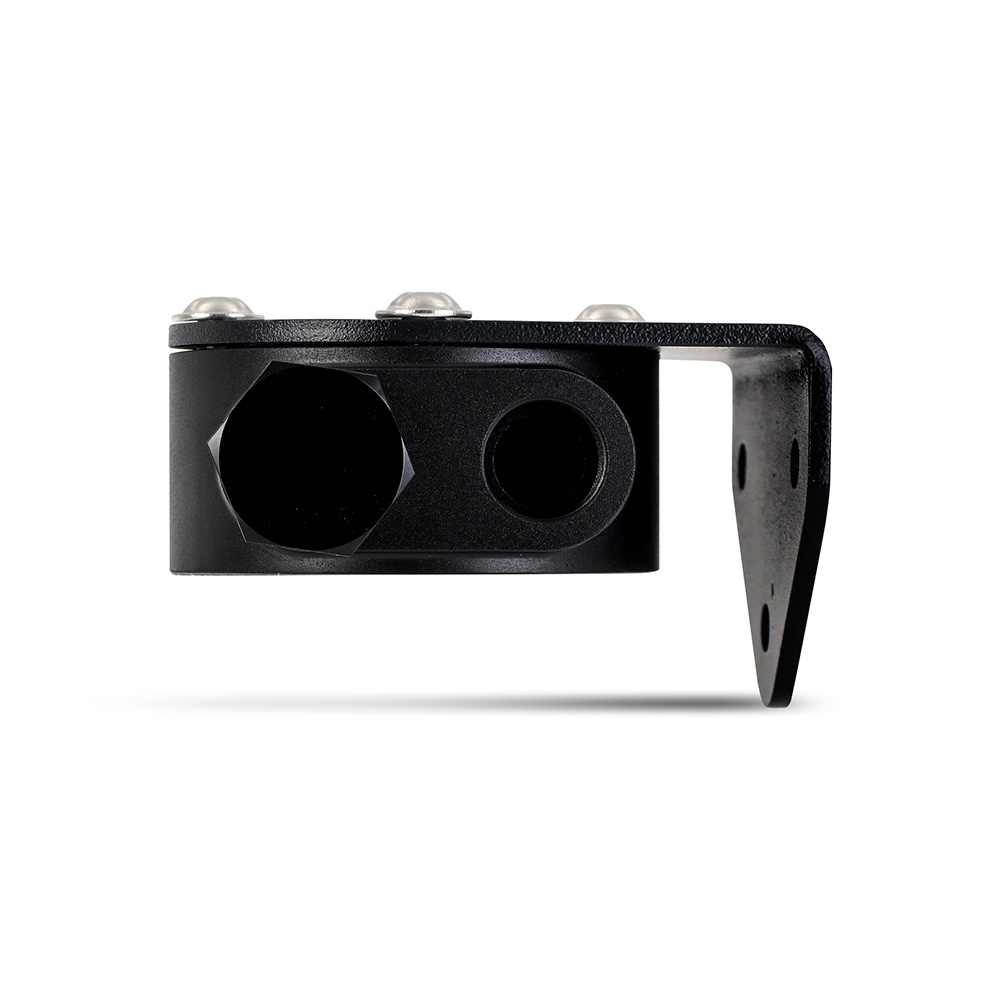

- Four M22 x 1.5 ports provide provisions for oil cooler lines, oil pressure feeds, sensors, etc.

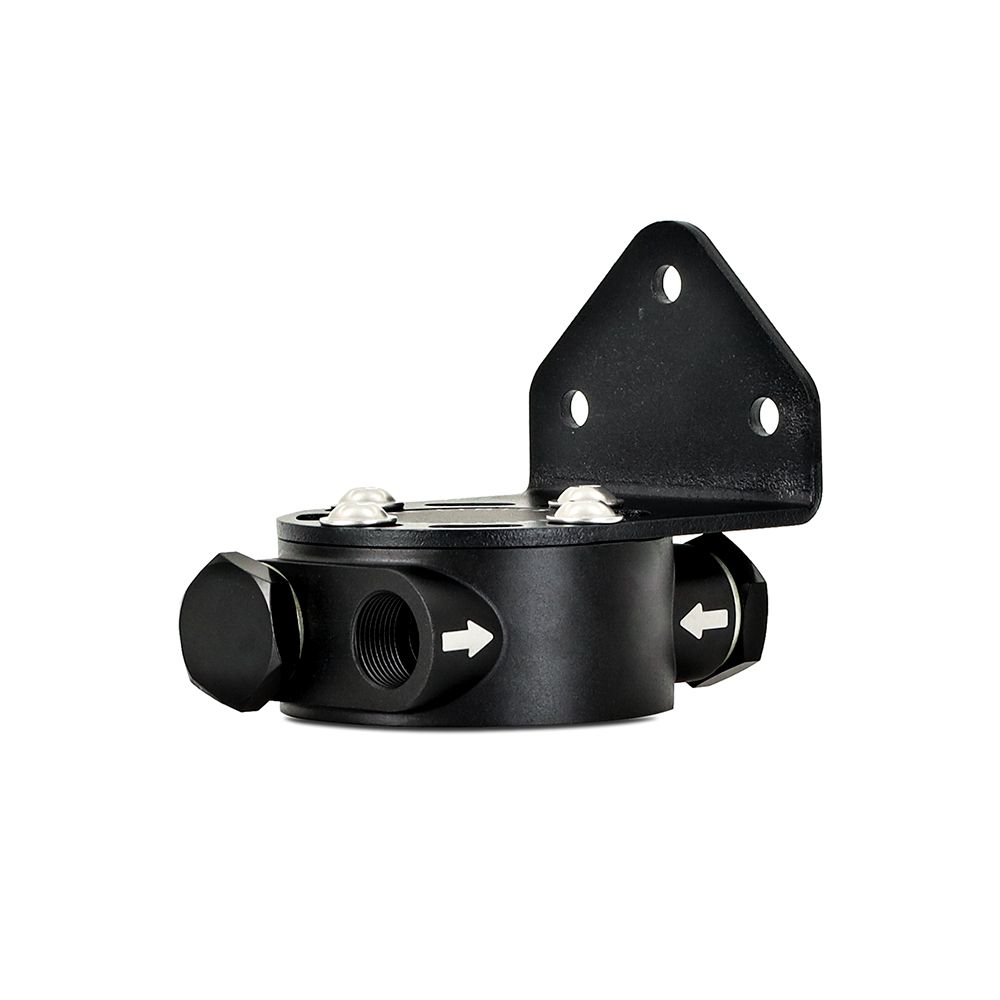

- Inlet and outlet on each side allow for multiple plumbing orientations and easy installation
- Ideal for vehicles with low-mount oil filters that may be vulnerable to debris on the track or trail
- Dowty seal connections ensure reliable leak-free operation

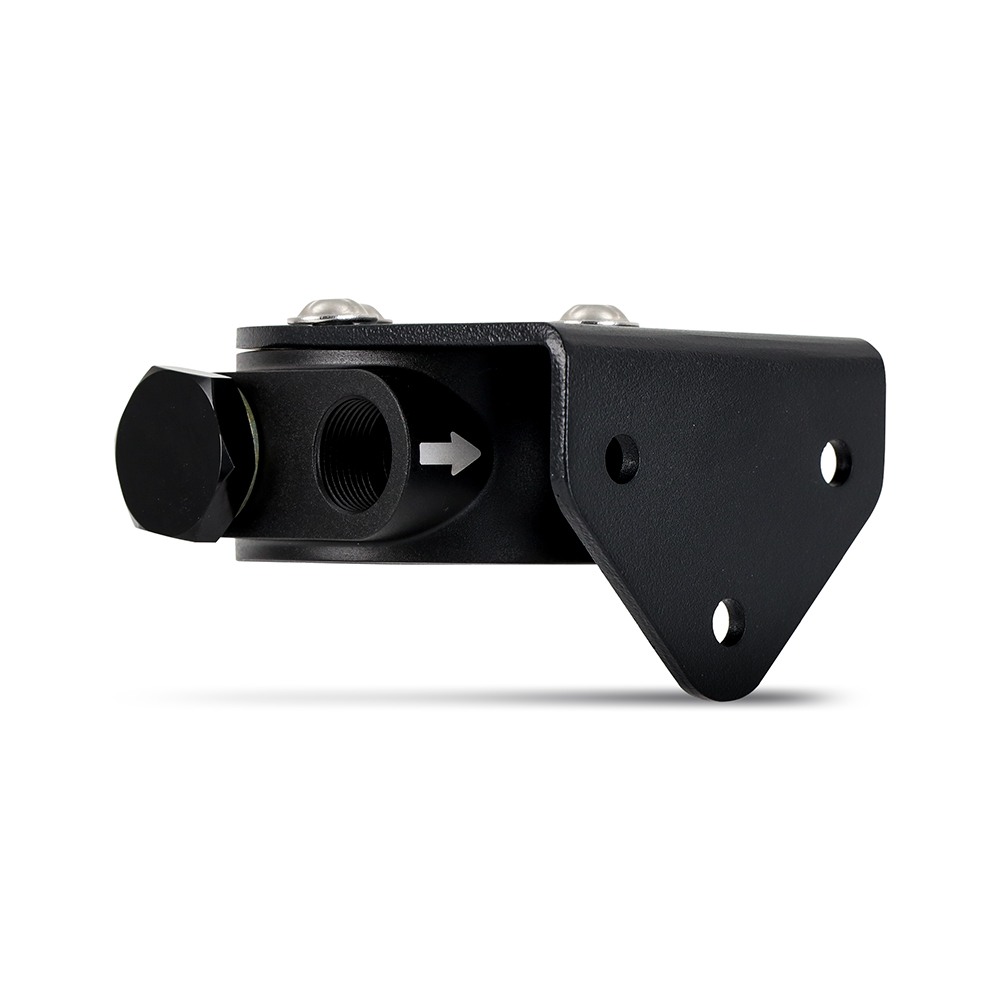

- High-quality stainless-steel filter adapter available in multiple thread sizes

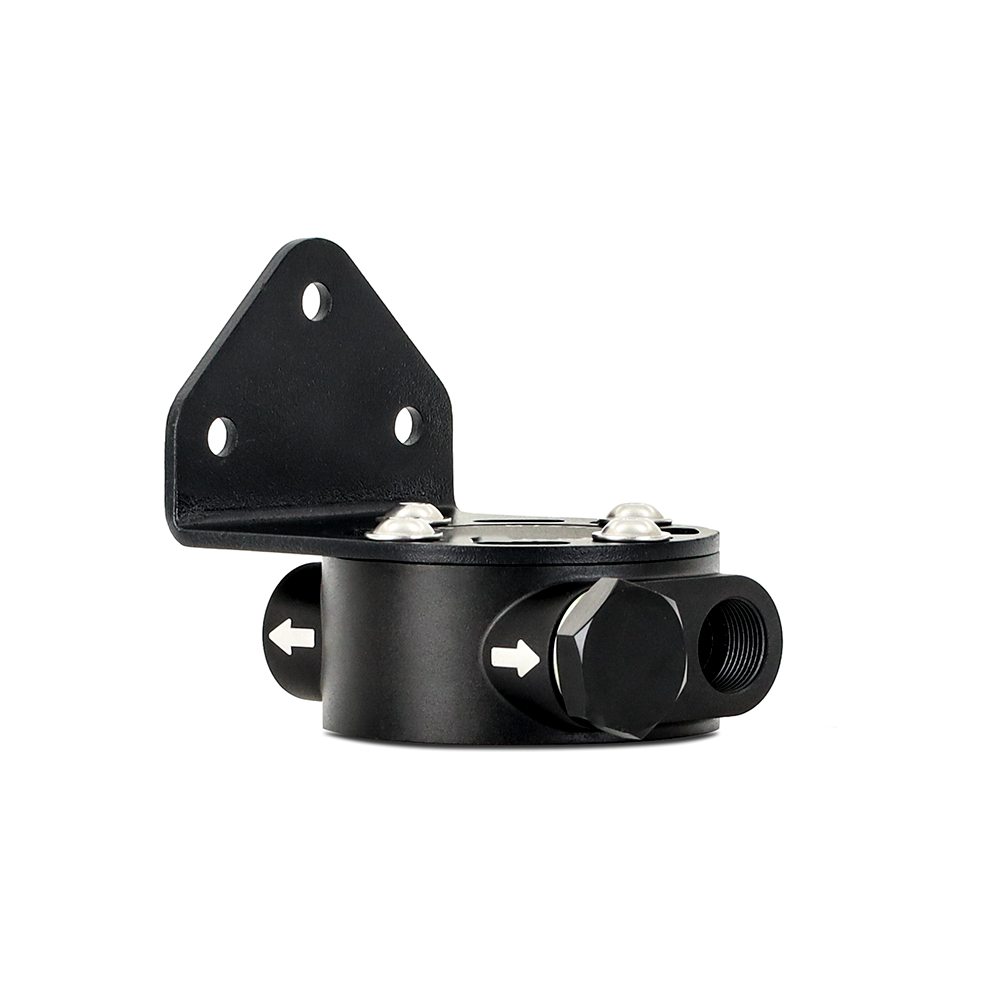

- Includes two M22 x 1.5 plugs for capping unused ports

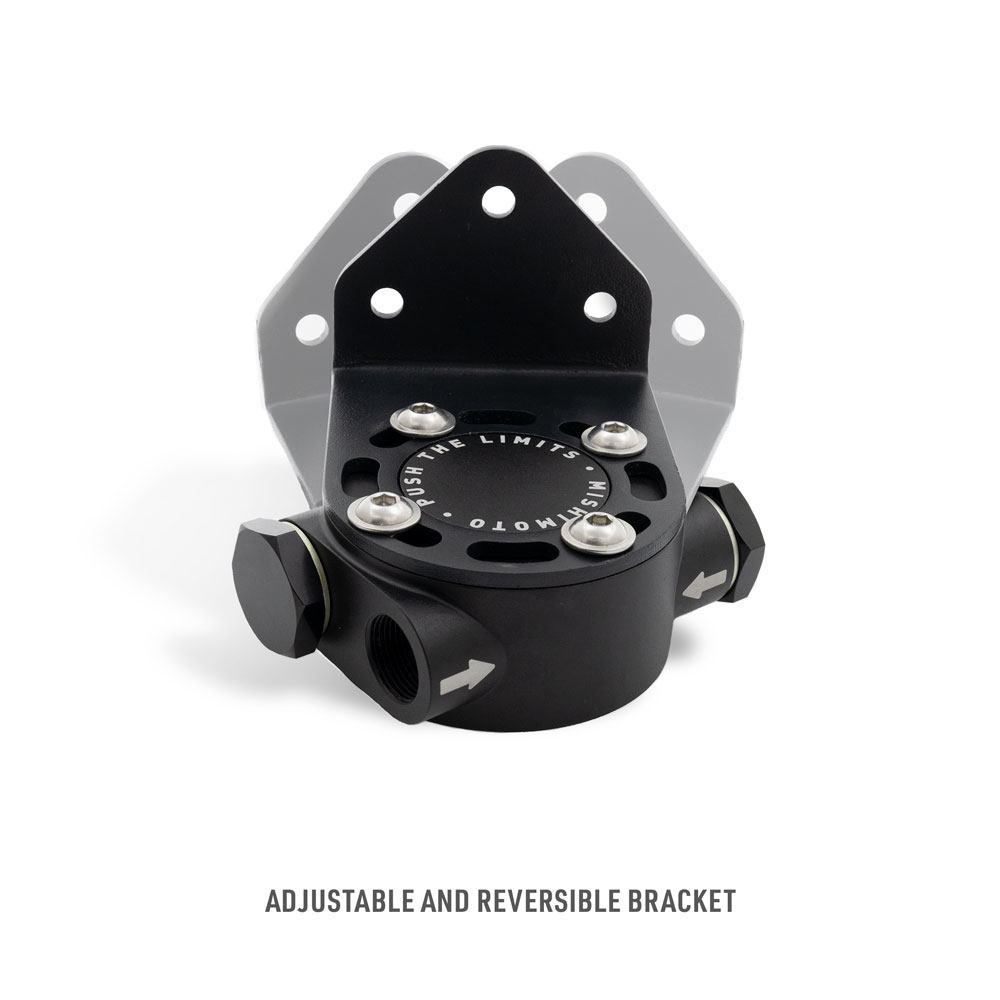

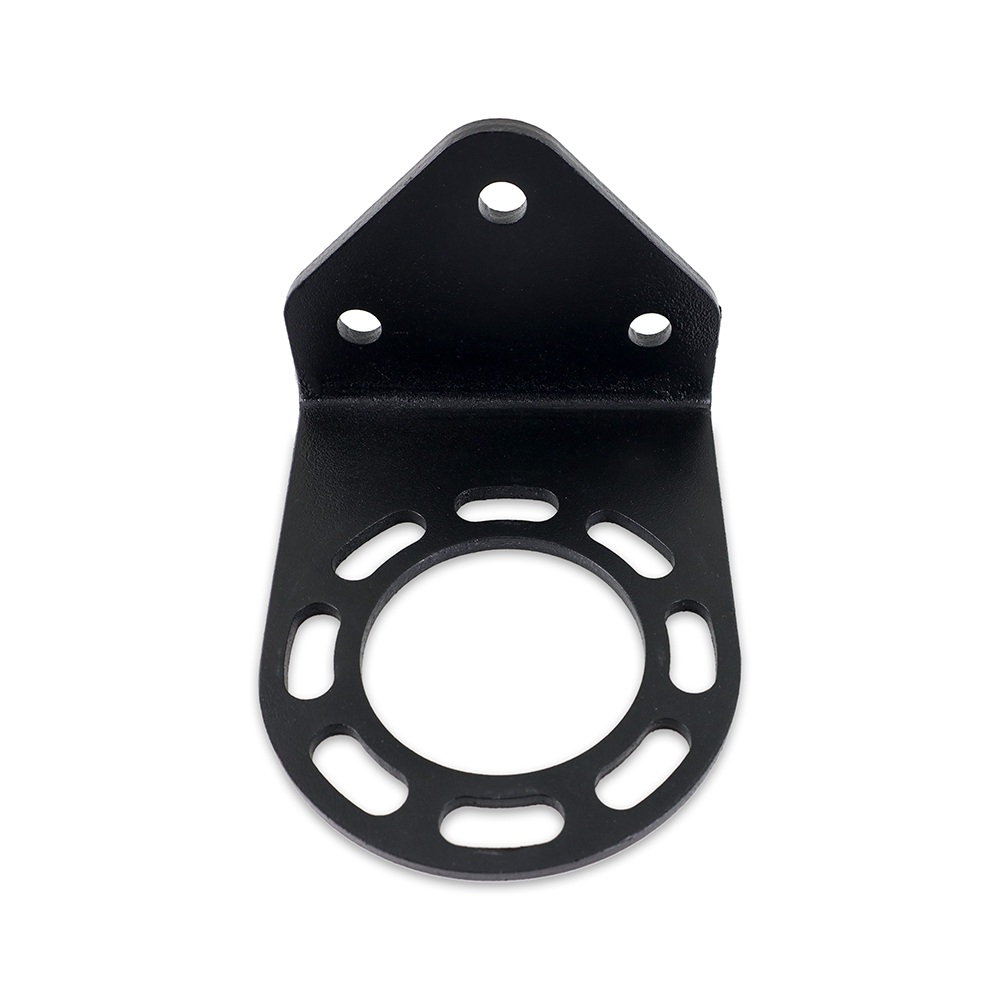

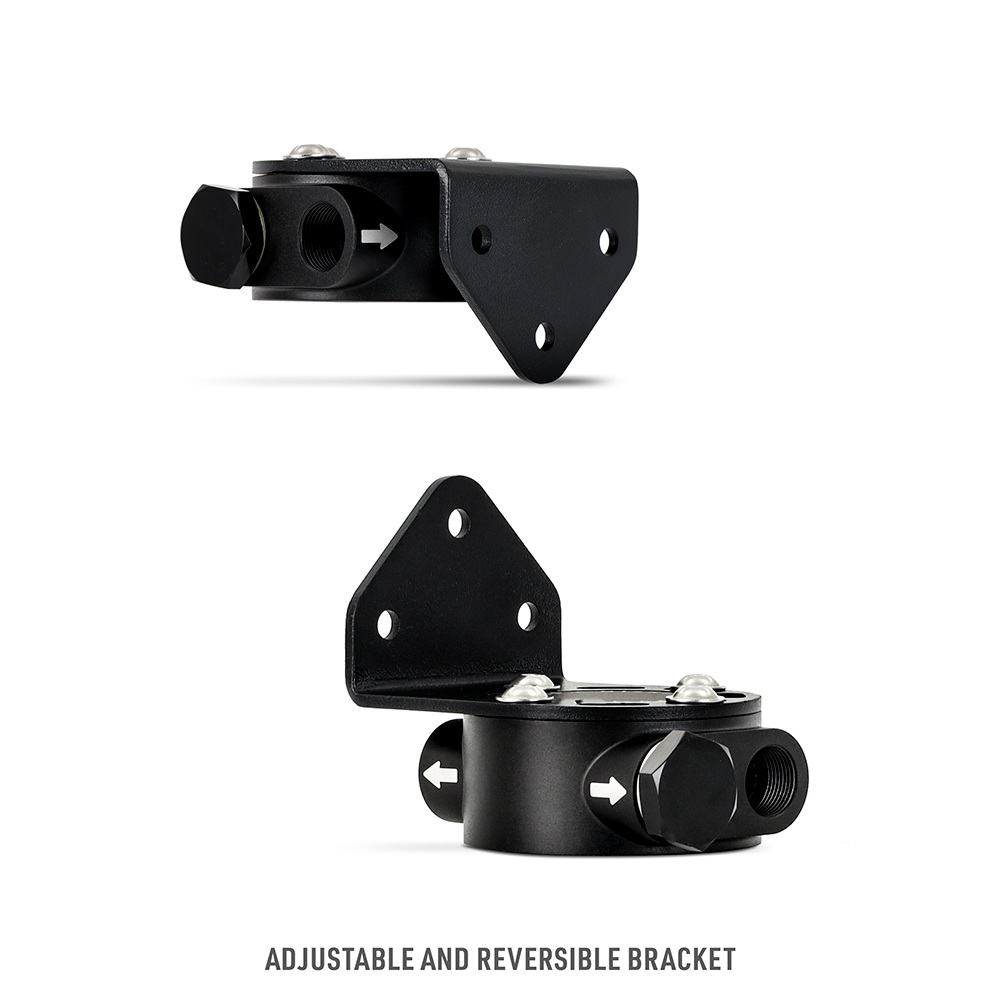

- Robust 4mm-thick steel mounting bracket can be rotated
- Designed for large-format spin-on filters
- Durable anodized finish prevents corrosion
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMOC-RFH-M22BK
- Product Type: Fabrication
- Color: Black
- Finish: Anodized
- Grade Type: Performance
- Filter Thread: M22 x 1.5 Filter Thread, Black
- Minimum Oil Filter Diameter: 2.25 in
- Maximum Oil Filter Diameter: 3.5 in
- Mounting Bracket: 4mm-thick steel
- Ports: Four M22 x 1.5

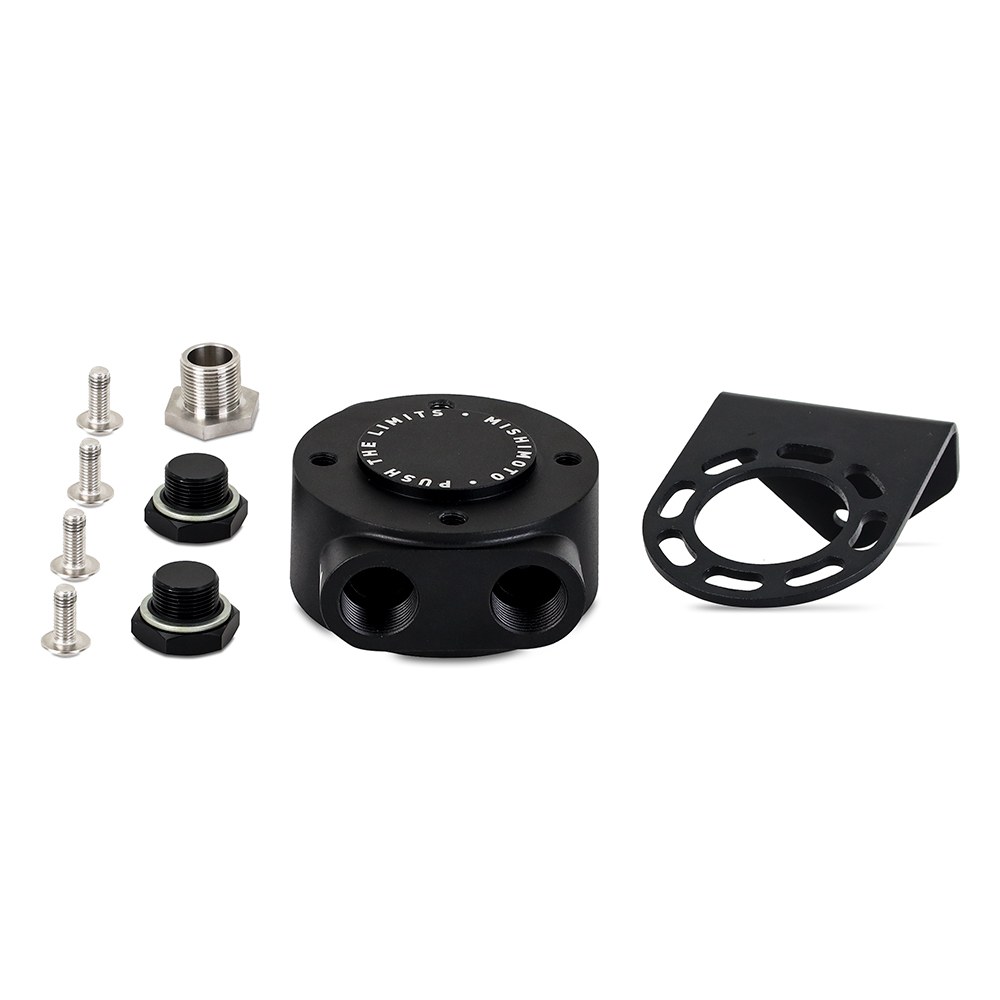

- Includes: Remote Oil Filter Housing, Mounting Bracket, Center Adapter, Center Adapter Locking Ring, M22 x 1.5 Dowty Seal Plugs, M8 x 1.25 Button Head Bolts, Mishimoto Lifetime Warranty
Frequently Asked Questions
What is the Mishimoto Remote Oil Filter Mount used for?
It relocates an oil filter to a more accessible location, addressing confined engine bays, low ground clearance, or the desire to run a large-format filter, and can also make oil changes more manageable.
What is the Remote Oil Filter Mount made from?
It features robust CNC-machined billet 6061 T-6 aluminum construction with a durable anodized black finish, a high-quality stainless-steel filter adapter, and a robust 4mm-thick steel mounting bracket.
What oil filter sizes fit this mount?
This configuration uses an M22 x 1.5 filter thread and accommodates a minimum oil filter diameter of 2.25 in up to a maximum oil filter diameter of 3.5 in.
How many ports does the mount have and what are they for?
It has four M22 x 1.5 ports that provide provisions for oil cooler lines, oil pressure feeds, or sensors, with an inlet and outlet on each side allowing multiple plumbing orientations. Two M22 x 1.5 plugs are included for capping any unused ports.
Do I need additional components to complete an oil filter relocation?
Yes, a complete system also requires a Mishimoto Remote Oil Filter Take-Off Plate, Mishimoto Remote Oil Filter Fittings, and Mishimoto Braided Oil Lines.
Does this part include a warranty?
Yes, the Mishimoto Remote Oil Filter Mount is backed by the Mishimoto Lifetime Warranty.
