Description

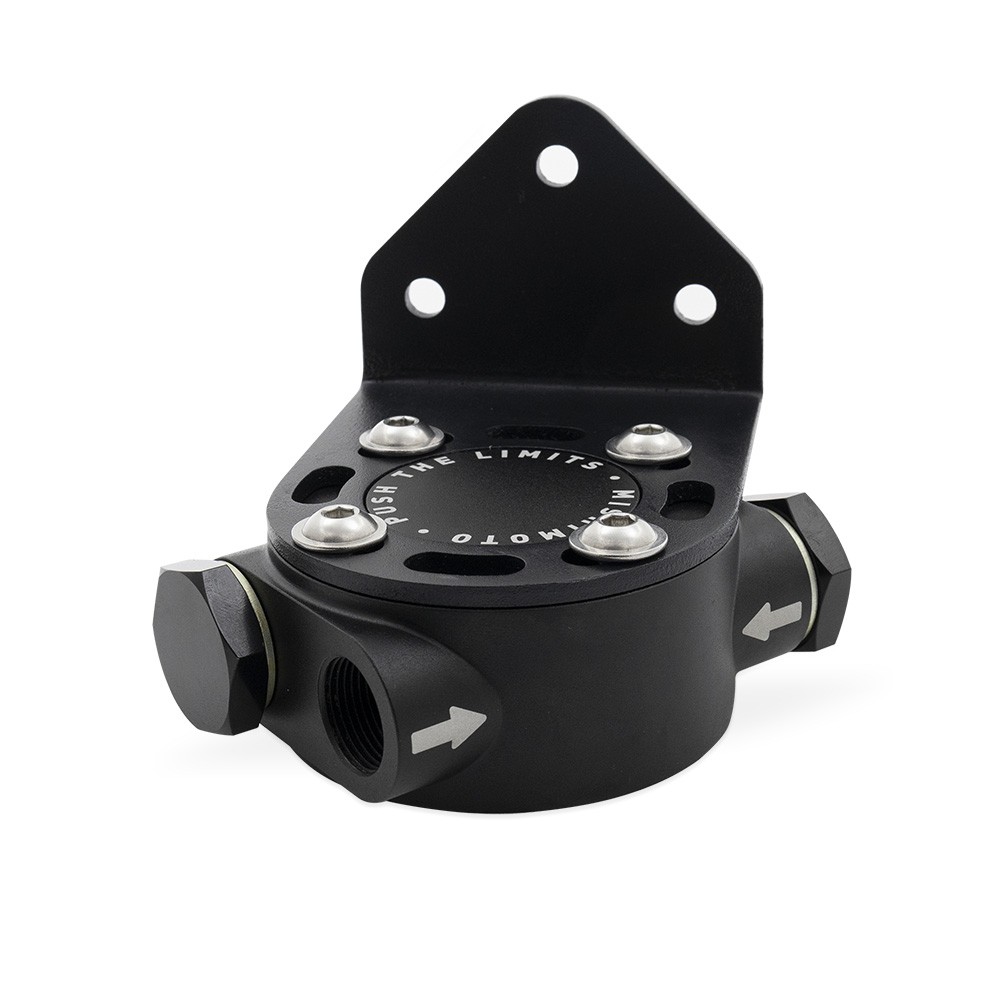

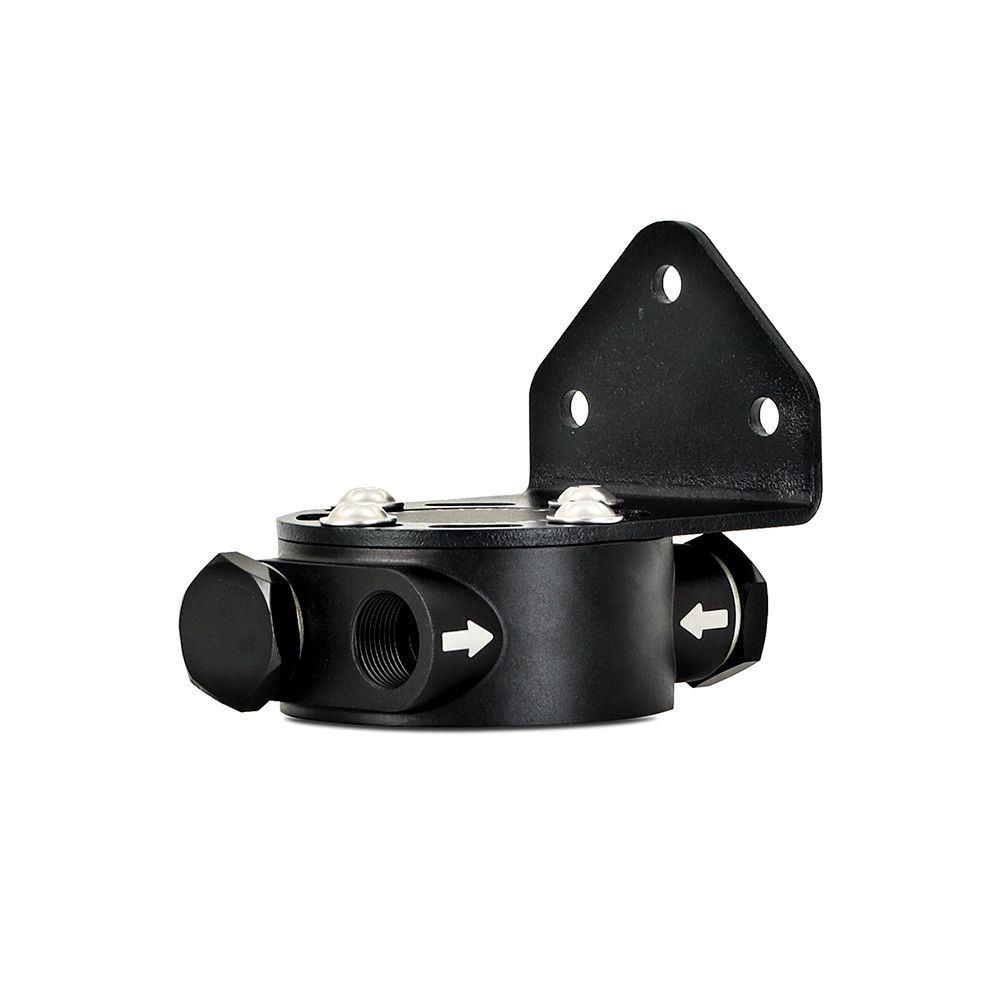

The Mishimoto Remote Oil Filter Mount, part number MMOC-RFH-34BK, is a CNC-machined billet 6061 T-6 aluminum oil filter relocation mount finished in durable anodized black. This particular option is built around a 3/4-16 stainless-steel filter adapter and is engineered to accommodate oil filters ranging from 2.25 in to 3.5 in in diameter, giving builders a genuinely large-format, spin-on-filter-ready solution.
As a core component of Mishimoto’s Fabrication catalog, this remote oil filter mount solves the classic problems of a confined engine bay: it lets you relocate the filter to a more accessible location, improve ground clearance, upgrade to a larger-format filter, or simply make routine oil changes easier to perform. Four M22 X 1.5 ports on the mount provide flexible provisions for oil cooler lines, oil pressure feeds, or sensors, and because there is an inlet and outlet on each side, installers can choose from multiple plumbing orientations to keep the finished install tidy. Dowty seal connections back every port with reliable, leak-free sealing, and two included M22 X 1.5 plugs cap off any ports that go unused. The 4mm-thick steel mounting bracket can be rotated on its adjustable surface, adding real versatility when packaging the mount in tight quarters, and the whole assembly wears a durable anodized finish to help resist corrosion.
Vehicle Applications
This Mishimoto Remote Oil Filter Mount is a universal Fabrication component rather than a vehicle-specific kit, making it well suited to any application where the factory oil filter location is inconvenient or exposed. It’s a particularly good fit for vehicles with low-mount oil filters that may be vulnerable to debris on the track or trail, and its adjustable steel bracket and multi-orientation ports help it adapt to a wide range of engine bay layouts. Note that a complete remote oil filter system also requires additional Mishimoto components — a Remote Oil Filter Take-Off Plate, Remote Oil Filter Fittings, and Braided Oil Lines — to finish the plumbing from your engine to this mount.
Features
- Allows for relocation of the oil filter to a more accessible location
- Robust CNC-machined billet 6061 T-6 aluminum construction
- Four M22 X 1.5 ports provide provisions for oil cooler lines, oil pressure feeds, sensors, etc.
- Inlet and outlet on each side allow for multiple plumbing orientations and easy installation
- Ideal for vehicles with low-mount oil filters that may be vulnerable to debris on the track or trail

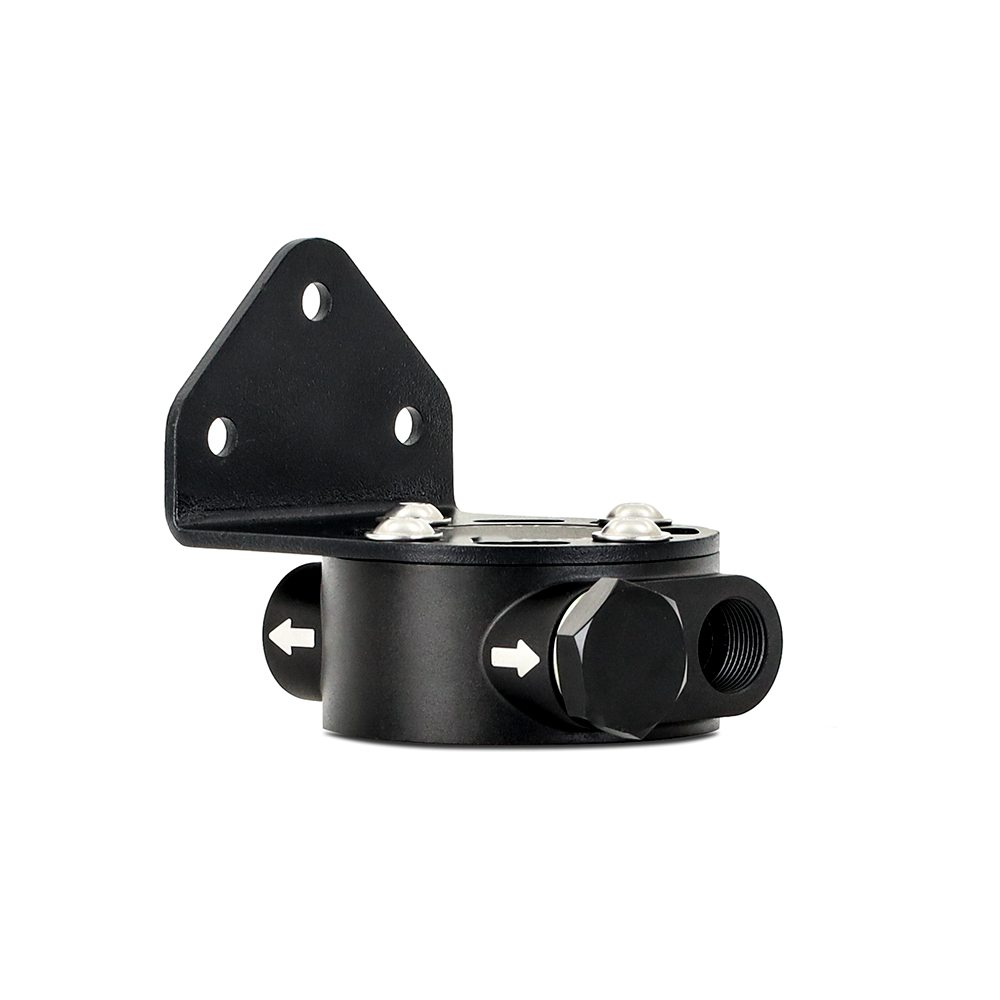

- Dowty seal connections ensure reliable, leak-free operation

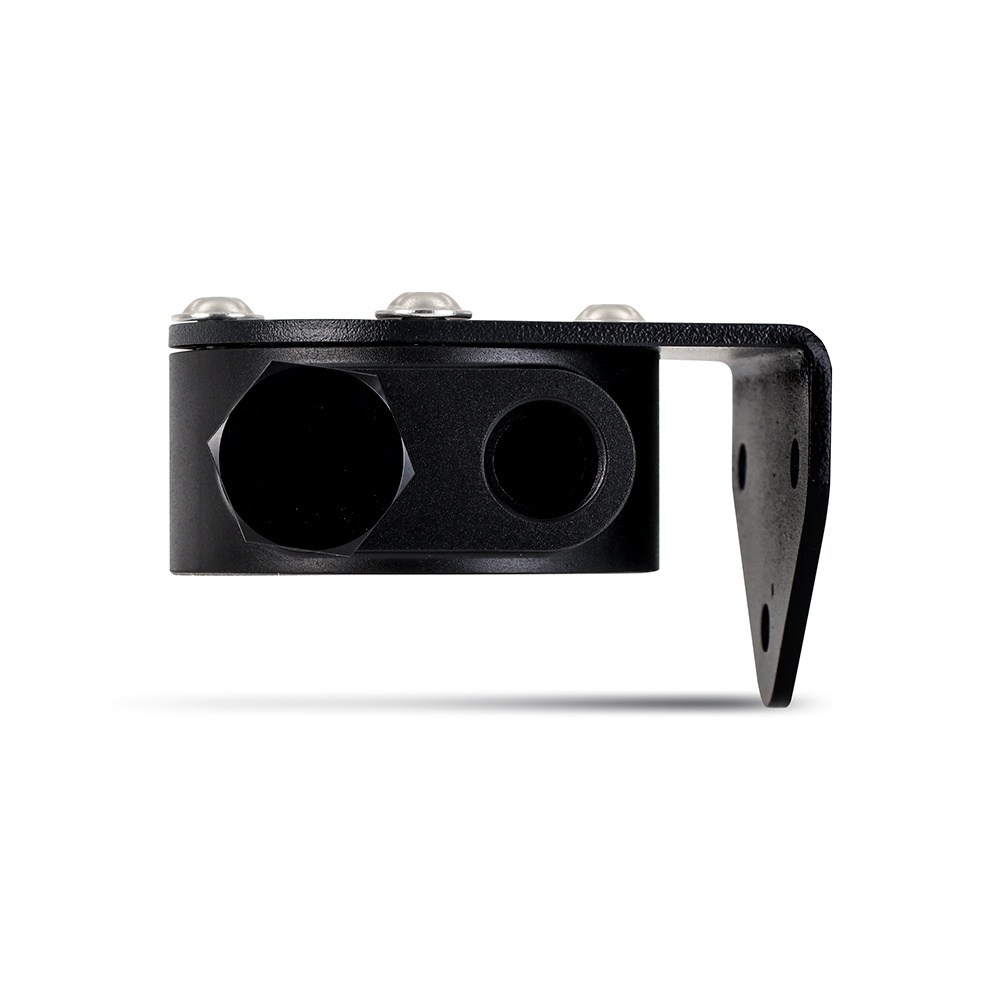

- High-quality stainless-steel filter adapter available in multiple thread sizes
- Includes two M22 X 1.5 plugs for capping unused ports

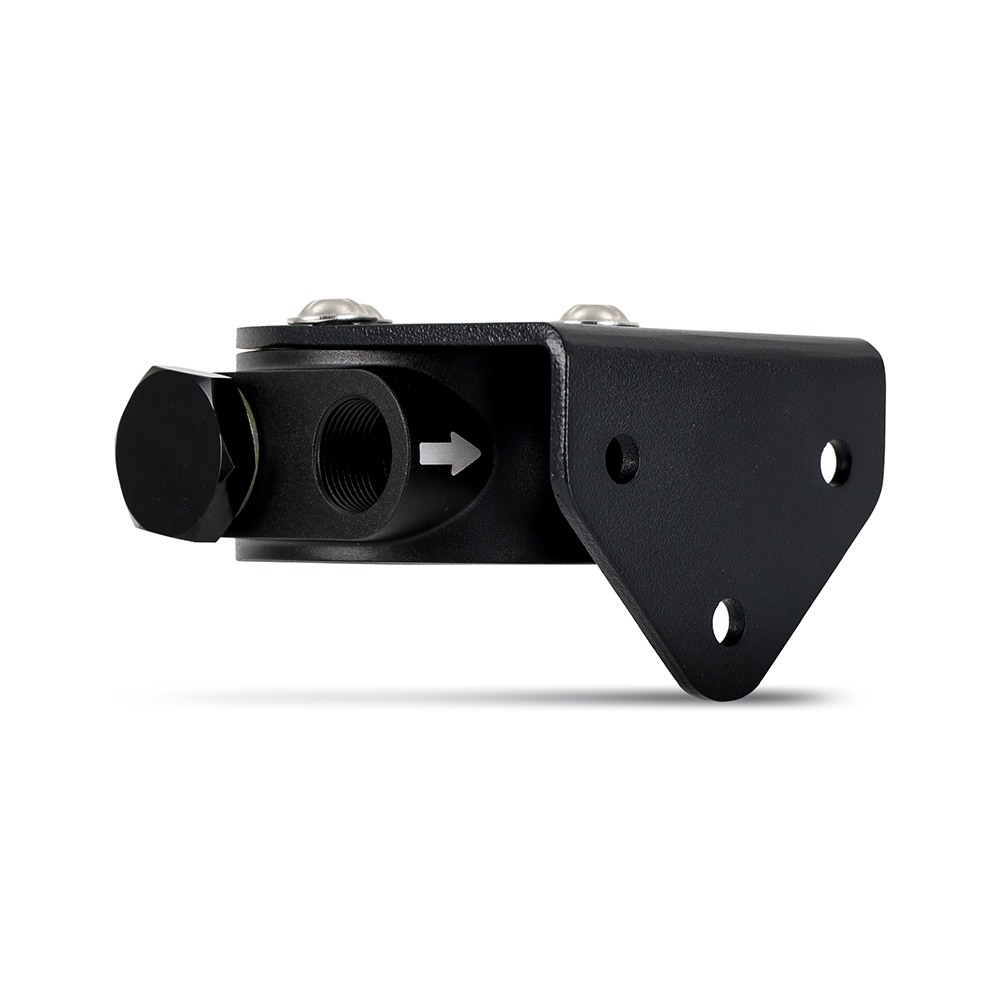

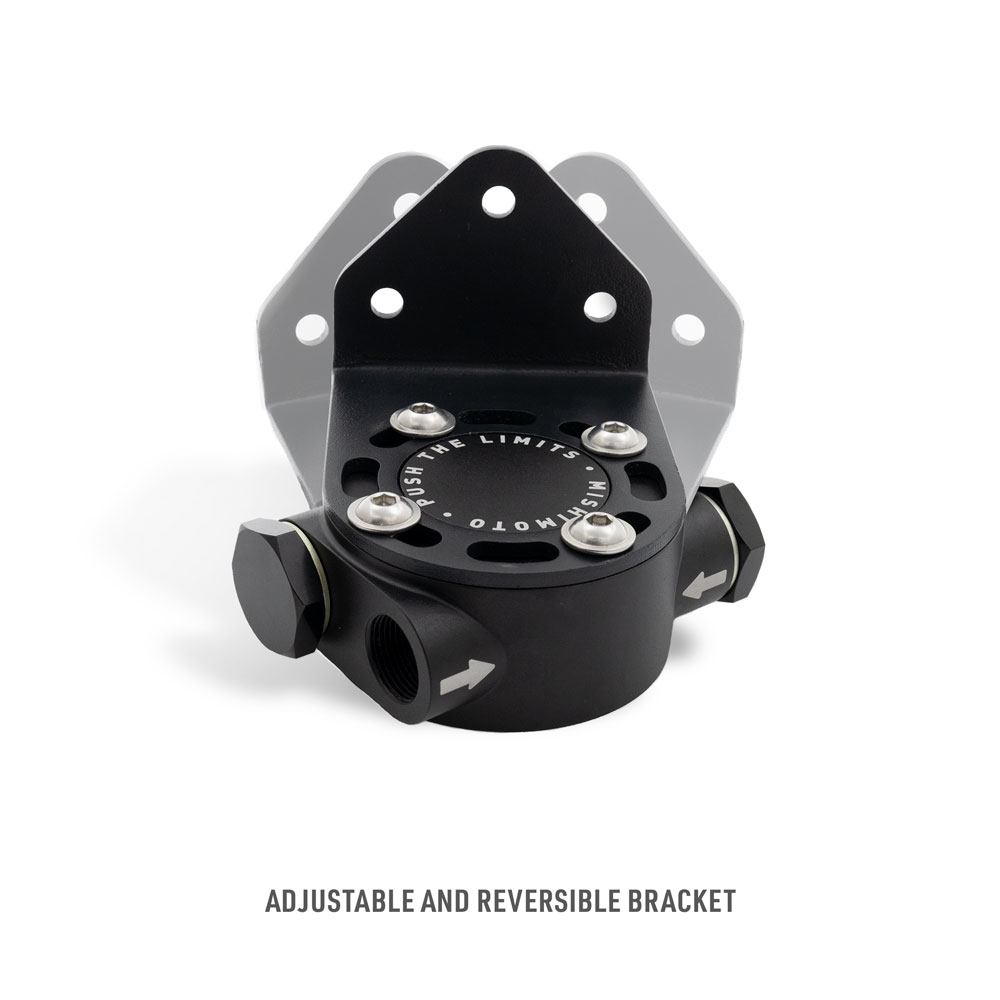

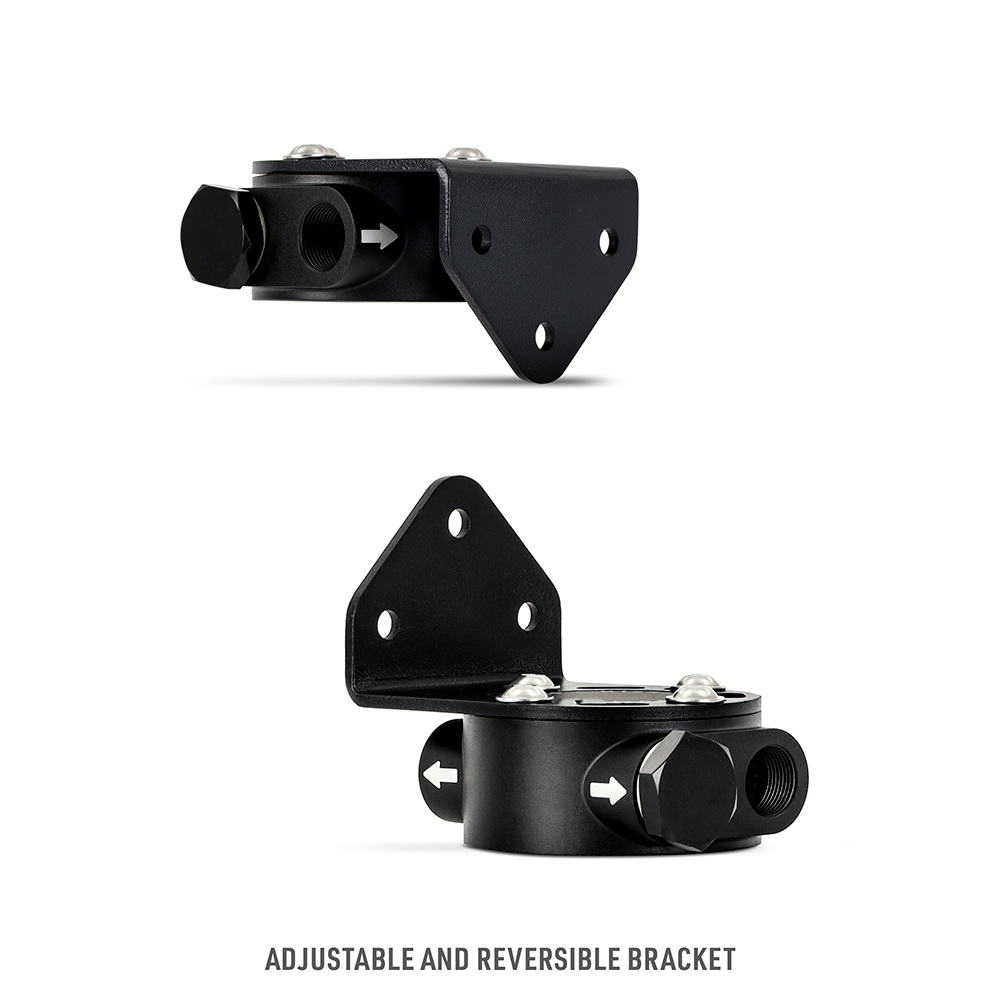

- Robust 4mm-thick steel mounting bracket can be rotated
- Designed for large-format spin-on filters
- Durable anodized finish helps prevent corrosion
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMOC-RFH-34BK
- Product Type: Fabrication
- Finish/Color: Anodized, Black
- Filter Thread (this option): 3/4-16
- Minimum Oil Filter Diameter: 2.25 in
- Maximum Oil Filter Diameter: 3.5 in

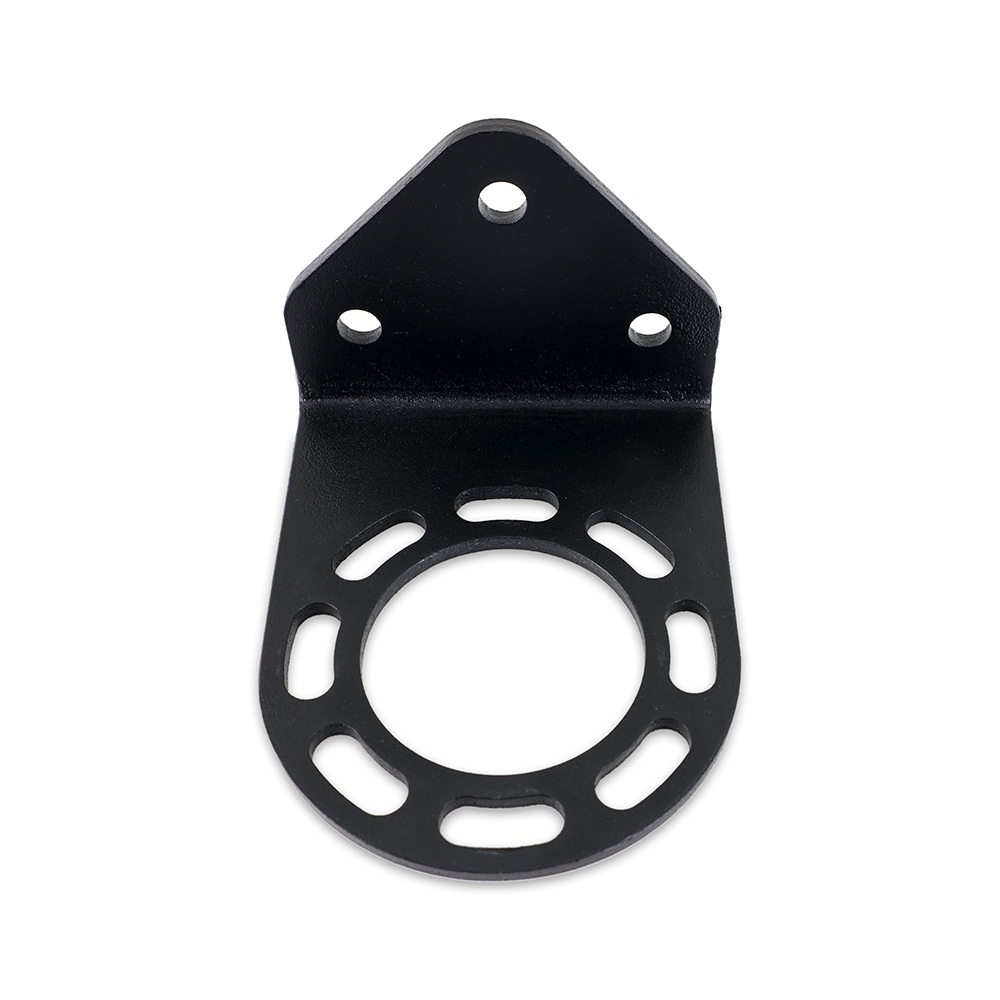

- Mounting Bracket Thickness: 4mm steel
- Ports: Four M22 X 1.5

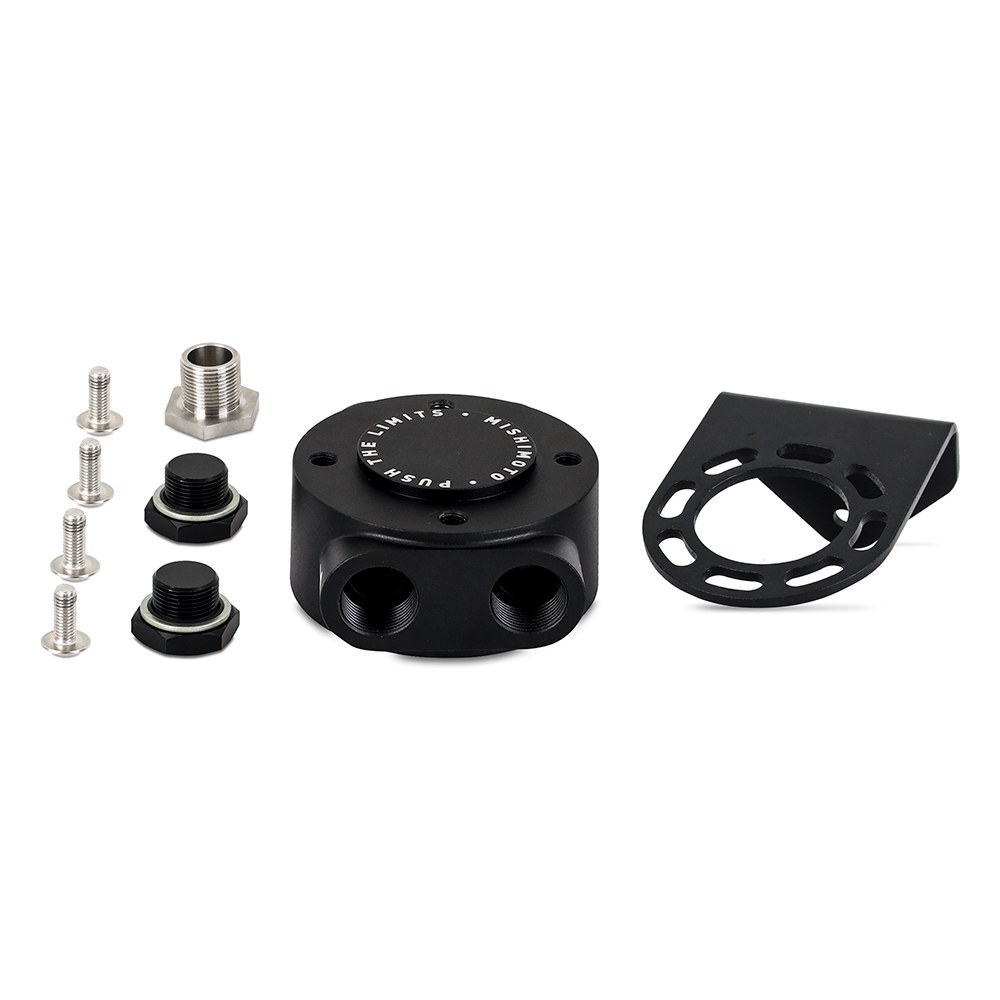

- Includes: Remote Oil Filter Housing, Mounting Bracket, Center Adapter, Center Adapter Locking Ring, M22 X 1.5 Dowty Seal Plugs, M8 X 1.25 Button Head Bolts, Mishimoto Lifetime Warranty
Frequently Asked Questions
What does the Mishimoto Remote Oil Filter Mount (MMOC-RFH-34BK) include?
It includes the Remote Oil Filter Housing, Mounting Bracket, Center Adapter, Center Adapter Locking Ring, M22 X 1.5 Dowty Seal Plugs, M8 X 1.25 Button Head Bolts, and the Mishimoto Lifetime Warranty.
What oil filter sizes work with this mount?
This mount is designed for a minimum oil filter diameter of 2.25 in and a maximum oil filter diameter of 3.5 in.
What filter thread size does this specific option use?
This option, MMOC-RFH-34BK, uses a 3/4-16 filter thread and comes in a black finish.
What is the mount made from?
It features robust CNC-machined billet 6061 T-6 aluminum construction with a durable anodized black finish, paired with a high-quality stainless-steel filter adapter.
Do I need additional parts to complete the relocation?
Yes. Additional components are necessary to install a complete remote oil filter system, including a Mishimoto Remote Oil Filter Take-Off Plate, Remote Oil Filter Fittings, and Mishimoto Braided Oil Lines.
Is this mount covered by a warranty?
Yes, it includes the Mishimoto Lifetime Warranty.
