Description

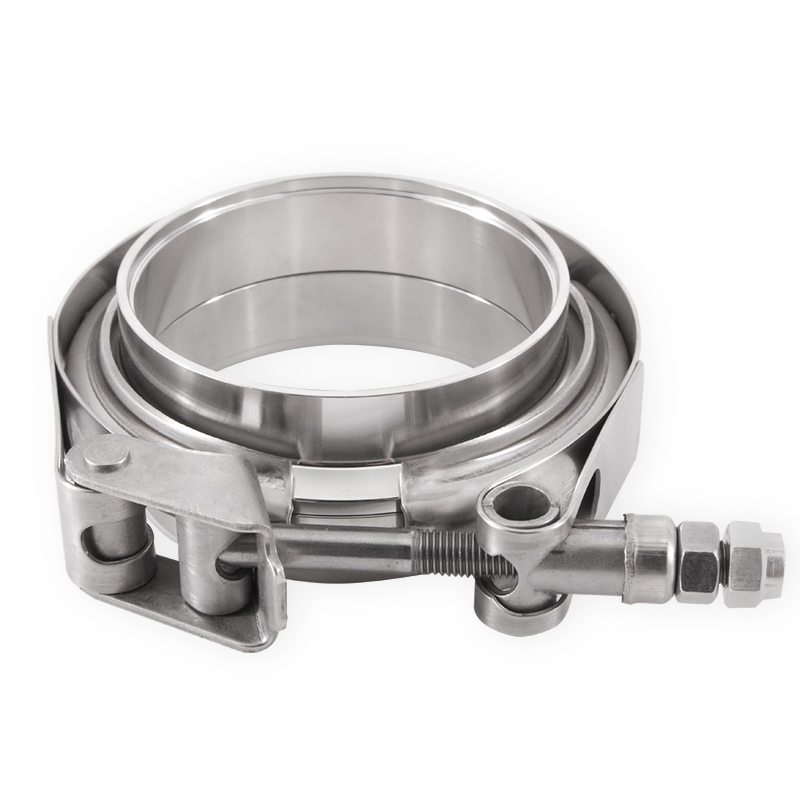

The Mishimoto MMCLAMP-VS-25 is a 2.5-inch stainless steel V-band clamp engineered specifically for fabricators who need a rigid, leak-free connection between pipes. Unlike a standard clamp, this Mishimoto Fabrication piece ships with both a reusable fabrication nut for mock-up and a separate self-locking nut for the final install, so you tack-weld first and torque down for good later. It’s a Mishimoto part through and through, built to the same standard as the rest of the brand’s clamp lineup.
This V-band clamp gives fabricators a stronger, more repeatable way to join 2.5-in (63.5mm) pipe sections than traditional couplers. The included male/female flanges are counterbored to keep pipes properly aligned for welding, and once mated, the interlocking flanges create a leak-free seal without the need for a gasket. Because the design is a quick-release V-band rather than a bolted coupling, assembly and disassembly stay fast even on components that need to come apart often, such as turbochargers, charge pipes, and intercooler piping. The polished stainless steel construction is built to resist rust and corrosion, and the clamp is backed by the Mishimoto Lifetime Warranty.
Vehicle Applications
This is a universal-fit fabrication clamp rather than a vehicle-specific part, so it isn’t tied to a particular make, model, or year. It’s intended for anyone fabricating or modifying 2.5-in stainless steel exhaust piping, intercooler and charge pipes, intake tubing, or turbocharger connections, making it a flexible option for custom builds and shop fabrication work across a wide range of vehicles.
Features
- Includes V-band clamp and male/female flanges
- Provides a rigid and secure connection between 2.5-in (63.5mm) pipes
- Ideal for stainless steel exhaust pipes, intercooler and charge pipes, intakes, and turbochargers
- Counterbored flanges ensure proper pipe alignment for easy welding
- Interlocking flanges provide a leak-free seal without a gasket
- Reusable fabrication nut makes fabrication easy
- Provides stronger retention than other coupling methods
- Quick-release design is ideal for parts requiring frequent disassembly
- Stainless-steel construction resists rust and corrosion in even the harshest environments
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMCLAMP-VS-25
- Product Type: Fabrication
- Material: Stainless Steel
- Finish: Polished
- Color: Silver
- Pipe Diameter: 2.5 IN
- Maximum Clamp Diameter: 2.5 IN
- Minimum Clamp Diameter: 2.5 IN
- Band Width: 0.91 in
- Clamping Type: V Band
- Nut Type: Self-locking
- Flange Included: Yes
- Performance Rated: Yes
- Grade Type: Performance
- Universal Or Specific Fit: Universal
- Clamp Style: Stainless Steel V-Band Flange with Clamp
- Includes: (1) Mishimoto Stainless Steel V-Band w/ Clamp, (1) Reusable Fabrication Nut, (1) Self-Locking Nut, Mishimoto Lifetime Warranty
Frequently Asked Questions
What size pipe does the Mishimoto MMCLAMP-VS-25 fit?
This V-band clamp is designed for 2.5-in (63.5mm) pipe diameter, with a maximum and minimum clamp diameter of 2.5 IN.
What is included with this V-band clamp?
It includes (1) Mishimoto Stainless Steel V-Band w/ Clamp, (1) Reusable Fabrication Nut, (1) Self-Locking Nut, and the Mishimoto Lifetime Warranty.
What is the fabrication nut used for?
The reusable fabrication nut allows you to assemble the V-band clamp, tack-weld your pipes in place, then disassemble the clamp for final welding before reassembling with the provided self-locking nut.
What material is the clamp made from?
The clamp is made from stainless steel with a polished silver finish, which resists heat and corrosion.
Is this clamp vehicle-specific?
No, this is a universal-fit V-band clamp intended for fabricating connections in 2.5-in stainless steel exhaust pipes, intercooler and charge pipes, intakes, and turbochargers rather than a specific vehicle.
What warranty does this clamp come with?
This Mishimoto V-band clamp is backed by the Mishimoto Lifetime Warranty.
