Description

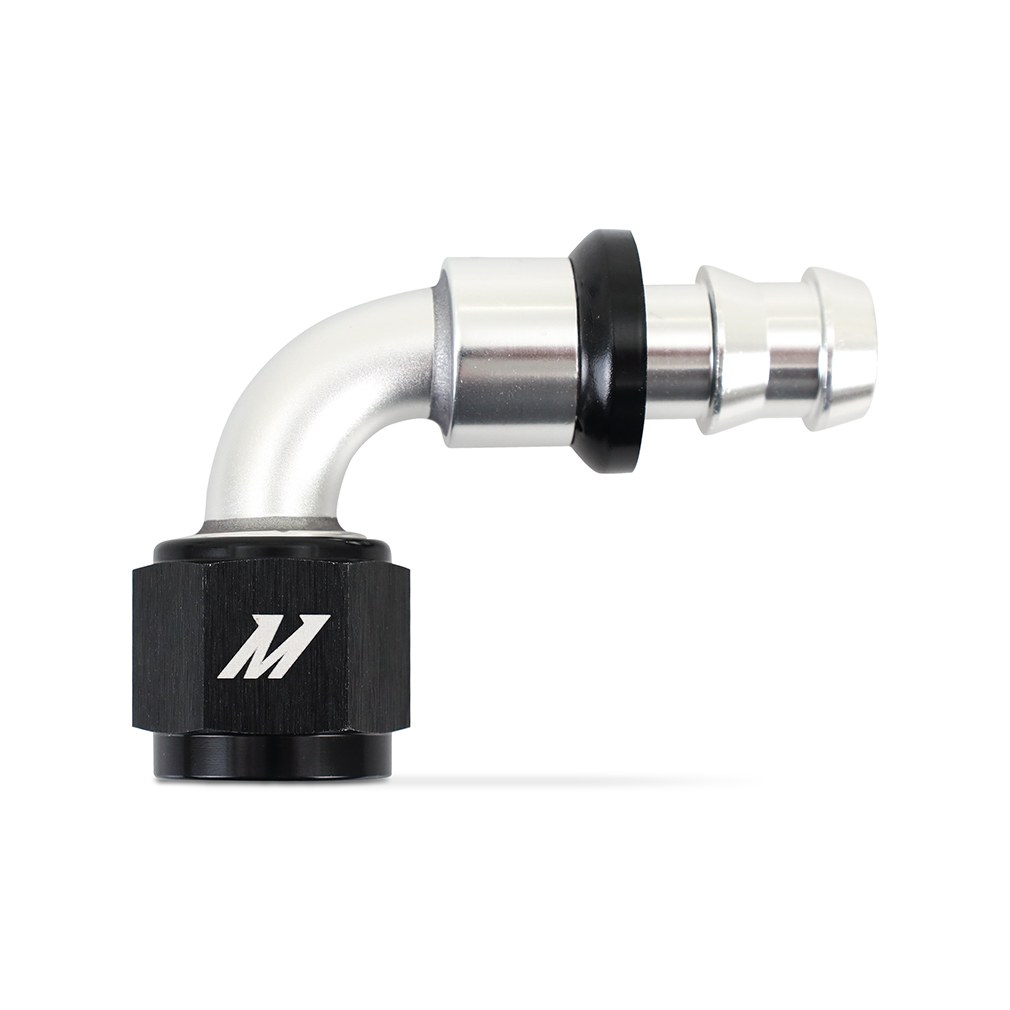

The Mishimoto -8AN Push Lock Fitting (MMFT-PL-890) is a 90-degree, silver and black anodized aluminum fitting built for anyone tackling a custom fabrication project that needs a fast, leak-free way to route -8AN line. One end features a -8AN push-lock port for quick, tool-free assembly, while the other uses a 3/4 in – 16 UNF connection, letting you tie into oil coolers, transmission coolers, catch cans, and similar builds without fighting traditional barb-and-clamp hardware.
Precision machining keeps the -8AN push-lock end true to spec, so pushing a compatible -8AN line onto the fitting creates a secure, leak-free connection in minutes rather than hours. Rated to withstand up to 5000 PSI of fluid pressure and fluid temperatures as high as 248°F, this Mishimoto fitting is engineered to handle engine oil, coolant, fuel, and other fluids common to performance fabrication work. The silver and black anodized coating resists corrosion while giving the finished install a clean, purposeful look under the hood, and every Mishimoto -8AN Push Lock Fitting is backed by the Mishimoto Lifetime Warranty.
Vehicle Applications
This is a universal Mishimoto Fabrication component rather than a vehicle-specific part, so no particular make, model, or year fitment is specified. It is intended for use in custom -8AN plumbing setups such as oil coolers, transmission coolers, and catch cans, making it a flexible addition to a wide range of fabrication and performance builds.
Features
- -8AN push lock port for simple installation
- Offered in straight, 45-degree, 90-degree, and 180-degree angles to allow for easy routing of lines (this listing is the 90-degree version)
- Precision machining provides a leak-free connection with -8AN line
- Perfect for use with engine oil, coolant, fuel, etc.
- Corrosion-resistant anodized coating provides a sleek, durable finish
- Engineered to withstand high temperatures and substantial pressures
- Assembles in minutes
- Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMFT-PL-890
- Product Type: Fabrication
- Color: Silver and Black
- Angle: 90-Degree
- End 1 Type: 3/4 in – 16 UNF
- End 2 Type: -8AN Push-Lock
- Grade Type: Performance
- Max Fluid Temperature: 248°F
- Max Fluid Pressure: 5000 PSI
- Includes: Mishimoto -8AN Push Lock Fitting, Mishimoto Lifetime Warranty
Frequently Asked Questions
What angle is this Mishimoto push lock fitting?
This version of the MMFT-PL-890 is the 90-degree angle option.
What connections does it use?
One end is a 3/4 in – 16 UNF fitting and the other is a -8AN Push-Lock connection.
What is the maximum pressure and temperature rating?
It is rated to a maximum fluid pressure of 5000 PSI and a maximum fluid temperature of 248°F.
What finish does the fitting have?
It features a silver and black anodized aluminum finish that resists corrosion.
What fluids can this fitting be used with?
It is suited for use with engine oil, coolant, fuel, and similar fluids in custom fabrication applications like oil coolers, transmission coolers, and catch cans.
What is included and is it covered by a warranty?
Each purchase includes one Mishimoto -8AN Push Lock Fitting and is backed by the Mishimoto Lifetime Warranty.
