Description
The Mishimoto MMRT-F2D-11PN is a fully-welded aluminum primary degas tank engineered specifically to replace the failure-prone plastic coolant overflow tank on the 2011-2019 Ford Super Duty 6.7L Powerstroke. Repeated heat cycling makes the factory plastic tank brittle over time, leading to cracks and coolant leaks, and Mishimoto’s answer is to eliminate the plastic altogether in favor of durable, precision TIG-welded aluminum.
Beyond simply swapping materials, this Mishimoto Cooling component is built to improve how your Super Duty’s cooling system performs day to day. An integrated sight glass lets you check coolant level at a glance without removing a cap, while internal baffles keep coolant positioned near the overflow port during aggressive driving to help prevent air from entering the coolant system. The tank also delivers an 8.8-percent increase in coolant capacity over the factory unit and is designed to work with your factory cap, so there’s no need to source a replacement cap for installation.
Vehicle Applications
This degas tank is built for the 2011-2019 Ford F-250 Super Duty and F-350 Super Duty equipped with the 6.7L Powerstroke. On the F-250 side, it fits XL and XLT trims across the full 2011-2019 range, Lariat, King Ranch, and Platinum trims (Platinum from 2013-2019), the Limited trim from 2018-2019, the FX4 trim from 2011-2014, and the Base trim from 2015-2016. On the F-350 side, it fits XL, XLT, Lariat, and King Ranch trims across 2011-2019, Platinum from 2013-2019, Limited from 2018-2019, and XL Plus from 2017-2019.
Features
- Fits 2011-2019 Ford 6.7L Powerstroke F-250 and F-350 Super Duty trucks
- Full-aluminum construction with durable, precision TIG-welds
- Integrated sight glass allows for quick and easy reading of coolant level

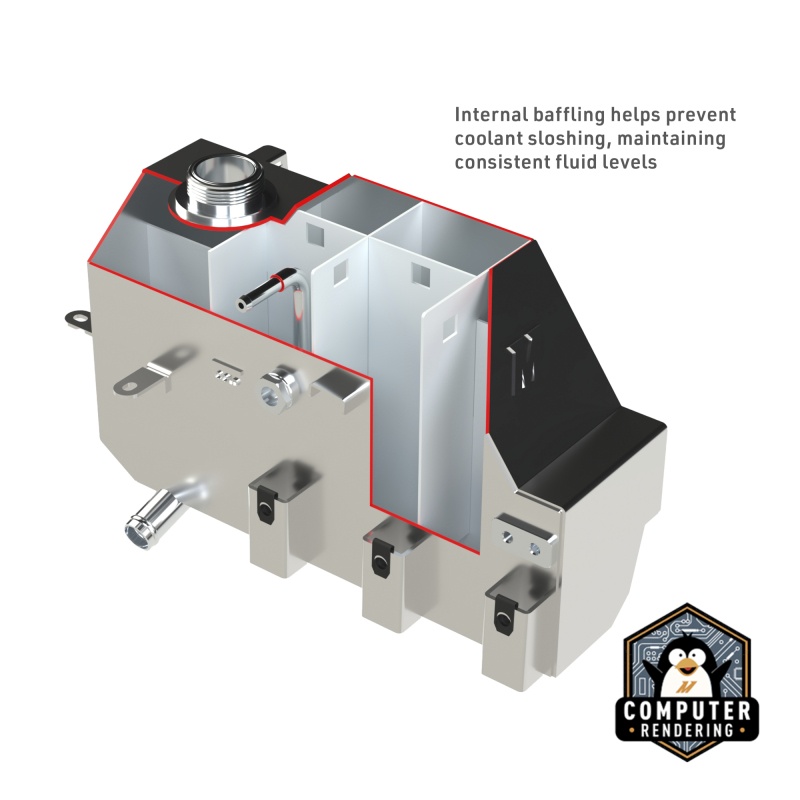

- Internal baffles keep coolant near the overflow port during aggressive driving, preventing air entry into the coolant system
- 8.8-percent increase in coolant capacity over the factory tank
- Available in natural or micro-wrinkle black powder coated finish; natural finish is customization-ready for powder coating, anodizing, or hydro-dipping (services not provided by Mishimoto)
- Fits with the stock cap
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Chassis codes: F-250, F-350
- Engine code: 6.7L Powerstroke
- Fluid capacity: 7.78 gal

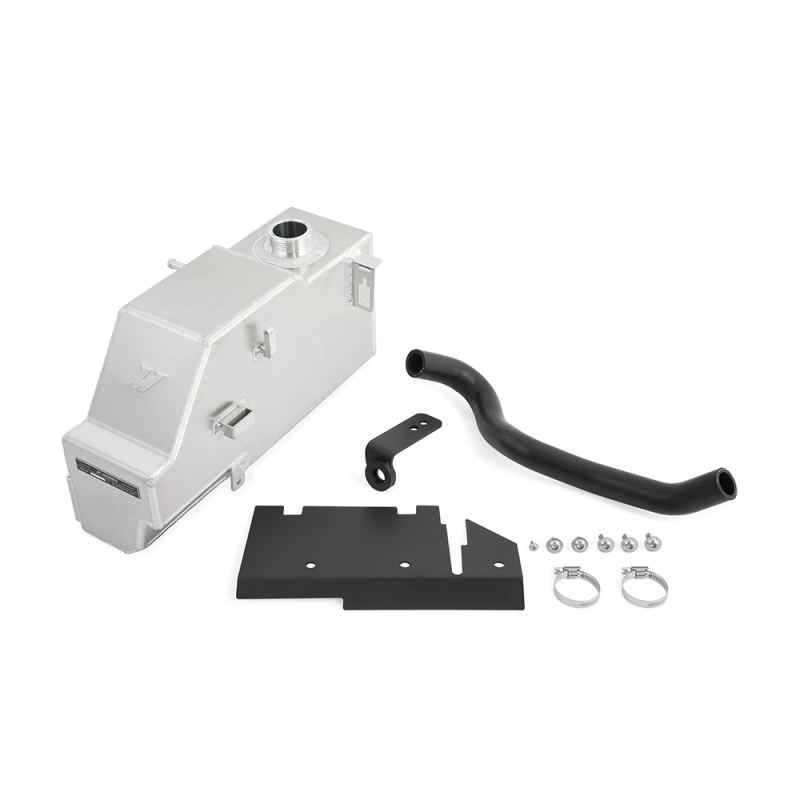

- Includes: (1) Mishimoto Aluminum Degas Tank w/ Sight Glass, (1) Lower Coolant Hose, (2) Mounting Brackets, (2) Worm Gear Clamps, Mounting Hardware, Mishimoto Lifetime Warranty
- Worm-gear clamp torque: 22 in-lbs (2.5NM) recommended, operating range 18-27 in-lbs (2-3NM), do not exceed 27 in-lbs (3NM)
Frequently Asked Questions
Why replace the factory degas tank with this Mishimoto aluminum unit?
The factory plastic degas tank can become brittle after repeated heat cycles and eventually crack or leak. Mishimoto’s fully-welded aluminum design is built to avoid that failure point.
Does it come with a sight glass?
Yes, an integrated sight glass allows for quick and easy reading of coolant level. Mishimoto recommends checking it after a few heat cycles to confirm proper coolant level.
Will my stock coolant cap still work?
Yes, this degas tank fits with the stock cap.
Is any cutting required for installation?
Cutting of the stock battery tray is required to remove the stock degas tank from the battery tray; installation guide instructions cover this step. If the stock battery tray cannot be reused, a replacement tank and tray are available from Ford under part number BC3Z8A080H (2011-2016) or HC3Z-8A080-D (2017-2019).
What finish options are available?
This degas tank is available in a natural finish or a micro-wrinkle black powder coated finish. The natural finish may show some surface imperfections that will not affect powder coating or other customization, which Mishimoto does not provide as a service.
What’s included in the kit?
The kit includes the Mishimoto aluminum degas tank with sight glass, a lower coolant hose, two mounting brackets, two worm gear clamps, mounting hardware, and the Mishimoto Lifetime Warranty.
