Description

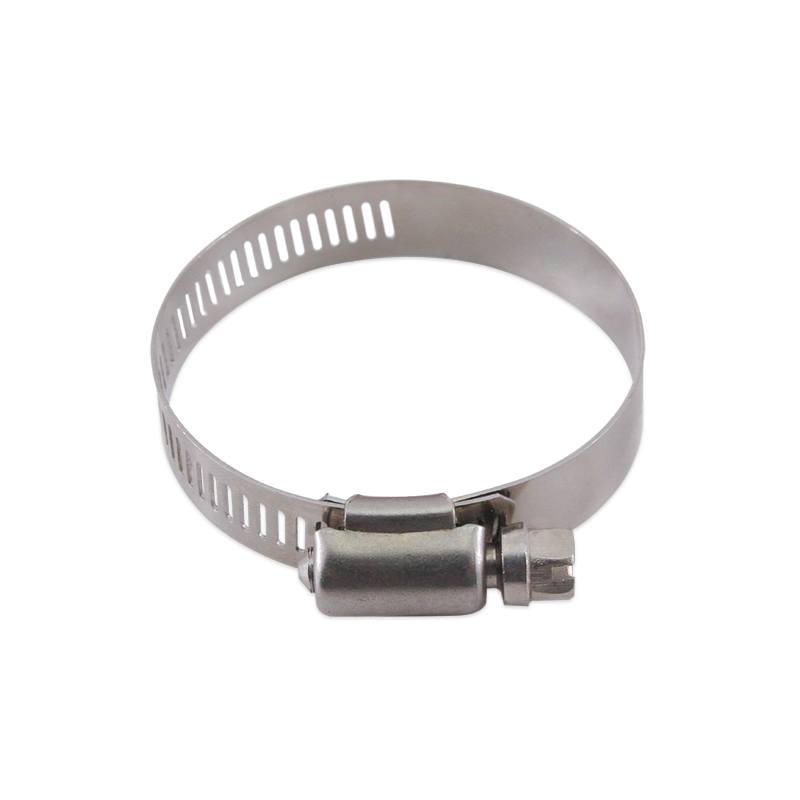

The Mishimoto High-Torque Worm Gear Clamp (MMCLAMP-WG-20HT) is a stainless steel worm gear clamp engineered to secure hoses, couplers, and pipes with an outside diameter between 0.43 and 0.79 inches (11mm-20mm). Sold in a pack of ten, this Mishimoto Fabrication clamp features a silver, plain-finish stainless steel band paired with a worm gear tightening mechanism built to hold a dependable seal in demanding underhood environments.
Built for fabrication and hose-clamping projects across the engine bay, this high-torque worm gear clamp resists corrosion longer than standard zinc-plated hardware thanks to its full stainless steel construction, including a steel spring for consistent clamping pressure. The worm gear design allows for quick, controlled tightening, and Mishimoto recommends a tightening torque of 35 in-lbs (4 NM) to help achieve a secure, leak-resistant seal without over-tightening. Reusable and finished with a premium-grade stainless steel band 0.31 inches wide, these clamps are designed to handle applications ranging from vacuum lines to intake pipes, and this clamp line is also offered with an optional wear-resistant titanium nitride gold coating for unique engine bay styling.
Vehicle Applications
As a Fabrication-category part, this Mishimoto worm gear clamp is not limited to a single make or model. Instead, it is built to fit any vehicle, engine bay, or fabrication project that requires clamping a hose, coupler, or pipe with an outer diameter between 0.43 and 0.79 inches (11mm-20mm). Whether you’re building custom intake piping, securing vacuum lines, or replacing a worn factory-style clamp on a hose within this diameter range, this clamp provides a versatile clamping solution across a wide range of applications.
Features
- Securely clamps pipes, couplers, and hoses with an outer diameter from 0.43-0.79in (11mm-20mm)
- Worm gear design for quick and easy tightening
- Stainless steel construction resists corrosion longer than zinc-plated clamps
- Reusable design
- Sold in packs of 10
- Optional wear-resistant titanium nitride gold coating available for unique engine bay styling
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMCLAMP-WG-20HT
- Product Type: Fabrication
- Clamp Style: High-Torque Worm Gear Clamp
- Material: Stainless Steel
- Spring Material: Steel
- Color: Silver
- Finish: Plain
- Grade Type: Premium
- Minimum Diameter: 0.43in (11mm)
- Maximum Diameter: 0.79in (20mm)
- Band Width: 0.31in
- Recommended Tightening Torque: 35 in-lbs (4 NM)
- SAE Size: 14
- Reusable: Yes
- Includes: (10) Mishimoto High-Torque Worm Gear Clamps, Mishimoto Lifetime Warranty
Frequently Asked Questions
What size hoses, couplers, or pipes does this clamp fit?
This Mishimoto High-Torque Worm Gear Clamp fits hoses, couplers, and pipes with an outer diameter between 0.43 and 0.79 inches (11mm-20mm).
How many clamps are included in this listing?
This clamp is sold in a pack of 10 (Mishimoto High-Torque Worm Gear Clamps).
What material is the clamp made from?
The clamp band is made from stainless steel with a steel spring, finished in a plain silver finish.
What is the recommended tightening torque for this clamp?
Mishimoto recommends a tightening torque of 35 in-lbs (4 NM) for this clamp.
Is this worm gear clamp reusable?
Yes, this clamp is designed to be reusable.
Does this clamp come with a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
