Description

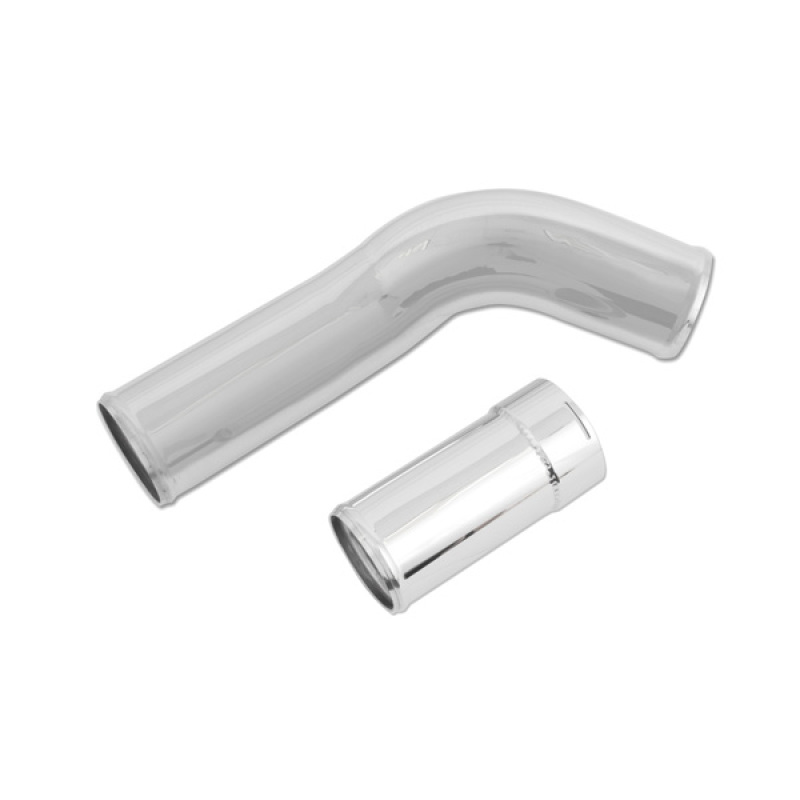

The Mishimoto Hot-Side Intercooler Pipe and Boot Kit (MMICP-F2D-11HBK) replaces the factory hot-side pipe on 2011+ 6.7L Powerstroke trucks with a mandrel-bent, polished aluminum pipe and a CNC-machined quick-disconnect flange that bolts in under one hour. Built to eliminate the restrictive bends found in the stock pipe, this Mishimoto forced induction upgrade is engineered to improve airflow, power, and EGTs on your Ford Super Duty.
As a core piece of your truck’s forced induction system, the factory hot-side pipe can become a bottleneck for boost delivery. Mishimoto engineered this induction pipe kit to remove that restriction, pairing a polished aluminum pipe with silicone boots reinforced with Mishimoto’s DuraCore technology. DuraCore is the synthetic material used as the innermost layer of every Mishimoto silicone Diesel Boot, and it offers superior resistance to heat, pressure, fuel, and oil compared to normal silicone, helping prevent leaks and blowouts and extending boot life. Mishimoto Constant-Tension T-bolt Clamps secure each connection point for accurate, consistent holding power, rounding out a force induction package built for reliability and durability. This hot-side pipe and boot kit is designed to pair well with the Mishimoto 6.7L Powerstroke Performance Primary Radiator for a more complete cooling and induction system upgrade.
Vehicle Applications
This Mishimoto hot-side pipe and boot kit fits 2011+ Ford Super Duty trucks running the 6.7L Powerstroke. On the F-250, coverage includes XL, XLT, Lariat, and King Ranch trims from 2011 through 2026, Platinum from 2013–2026, FX4 from 2011–2014, Base from 2015–2016, Limited from 2018–2024, and Platinum Plus from 2025–2026. The F-350 shares similar coverage with XL, XLT, Lariat, and King Ranch from 2011–2026, Platinum from 2013–2026, and Limited from 2018–2024. Heavier-duty F-450 trucks are covered on XL, XLT, Lariat, King Ranch, and Platinum trims from 2011–2019 (Platinum from 2013–2019), Base from 2011–2016, and Limited from 2018–2019, while the F-550 is covered on XL, XLT, and Lariat from 2011–2019 plus Base from 2011–2016.
Features
- Mandrel-bent, polished aluminum hot-side pipe eliminates restrictive factory bends
- CNC-machined quick-disconnect flange allows for an easy install in under one hour
- Improves airflow, power, and EGTs
- Includes Mishimoto silicone Boots with DuraCore technology for resistance to heat, pressure, fuel, and oil
- Includes Mishimoto Constant-Tension T-bolt Clamps for accurate, consistent holding power
- Kit includes an O-ring and spring clip for the short pipe
- Made in the USA
- Backed by the Mishimoto Lifetime Warranty
- Includes two aluminum Mishimoto M logo badges
Specifications
- Pipe Material: Aluminum
- Pipe Finish: Polished
- Pipe Bend Type: Mandrel
- Coupler Material: Silicone
- Coupler Color: Black
- Clamp Type: T-Bolt
- Clamps Included: Yes

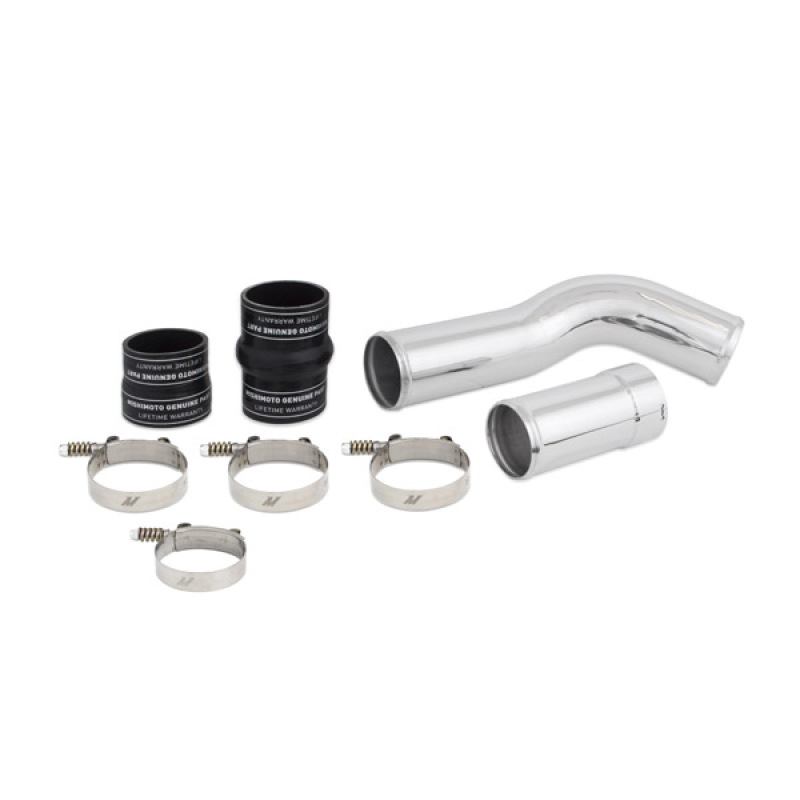

- Kit Includes: (1) Aluminum Intercooler Pipe w/ CNC Quick-Disconnect Flange, O-Ring, and Spring Clip; (1) Aluminum Intercooler Pipe; (2) Silicone Boots with DuraCore Technology; (4) Constant-Tension T-Bolt Clamps; (2) Aluminum Mishimoto M Logo Badges; Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto MMICP-F2D-11HBK hot-side pipe kit fit?
It fits 2011+ Ford F-250, F-350, F-450, and F-550 Super Duty trucks equipped with the 6.7L Powerstroke, across trims including XL, XLT, Lariat, King Ranch, Platinum, Limited, FX4, Base, and Platinum Plus, with year coverage varying by trim as detailed in the Vehicle Applications section.
What is DuraCore technology?

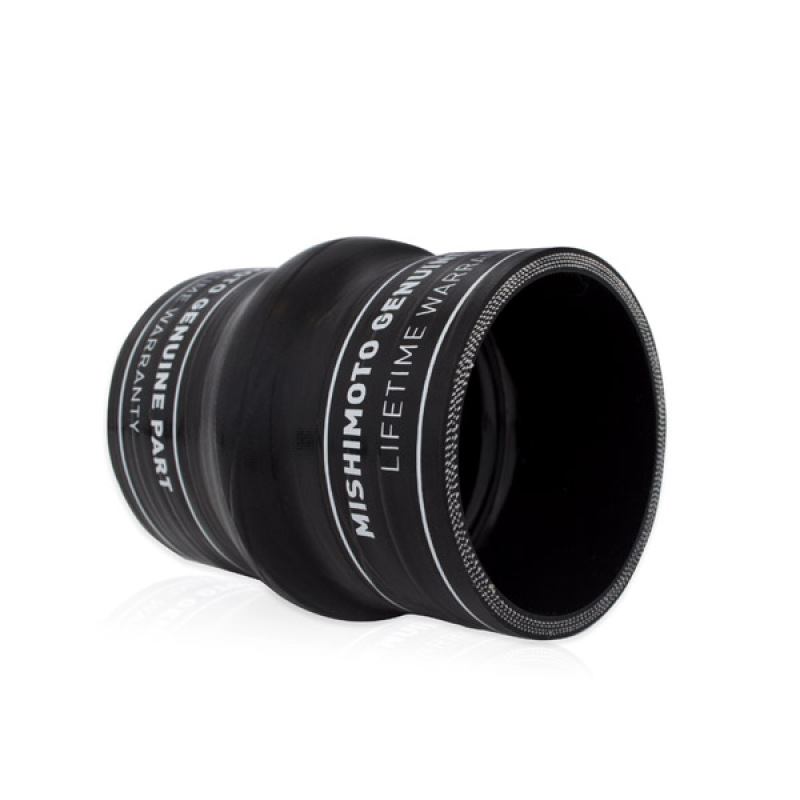

DuraCore is the synthetic material used as the innermost layer of all Mishimoto silicone Diesel Boots. It offers superior resistance to heat, pressure, fuel, and oil compared to normal silicone, which helps prevent leaks and blowouts and extends the life of the boots.
How long does installation take?
The CNC-machined quick-disconnect flange is designed to allow for an easy install in under one hour.
What clamps are included in this kit?
The kit includes Mishimoto Constant-Tension T-bolt Clamps for accurate and consistent holding power.
Is this pipe kit made in the USA?
Yes, the Mishimoto hot-side pipe and boot kit is made in the USA and includes the Mishimoto Lifetime Warranty.
What else is included besides the pipe?
The kit includes an aluminum intercooler pipe with CNC quick-disconnect flange, O-ring, and spring clip; a second aluminum intercooler pipe; two silicone boots with DuraCore technology; four Constant-Tension T-bolt clamps; two aluminum Mishimoto M logo badges; and the Mishimoto Lifetime Warranty.
