Description

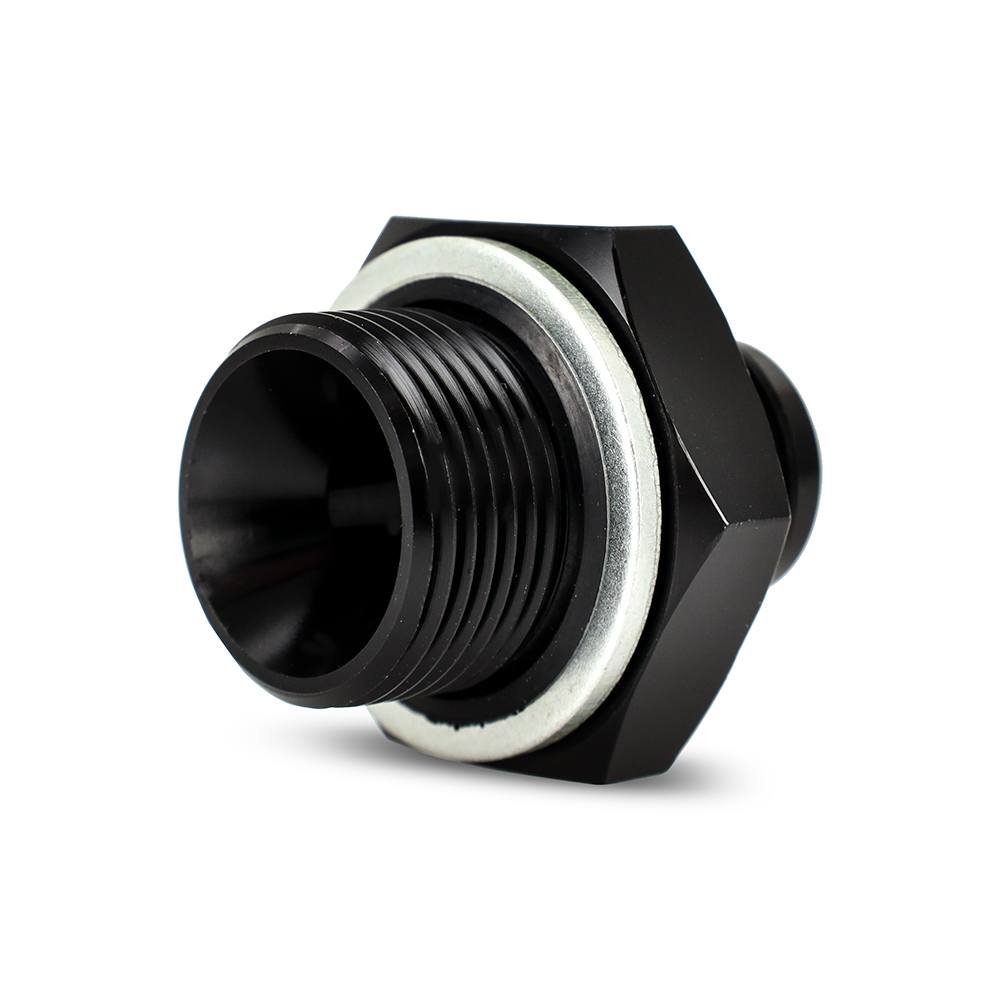

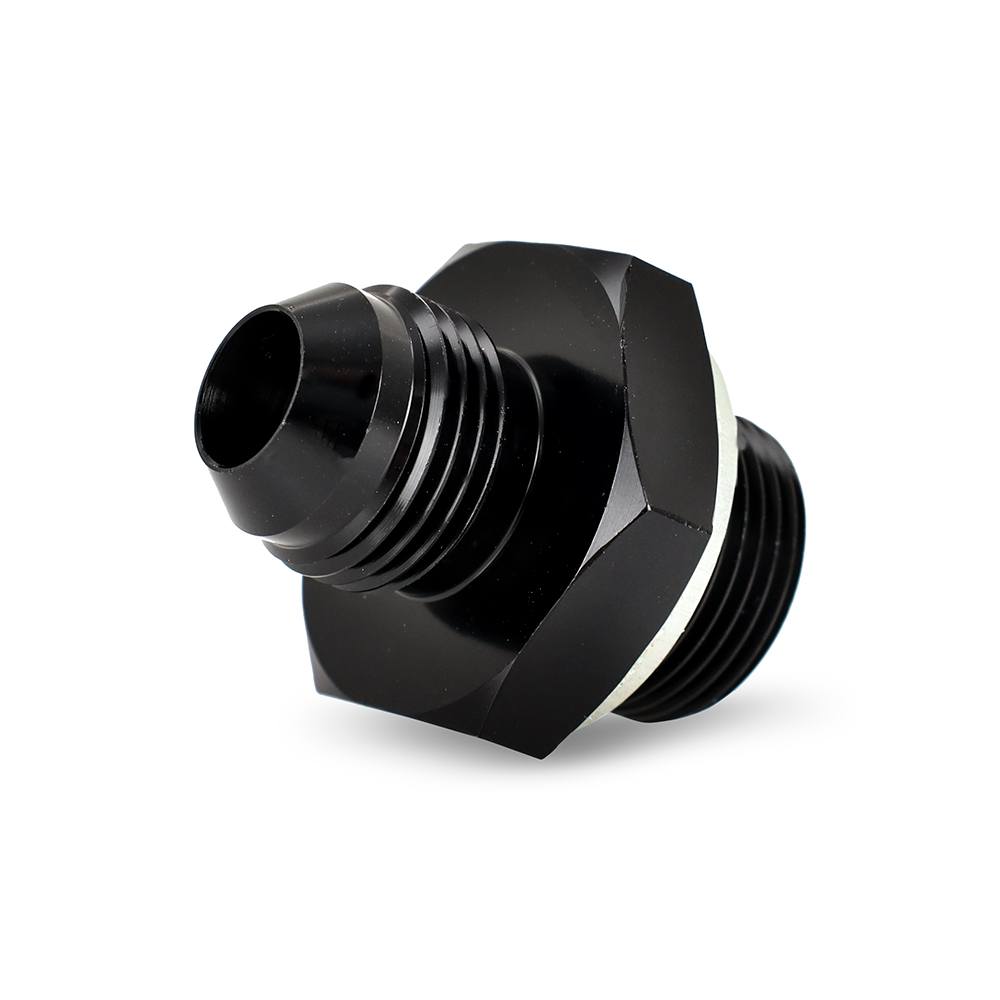

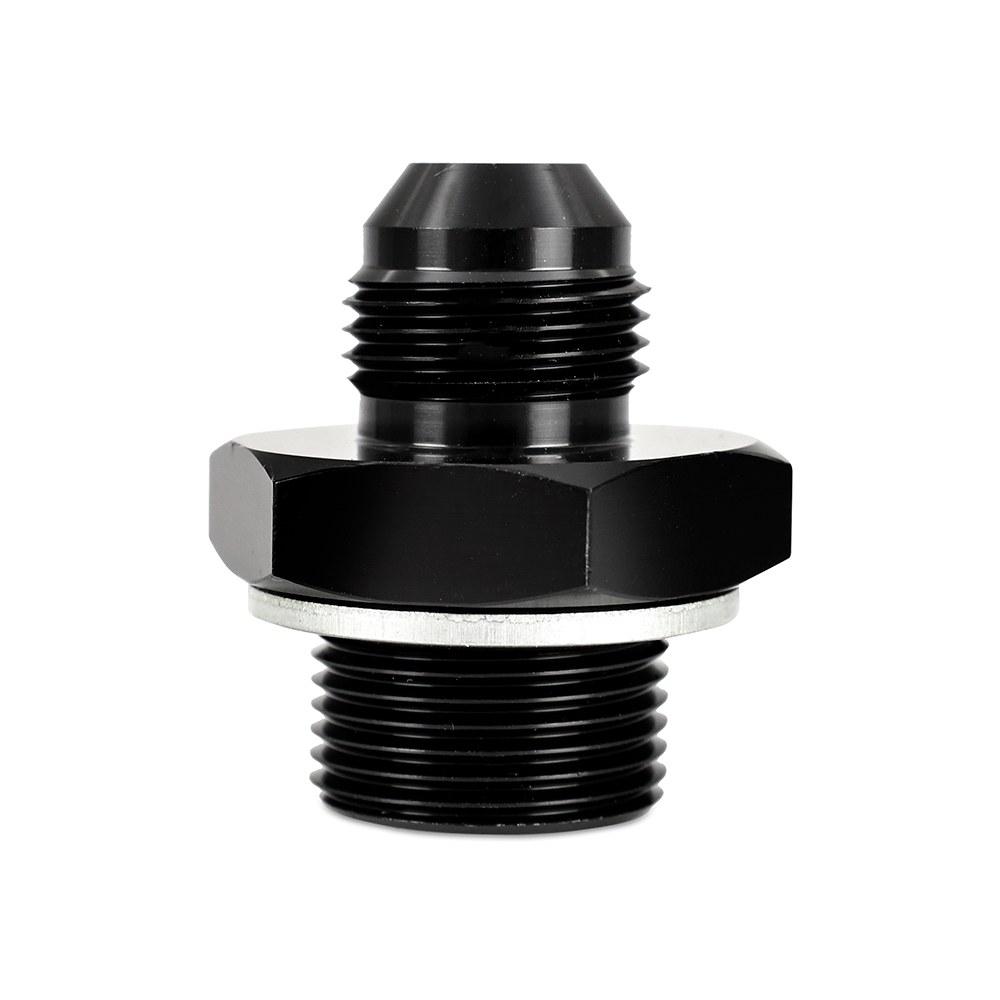

The Mishimoto MMFT-M22-8 is a precision CNC-machined remote oil cooler fitting built to bridge the M22 x 1.5 threaded connection on a Mishimoto Remote Oil Filter Mount to a -8AN oil line. Machined from 6061 aluminum and finished in a black anodized coating, this straight fitting is the connector piece that turns a standalone filter relocation setup into a complete, leak-free oil routing system.
As part of the Mishimoto Fabrication lineup, this fitting exists to solve the real headaches of a tight engine bay: limited ground clearance to the oil filter, the desire to run a larger-format filter, or simply wanting easier access for oil changes. Once the Remote Oil Filter Mount is relocated, fittings like the MMFT-M22-8 give you the flexibility to plumb that mount into oil coolers, oil feed lines, or pressure and temperature sensors. Every fitting in this series is CNC-machined for precision fit, sealed with a robust Dowty seal to prevent leaks under pressure, and anodized for corrosion resistance, so the connection holds up in a harsh underhood environment.
Vehicle Applications
The MMFT-M22-8 is a universal fitting designed to work with any application using Mishimoto’s M22 x 1.5 threaded Remote Oil Filter Mount and other components sharing that same M22 x 1.5 filter housing thread. Rather than being tied to a specific make, model, or year, it’s built to adapt that standard filter housing thread out to a -8AN line, making it a flexible piece for oil filter relocation projects that need an -8AN connection point.
Features
- Provides a connection point for a remote oil filter housing to an engine oil supply, oil coolers, or sensors
- Precise CNC-machined 6061 aluminum construction
- Robust Dowty seal connection for leak-free operation
- Available in multiple -AN sizes for oil line connections and 1/8-in NPT for sensor installation
- Black anodized finish helps prevent corrosion
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMFT-M22-8
- Product Type: Fabrication
- Material: Aluminum
- Color: Black
- Finish: Anodized
- Fitting Angle: Straight
- End 1 Type / Inlet: M22 X 1.5
- End 2 Type / Outlet: -8AN
- Thread Type Standard: Metric
- Purchase Includes: Aluminum Fitting, Mishimoto Lifetime Warranty
Frequently Asked Questions
What does the Mishimoto MMFT-M22-8 fitting connect?
It provides a connection point between a remote oil filter housing and accessories such as oil coolers, oil feed lines, or pressure/temperature sensors, adapting M22 X 1.5 threads to a -8AN line connection.
What material and finish does this fitting use?
It is precision CNC-machined from 6061 aluminum and finished in a black anodized coating for corrosion resistance.
How does the MMFT-M22-8 prevent leaks?
It uses a robust Dowty seal connection for leak-free operation.
What thread sizes does this fitting adapt between?
It adapts M22 X 1.5 threads, found on the Mishimoto filter housing, to a -8AN line connection. The broader fitting range is also available in multiple -AN sizes and 1/8-in NPT for sensors and oil feeds.
Does the MMFT-M22-8 come with a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
What is included when I purchase this fitting?
Purchase includes the aluminum fitting and the Mishimoto Lifetime Warranty.
