Description

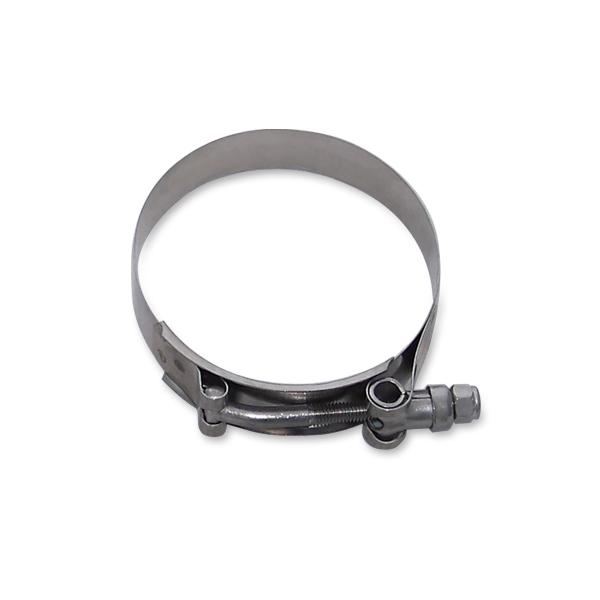

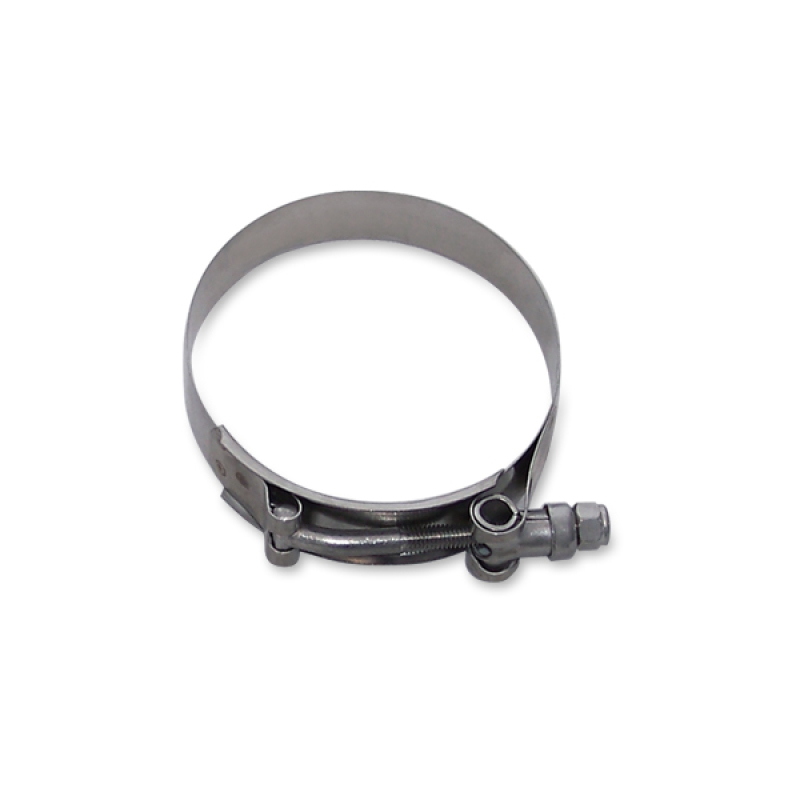

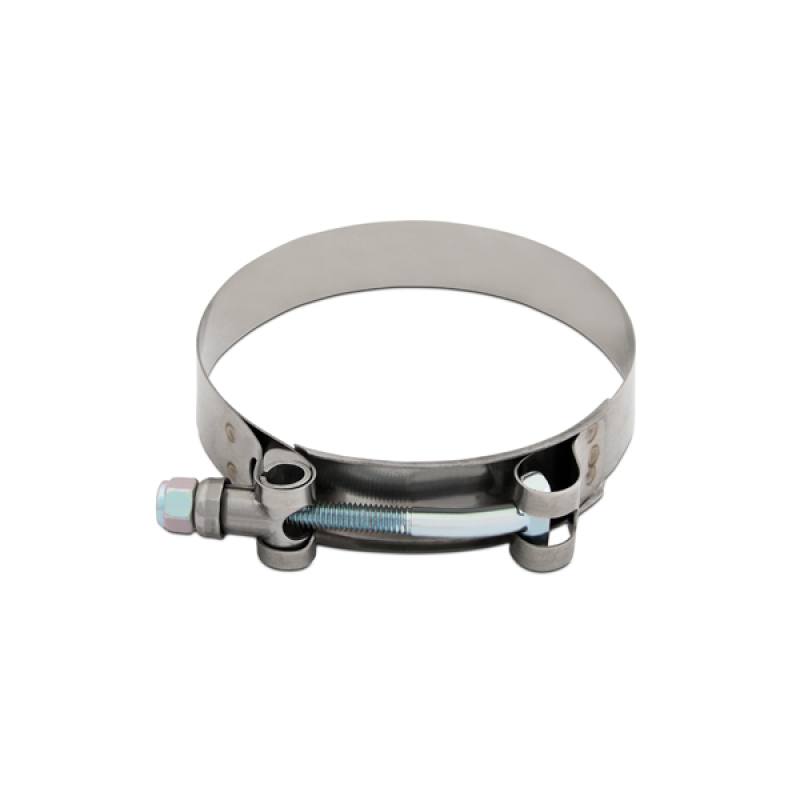

The Mishimoto MMCLAMP-225 is a stainless steel T-bolt clamp engineered for projects that demand more holding power than a standard worm gear clamp can deliver. Sized to secure pipes, couplers, and hoses measuring between 2.12″ and 2.44″ in diameter, this clamp pairs a robust T-bolt band with an included self-locking nut to stay tight even under vibration.
As part of the Mishimoto Fabrication lineup, this T-bolt clamp is built from the same stainless steel used in Mishimoto’s worm gear clamps, giving it corrosion resistance that outlasts zinc-plated clamps. The T-bolt design provides a strong and secure grip, distributing clamping force around the band for a tighter hold than a typical screw-style clamp, while the self-locking nut prevents the clamp from loosening as it’s exposed to movement and vibration. Because this clamp is reusable, it can be removed and reinstalled as fabrication needs evolve, and every Mishimoto T-bolt clamp is backed by the Mishimoto Lifetime Warranty.
Vehicle Applications
The MMCLAMP-225 is a universal fabrication component rather than a vehicle-specific part, making it a fit for any project where a hose, coupler, or pipe with an outer diameter between 2.12″ and 2.44″ needs to be clamped securely. This makes it a practical choice for custom intercooler piping, silicone coupler connections, and other fabrication work where a standard worm gear clamp isn’t strong enough.
Features
- Securely clamps pipes, couplers, and hoses with an outer diameter from 2.12″ to 2.44″
- T-bolt design provides a strong and secure grip
- Included self-locking nut prevents loosening with movement and vibration
- Stainless steel construction resists corrosion longer than zinc-plated clamps
- Reusable clamp design
- Clamps sold individually
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMCLAMP-225
- Product Type: Fabrication
- Type: T-Bolt
- Clamp Style: T-Bolt Clamp
- Material: Stainless Steel
- Spring Material: Steel
- Grade Type: Premium
- Color: Silver
- Finish: Plain
- Size: 2.25 in

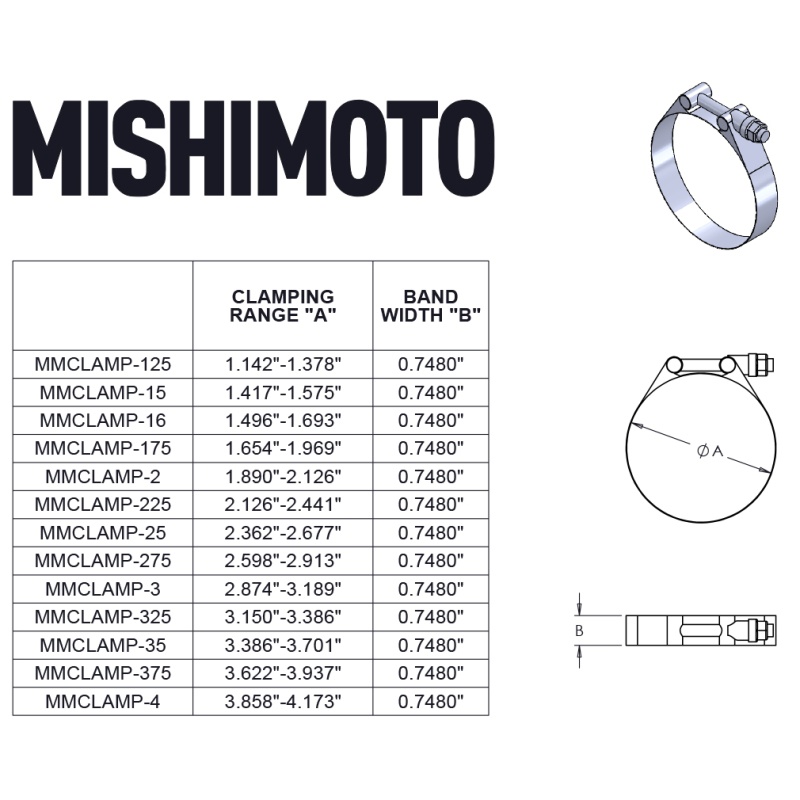

- Maximum Diameter: 2.44 in
- Minimum Diameter: 2.12 in
- Band Width: 0.75 in
- Recommended Torque: 27 in-lbs (3 NM)
- SAE Size: 40
- Reusable: Yes
- Includes: (1) Mishimoto Stainless Steel T-Bolt Clamp, Mishimoto Lifetime Warranty
Frequently Asked Questions
What diameter range does the Mishimoto MMCLAMP-225 fit?
It secures pipes, couplers, and hoses with an outer diameter from 2.12″ to 2.44″.
What is the clamp made of?
It is made from stainless steel, the same material used in Mishimoto’s worm gear clamps.
Does it include a locking nut?
Yes, a self-locking nut is included to prevent the clamp from loosening due to movement and vibration.
Is this clamp reusable?
Yes, the MMCLAMP-225 is a reusable clamp.
What is the recommended tightening torque?
The recommended tightening torque is 27 in-lbs (3 NM).
Are these clamps sold individually or in sets?
Mishimoto T-bolt clamps are sold individually.
